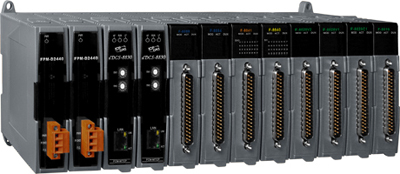

| Intelligent Remote Redundant Ethernet I/O expansion unit |
|
| |
| ~ NEW ~ |
 |
| Model: iDCS-8830 |
|
|
 |
- Support Modbus/TCP communication protocol at Ethernet port.
- Support DI/DO/AI/AO/Counter/Frequency modules
- Support HART protocol
- Support redundant communication and power modules
- Supports redundant I/O modules

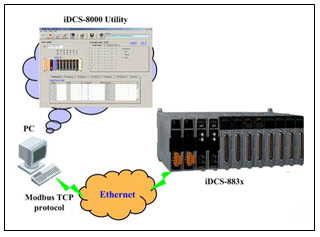

- I/O configurable via the Ethernet (Using the iDCS-8830 Utility)
- Supports Hot-swap and auto configuration
- Supports power on value and safe value for analog/digital output module
- Allows maximum of 4 clients access simultaneously
- Maximum 255 digital I/O in one iDCS-8830
- Maximum 64 analog output in one iDCS-8830
- Maximum 128 analog input in one iDCS-8830
- Maximum 128 analog input in one iDCS-8830
|
|
|
| |
 |

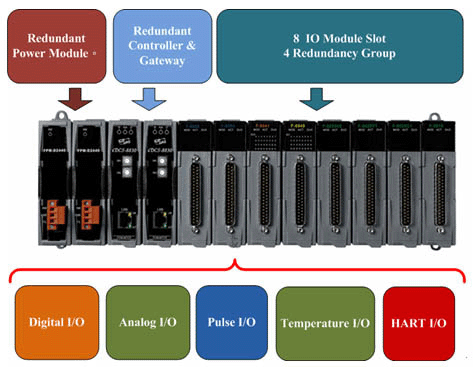

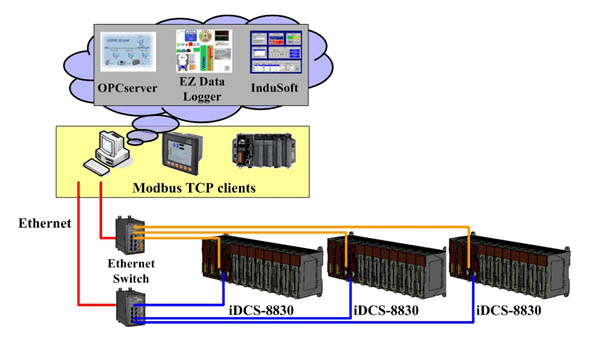

The iDCS-8830 remote redundant IO unit is available in a dual redundant configuration with Modbus TCP protocol. This consists of two communication processors installed in the same backplane. In addition to the communication processors and powers, up to 8 IO modules can be installed in the backplane. These IO modules can be configured as individual IO modules or configured as redundant IO modules. There is up to four groups of redundant I/O modules can be used in the iDCS-8830. When one of modules in the iDCS-8830 has a failure, the other backup module would take care of the work seamlessly. That can guarantee the reliability of the system. The iDCS-8830 offer redundancy options for various functions- ranging from power redundancy to I/O redundancy. Besides, there are most of I/O modules, such as DI, DO, AI, AO, PI, PO, HART and etc, can be used in the iDCS-8830. Therefore, the iDCS-8830 is fit for the high safety applications especially in DCS applications. Moreover, due to the open Modbus TCP protocol, most SCADA software built-in Modbus communication protocol can easily and quickly integrate the iDCS-8830 to the SCADA software as data acquisition and monitor to apply to environment monitoring, power management, factory automation, etc. With the above features, the iDCS-8830 is a high safety, reliability remote I/O system. |
 |
| |
 |

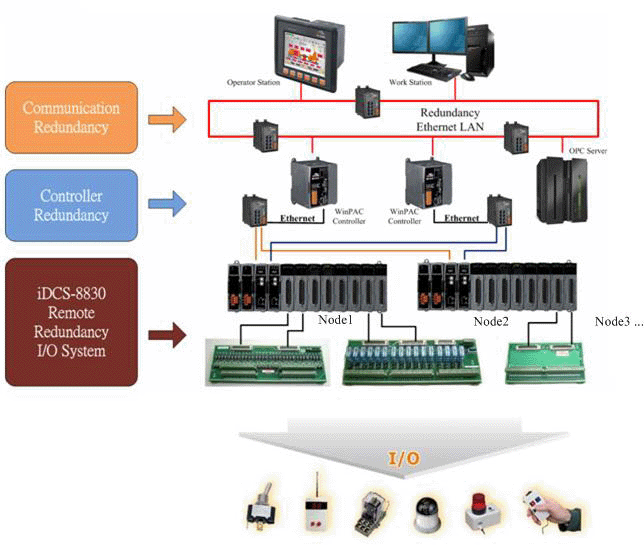

| ● PAC or PLC system with I/O Redundancy |
 |
| ● Redundancy system |
 |
|
| |
 |
- On-line configuration via Ethernet
- Configuration export/import
- Configure I/O modules parameters
- Auto scan/monitor I/O data and status
- Digital/Alanog I/O output control
- Power on value, safe value setting
- Event datalo
|
 |
|
| |
 |
| CPU module |
| CPU |
80186 or compatible (16-bit and 80MHz) |
| SRAM |
512KBytes |
| Flash |
512 KB; Erase unit is one sector (64K bytes); 100,000 erase/write cycles. |
| EEPROM |
16 KB
Data retention: 40 years; 1,000,000 erase/write cycles. |
| 64-bit Hardware Serial Number |
Yes |
| Built-in Watchdog Timer |
Yes (0.8 second) |
| Short Circuit Protection |
Yes |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| Communicate Interface |
| COM 1 |
RS-232 (to update firmware) |
| CAN Port |
Internal communication with the CAN I/O modules |
| Ethernet Port |
10/100Base-TX Ethernet Controller
(Auto-negotiating, Auto_MDIX, LE indicator) |
| I/O Expansion Slots |
| Slot Number |
8 |
| Hot Swap |
Yes |
| Auto Configuration |
Yes |
| Power |
| Protection |
Power reverse polarity protection |
| Isolation |
1 kV |
| Power requirement |
+10 ~ +30 VDC |
| Power supply |
40 W |
| Mechanical |
| Dimensions (W x L x H) |
374 x 132 x 100 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10~ 90%, Non-condensing |
|
| |
 |
| iDCS-8830 |
Intelligent Remote Redundant Ethernet I/O expansion unit including 1 power modules(FPM-D2440), 1 communication modules(FCM-MTCP) |
|
Note: Redundant power function needs to order another FPM-D2440 module
Redundant Communication function needs to order another FCM-MTCP module |
|
 |
Type |
Name |
Description |
| Rack mounting kit |
FRMK |
Install iDCS-8830 |
| Communication Module |
FCM-MTCP |
Support Modbus TCP protocol, support redundant function, FG-3 kV |
| Power Module |
FPM-D2440 |
INPUT DC 24V, 35W@5V, 120W@24V, support redundant function |
| Digital |
DI |
F-8040 |
32-ch, Single/Duplex, 24 VDC in 5.1mA, Isolated, one COM for all DI, LED display |
| Terminal |
DN-DI-32F |
DI, Single/Duplex, 32-ch, surge protection |
| DO |
F-8041 |
32-ch, Single/Duplex, 100mA/channel, Isolated, one COM for all DO, LED Display |
| F-8041P |
PO 16 channel One-Shot/Continue/PWM |
| Terminal |
DN-DO-16DR-A |
DO, Single/Duplex, 16-ch(ch1~16), relay dry contact |
| DN-DO-16FRW-A |
DO, Single/Duplex, 16-ch(ch1~16), relay wet contact |
| DN-DO-16DR-B |
DO, Single/Duplex, 16-ch(ch17~32), relay dry contact, included CA-2520D cable |
| DN-DO-16FRW-B |
DO, Single/Duplex, 16-ch(ch17~32), relay wet contact, included CA-2520D cable |
| Analog |
AII |
F-8017C1 |
8-ch, Single/Duplex, INPUT 4mA~20mA, terminating/originating, Isolated, one COM for all AI |
| F-8017C2 |
16-ch, Single/Duplex, INPUT 4mA~20mA, terminating, Isolated |
| AIV |
F-8017V |
8-ch, Single/Duplex, INPUT INPUT-/+5V, -/+10V, 0~5V 0~10V, Isolated |
| F-8017V2 |
Reserved |
| AOI |
F-8028C |
8-ch, Single/Duplex, Output 4mA~20mA, Originating, Isolated, one P.COM for all AO |
| F-8028CH |
8-ch, Single/Duplex, Output 4mA~20mA, Originating, Isolated, support HART function |
| AOV |
F-8028V1 |
8-ch, Single/Duplex, Output 1~5V, Isolated, one COM for all AO |
| F-8028V2 |
8-ch, Single/Duplex, Output -10~10V, Isolated, one COM for all AO |
| AOI/V |
F-8028CV |
Reserved |
| Terminal |
DN-AIO-08 |
AOI, AOV, AII, AIV, Single/Duplex, 8-ch |
| DN-AIO-08F |
AOI, AOV, AII, AIV, Single/Duplex, 8-ch, surge protection |
| DN-AIO-16 |
AOI, AOV, AII, AIV Single/Duplex, 16-ch |
| DN-AIO-16F |
AOI, AOV, AII, AIV Single/Duplex, 16-ch, surge protection |
| Temperature |
RTD |
F-8015 |
8-ch, Single/Duplex, RTD sensor Pt100, Pt1000, JPt100, Isolated, one COM for /bx |
| Terminal |
DN-RTD-08 |
RTD, Single/Duplex, 8-ch |
| TC |
F-8019 |
8-ch, Single/Duplex, Thermocouple sensor (J, K, T, E, R, S, N, C), Isolated |
| Terminal |
DN-TC-08 |
Thermocouple, Single/Duplex, 8ch (support CJC), Isolated |
| Pulse |
PI |
F-8084 |
8-ch, Single/Duplex, frequency 0~100KHz, Isolated, one COM for all PI |
| Terminal |
DN-PI-08 |
PI, Single/Dulex ,8ch |
| PO |
F-8088 |
Reserved |
| Blank I/O module |
4SIPP-801W-CAG |
Blank I/O Module |
| Terminal Board |
DN-37-A |
I/O Connector Block with DIN-Rail Mounting, one 37-pin Male-Female D-sub cable 1M, Single/Duplex |
| Cable |
CA-2520D |
2m 25-pin Male-Male D-sub flat cable |
| CA-03 |
3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464 |
| CA-05 |
5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464 |
|
| |
 |
| KA-52F |
AC100~250V input, DC 24V/1A output, flat type power supply |
| DIN-KA52F |
KA-52F with DIN-Rail mount |
| DP-665 |
AC 85 ~ 270 V input, DC 24V/1.7A and 5V/0.5A output power supply |
| DP-660 |
24 V/1.7 A, 5 V/0.5 A Power Supply |
| DP-1200 |
24V/5A Power Supply |
|
| |
|
|
| |
|
|
