| DN-TC-08 Terminal Board |
Type |
Description |
Apply To |
DN-TC-08 |
8-ch Thermocouple, Single/Duplex, one CJC |
F-8019 |
|
|
| |

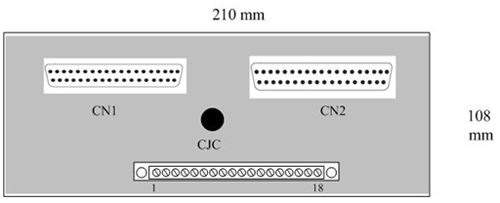

| Appearance |
 |
| |
| Pin Assignment |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
SG |
0+ |
0- |
1+ |
1- |
2+ |
2- |
3+ |
3- |
4+ |
4- |
5+ |
5- |
6+ |
6- |
7+ |
7- |
FG |
|
| |
| Specification |
| I/O range |
| Channel |
8 |
| TC Input |
J, K, T, E, R, S, B, N, C |
| Accuracy |
| CJC compensation |
±0.7 °C (-30 ~ 100 °C) |
| Dimension |
| W x L x H (mm) |
118 mm x 220 mm x 60 mm |
| Mounting |
| Din Rail |
35 mm |
| Environment |
| Ambient Temperature |
-25 ~ 75 °C |
| Humidity |
5 ~ 95%, Non-condensing |
|
| |

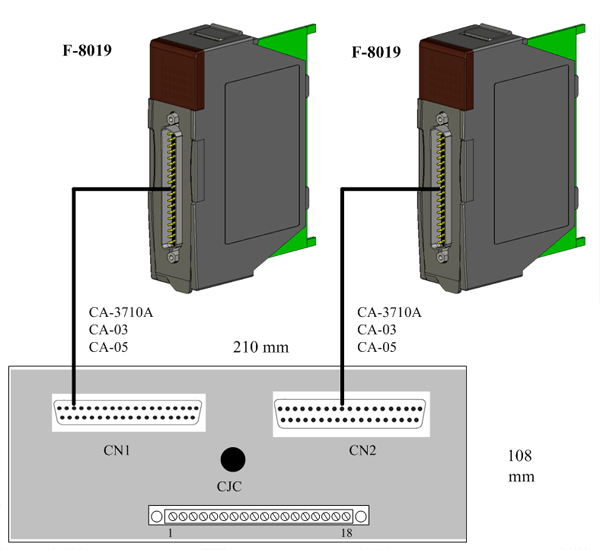

| IOM Redundancy Connection |
 |
| |
| I/O Wire Connection |
 |
| |
|
|
| |
|
|
