| WP-8121-CE7/WP-8421-CE7/WP-8821-CE7 |
|
| |
| ~ NEW ~ |
|
 |
 |
Model: WP-8121-CE7 |
Model: WP-8421-CE7 |
| |
| |
|
 |
Model: WP-8821-CE7 |
|
|
 |
- Cortex-A8, 1GHz CPU
- 512 MB DDR3 and 256 MB Flash
- Windows CE 7.0 Professional
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Slots
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +75°C
|
|
|
| |
 |

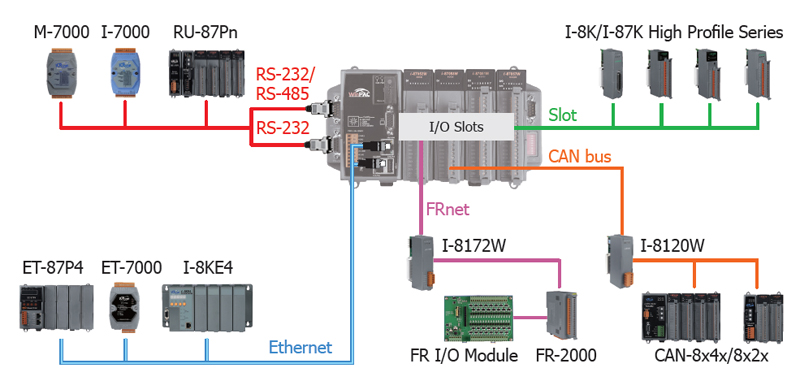

The WP-8000-CE7 is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K
(parallel-type) and I-87K (serial-type) series I/O modules.
Its operating system,Windows CE 7.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 7.0 in the WP-8000-CE7 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Visual C++, SCADA software, Soft PLC …etc. |
| |
 |
 |
- Support PC based software: Visual Studio.NET
- Web server, FTP server, Telnet server
|
|
| |
 |
 |
| |
 |
| Models |
WP-8121-CE7 |
WP-8421-CE7 |
WP-8821-CE7 |
| System Software |
| OS |
Windows CE 7.0 |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script),
Embedded SQL server |
| SDK Provided |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| CPU Module |
| CPU |
Cortex-A8 (1.0 GHz) |
| DDR3 SDRAM |
512 MB |
| MRAM |
128 KB |
| Flash |
256 MB |
| EEPROM |
16 KB |
| microSD |
microSD slot with one microSD card (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA Resolution |
800 x 600, 1024 x 768 |
| Ethernet |
RJ-45 x 2, 10/100/1000M Base-TX |
| USB 2.0 |
2 |
| COM 0 |
Internal communication with the high profile I-87K series modules in slots |
| COM 1 |
RS-232 (RxD, TxD and GND); Non-isolation |
| COM 2 |
RS-485 (Data+, Data-);self-tuner ASIC inside; 3000 VDC isolated |
| COM 3 |
- |
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); Non-isolation |
| COM 4 |
- |
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation |
| I/O Expansion Slots |
| Slot Number |
1 slot |
4 slots |
8 slots |
| (For High Profile I-8K and I-87K Modules Only) |
| Mechanical |
| Dimensions (W x L x H) |
95 mm x 132 mm x 111 mm |
231 mm x 132 mm x 111 mm |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.0A, 5V supply to CPU and backplane, 0.6A, 5V supply to I/O expansion slots, total 8 W |
1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W |
1.2A, 5V supply to CPU and backplane, 4.8A, 5V supply to I/O expansion slots, total 30 W |
| Consumption |
7.3 W (0.3 A @ 24 VDC) |
9.1 W (0.38 A @ 24 VDC) |
9.6 W (0.4 A @ 24 VDC) |
|
| |
 |
| WP-8121-CE7 CR |
Standard WinPAC-8000-CE7 with 1 I/O Slots (RoHS) |
| WP-8421-CE7 CR |
Standard WinPAC-8000-CE7 with 4 I/O Slots (RoHS) |
| WP-8821-CE7 CR |
Standard WinPAC-8000-CE7 with 8 I/O Slots (RoHS) |
|
| |
 |
| SDR-240-24 |
24 V/10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function |
| MDR-20-24 |
24 W Single Output Industrial DIN Rail Power Supply |
| DIN-KA52F |
24 V/1 A Power Supply (DIN-Rail mounting) |
| DR-120-24 |
24V/5 A, 120 W Single Output Industrial DIN Rail Power Supply |
|
| |
|
|
| |
|
|
