Output |
DC VOLTAGE |
24 V |
RATED CURRENT |
10 A |
CURRENT RANGE |
0 ~ 10 A |
RATED POWER |
240 W |
PEAK CURRENT |
15 A |
PEAK POWER Note.6 |
180 W (3 sec.) |
RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
VOLTAGE ADJ. RANGE |
24 ~ 28 V |
VOLTAGE TOLERANCE Note.3 |
±1.0% |
LINE REGULATION |
±0.5% |
LOAD REGULATION |
±1.0% |
SETUP, RISE TIME |
1500ms, 60ms/230 VAC
3000ms, 60ms/115 VAC at full load |
HOLD UP TIME (Typ.) |
20ms/230 VAC
20ms/115 VAC at full load |
Input |
VOLTAGE RANGE |
88 ~ 264 VAC
124 ~ 370 VDC |
FREQUENCY RANGE |
47 ~ 63Hz |
POWER FACTOR (Typ.) |
0.93/230 VAC
0.99/115 VAC at full load |
EFFICIENCY (TyINPUT p.) Note.8 |
94% |
AC CURRENT (Typ.) |
2.6 A/115 VAC
1.3 A/230 VAC |
INRUSH CURRENT (Typ.) |
33 A/115 VAC
65 A/230 VAC |
LEAKAGE CURRENT |
<1 mA/240 VAC |
PROTECTION |
OVERLOAD |
Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery |
>150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds |
OVER VOLTAGE |
29 ~ 33V |
Protection type : Shut down o/p voltage with auto-recovery |
OVER TEMPERATURE |
95°C ±5°C (TSW : detect on heatsink of power switch) |
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
FUNCTION |
DC OK REALY CONTACT
RATINGS (max.) |
60 VDC/0.3A, 30VDC/1A, 30VAC/0.5A resistive load |
ENVIRONMENT |
WORKING TEMP. Note.5 |
-25 ~ +70°C (Refer to "Derating Curve") |
WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
STORAGE TEMP., HUMIDITY |
-40 ~ +85°C , 10 ~ 95% RH |
TEMP. COEFFICIENT |
±0.03%/°C (0 ~ 50°C) |
VIBRATION |
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL508, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC |
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH |
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47, GL approved |
OTHERS |
MTBF |
169.3K hrs min. MIL-HDBK-217F (25 °C) |

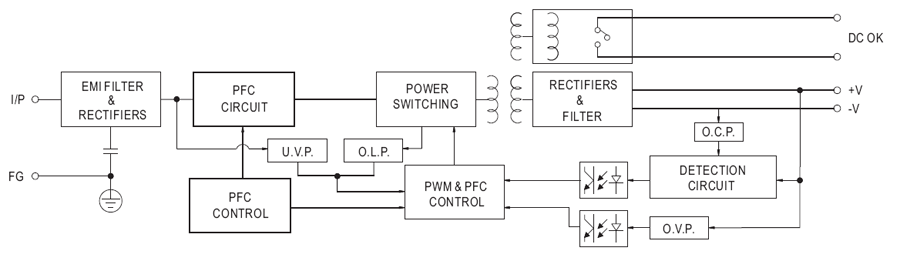

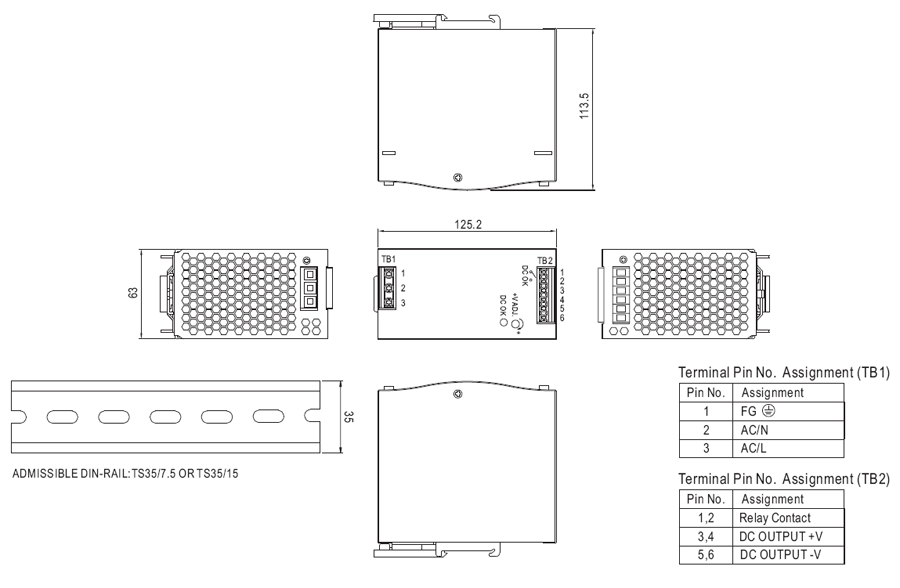

DIMENSION |
63*125.2*113.5mm (W*H*D) |
PACKING |
1.03Kg; 12pcs/13.4Kg/1.06CUFT |
NOTE |
- All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- Tolerance : includes set up tolerance, line regulation and load regulation.
- The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 3 seconds max., please refer to peak loading curves.

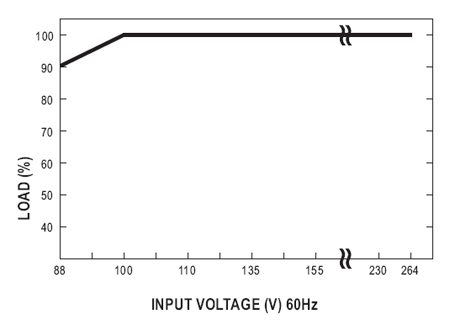

- Derating may be needed under low input voltage. Please check the derating curve for more details.
|
