New Product: I-2533CS-A/B, A CAN to One-wire Single-mode Fiber Bridge
- The I-2533CS-A/B is a type of CAN-to-Fiber Bridge that can be used to establish a connection between two CAN networks. It supports Wavelength Division Multiplexing (WDM) technology so that only a single fiber cable is needed for transmitting bi-directional CAN data. As the I-2533CS-A and I-2533CS-B must be paired because of hardware limitations, this means that the cost of deploying fiber cable can be effectively reduced.

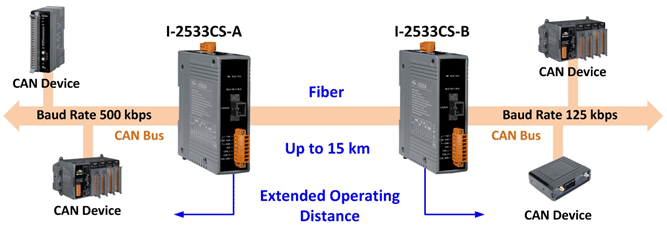

Compared with other CAN/Fiber converters, the I-2533CS-A/B has three significant features. First, the I-2533CS-A/B can be used to overcome the transmission distance limitations of the CAN Bus. Consequently, the transmission distance can be extended to up to 15 km using fiber cable, regardless of the CAN baud rates used in the system. - Second, noise and error signals between two CAN networks can be effectively isolated, meaning that any disturbance or interference on the CAN Bus side of the I-2533CS-A/B will not affect the operations of the fiber side.

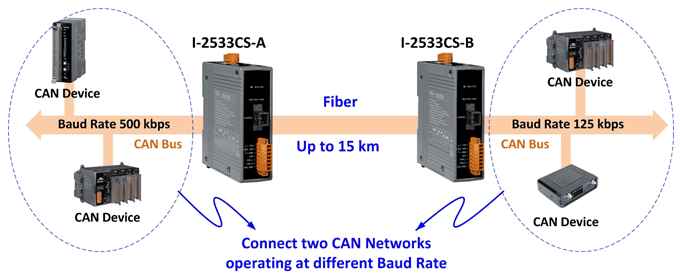

- Finally, the I-2533CS-A/B includes a rotary switch that can be used to configure the CAN baud rates, which means that two systems that use different CAN baud rates can still communicate with each other. In order to reduce the bus loading for systems that use low-speed baud rates, CAN message filters can be set on the I-2533CS-A/B that allow any CAN messages which are extraneous to the system to be dropped.
- In addition to the hardware configuration method, a software configuration utility for the I-2533CS-A/B is also provided. This utility allows users to read the firmware version and the status of the rotary and DIP switches, as well as configure the CAN baud rate, the CAN sample point, and the CAN message filters, offering greater flexibility and functionality for CAN Bus applications.
- Features:
- Fully compatible with the ISO 11898-2 standard
- Supports both CAN 2.0A and CAN 2.0B specifications
- Embedded NXP TJA1042 CAN transceiver
- 2500 Vrms isolation on the CAN side
- 3 kV galvanic isolation between the power supply and the CAN channel
- 120 Ω terminal resistor selectable via DIP switch
- CAN baud rate configurable via rotary switch
- Fiber Type: SC, Single mode, 100 Base-FX
- Wavelength:
- o Tx: 1310 nm, Rx: 1550 nm for I-2533CS-A
- o Tx: 1550 nm, Rx: 1310 nm for I-2533CS-B
- Fiber Cable: 8.3/125, 8.7/125, 9/125 or 10/125 μm
- Max. transmission distance up to 15 km at any CAN baud rate
- Removable terminal block, easily mounted on a DIN-Rail
- Allows user-defined CAN baud rates
- Utility for CAN message filter configuration
- Supports CANopen/DeviceNet/J1939 and other standard protocols that follow the ISO 11898-2 specification.
-
Comparison of CAN to Fiber Products:
Model Name I-2533CSI-2533CS-A
*note1I-2533CS-B
*note1I-2533I-2532CAN Interface CAN Baud Range 10 k to 1 M bps10 k to 1 M bps10 k to 1 M bps10 k to 1 M bps10 k to 500 k bpsFiber Interface Fiber Mode Single-modeSingle-modeSingle-modeMulti-modeMulti-modeConnector SC DuplexSCSCSTSTWave Length (nm) 1310Tx: 1310
Rx: 1550Tx: 1550
Rx: 1310850850Fiber Cable (μm) 8.3/125, 8.7/125, 9/125 or 10/1258.3/125, 8.7/125, 9/125 or 10/1258.3/125, 8.7/125, 9/125 or 10/12550/125, 62.5/125 or 100/14062.5/125Propagation Delay 190 μs *note2190 μs *note2190 μs *note2250 μs *note2125 ns @ any baudTransmission Distance (km) 30151521.4Others Extend CAN bus working distance YesYesYesYesNoRepeat CAN bus signal YesYesYesYesNoIntegrate two CAN networks at different baud rate YesYesYesYesNoCAN bus filter YesYesYesYesNo
The I-2533CS-A and I-2533CS-B are a couple and must be used in pairs in CAN Bus applications.
*note2:
The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x1234567 and 8 bytes of data with a value of 0xFF. - For more information about the products described above, please refer to the following websites:
I-2533CS/I-2533CS-A/I-2533CS-B: http://www.icpdas.com/products/Remote_IO/can_bus/i-2533cs.htm
I-2533: http://www.icpdas.com/products/Remote_IO/can_bus/i-2533.htm
I-2532: http://www.icpdas.com/products/Remote_IO/can_bus/i-2532.htm
