I-7565-H1 / I-7565-H2 ~ NEW ~
High Performance Intelligent USB to CAN Converter



I-7565-H1
I-7565-H2
I-7565-H1
I-7565-H2


I-7565-H1
I-7565-H2




I-7565-H1 and I-7565-H2 are the high performance intelligent USB to CAN converters with one and two CAN channels separately. They provide faster CAN bus communication performance than I-7565. Both I-7565-H1 and I-7565-H2 support CAN2.0A/2.0B protocol and different baud rates from 5 Kbps to 1 Mbps. The important feature of I-7565-H1/H2 is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565-H1/H2 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565-H1/H2. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.

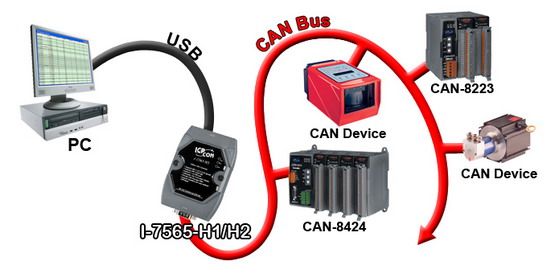

The following is the application structure for these two USB/CAN modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565-H1/H2 Converter. These modules let users to communicate with CAN devices easily from PC with USB interface.
¡@¡@¡@¡@¡@(1) I-7565-H1: High Performance intelligent USB to 1- port CAN bus Converter.
¡@¡@¡@¡@¡@(2) I-7565-H2: High Performance intelligent USB to 2- port CAN bus Converter.


Application of I-7565-H1/H2

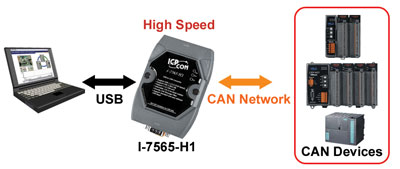

I-7565-H1 Application

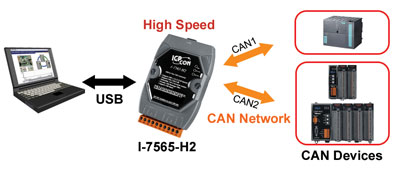

I-7565-H2 Application

2500Vrms isolation on CAN side
The CAN port of I-7565-H1/H2 is isolated with 2500Vrms. This isolation can protect the local devices from the damage signal coming from CAN network.

Watchdog inside
The I-7565-H1/H2 Watchdog is a hardware reset circuit to monitor the operation status of I-7565-H1/H2. When working in a harsh or noisy environment, the I-7565-H1/H2 may be down by the external signal. The circuit may let the I-7565-H1/H2 work continuously and never halt.

Power / Communication / Error indicator display
There are three indicators on the I-7565-H1/H2.The power indicator can help user to check whether the I-7565-H1/H2 is standby. The communication indicator is used to show whether the I-7565-H1/H2 is transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7565-H1/H2.







•Factory Automation
•Building Automation
•Home Automation
•Control System
•Monitor System
•Vehicle Automation







  • RoHS Design
  • Fully compliant with USB 1.1/2.0(Full Speed)
  • Fully compatible with the ISO 11898-2 standard
  • Support both CAN2.0A and CAN2.0B
  • No external power supply (powered by USB)
  • Integrated with one or two CAN bus channels
  • Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
  • Support CAN bus acceptance filter configuration
  • Time-stamp of CAN message with at least ¡Ó1ms precision
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN bus communication testing conveniently
  • Provide API library for users' program development easily
  • Provide "Hardware Serial Number" to protect users' program
    (For FW v1.04 and libary v1.07 or newer) (NEW)
  • Provide ¡§Listen Only Mode¡¨ function
    (For FW v1.05 and Utility v1.09 or newer)
    (NEW)
  • Provide "CAN Error Frame" Information
    (For FW v1.07 or newer) (NEW)
  • Provide "Adjustable Bit-Timing of CAN Baud (Tseg2)" function
    (For FW v1.07 or newer) (NEW)
  • Increase HWSendTimer Number from 1 set to 5 sets and add ¡§AddMode¡¨ and ¡¨AddVal¡¨ parameter for HWSendTimer
    (For FW v1.05 or newer) (NEW)
  • Add ¡§User Defined ISR¡¨ interrupt function
    (For API v1.08 or newer) (NEW)
  • Add Driver Signature Certificate for Win7 x64 platform in driver v1.2
  • Provide PWR / RUN / ERR indication LED
  • Built-in jumper to select 120 ohm terminal resister
  • Max data flow for CAN Channel: 3000 fps ( depends on users¡¦ PC hardware performance )
  • The CAN buffer is 256 data frames for I-7565-H1 and 128 data frames in each CAN port for I-7565-H2.
  • Watchdog inside
  • Driver supported for Windows 2000/XP, Win7(32 & 64 bit), Linux and WinCE (available soon)

Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of I-7565-H1/H2.

Provide CAN I/O demos for CAN-2053C, CAN-2054C, CAN-2057C, ...









In order to apply the I-7565-H1/H2 to CAN network with NI LabVIEW software, we provide a LabVIEW 8.x library and demo for the purpose. It is very useful to develop the CAN-relative application in NI LabVIEW environment by using I-7565-H1/H2. It is easy to use and can help user to rapidly reduce their program development cycle. If users want to develop a LabVIEW industrial application with CAN network, the LabVIEW library and demo of I-7565-H1/H2 is very helpful.








  • Provide CAN bus user-defined baud rate / acceptance filter configuration
  • Easily transmit/receive CAN messages for testing and display the time-stamp of each received CAN message
  • Provide saving the CAN message as ¡§TXT¡¨ file for data log
  • Provide sending CAN message by using the internal timer of module for high precision transmission
  • Check / Reset module status remotely and get current CAN bus message flow
  • Users can develop own program by API library quickly and easily
  • Provide ¡§CAN bus Flow Trend¡¨ screen in utility
    (For v1.09 or newer) (NEW)
  • Provide ¡§Scroll¡¨ and ¡§OverWrite¡¨ mode for CAN RecvMsg Table in utility
    (For v1.09 or newer) (NEW)
  • Provide "CAN-ID Tagging" function (replace the CAN-ID by a symbolic name) in OverWrite Mode.
    (For v1.10 or newer) (NEW)







Item Description

CAN bus Power Meter
This is the software solution for the CAN bus power meter(PM-213x-CAN). It is convenient to collect the distributed power information via CAN bus. [more...]

CAN OPC Server
This is the OPC server for all the SCADA like LabVIEW, iFix, DASYLab and etc. By using the OPC server, the users be able to control any CAN devices via the famous SCADA. [more...]

VxCAN Driver
The VxCAN driver is the virtual CAN driver for all CAN converters and CAN master products. Even using different products, the users could use the same APIs to develop any CAN applications. [more...]

InduSoft Driver
The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...]

CANcheck
This is the software for diagnosing and testing the user's CAN devices. The graphical interface is ready-made and easy to operate. [more...]

CAN Test Tool
The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS [more...]







Item
I-7565-H1
I-7565-H2
Hardware
CAN Port Channels
1
2
CAN Interface
Transceiver
NXP 82C250
NXP 82C250
Connector
9-pin D-sub connector
10-pin terminal-block connector
Baud Rate (bps)
5K ~ 1Mbps or User-defined baud rate
5K ~ 1Mbps or User-defined baud rate
Isolation
3000VDC for DC-to-DC
2500Vrms for photo-couple
3000VDC for DC-to-DC
2500Vrms for photo-couple
Terminator Resistor
Selectable 120£[ terminator resistor by jumper
Selectable 120£[ terminator resistor by jumper
Specification
ISO-11898-2, CAN 2.0A and CAN 2.0B
ISO-11898-2, CAN 2.0A and CAN 2.0B
Pin Assignment
C.I.A. DS-102 (CAN_H=7, CAN_L=2)
(CAN1: CAN_H=4, CAN_L=2 ) /
(CAN2: CAN_H=9, CAN_L=7 )
Receive Buffer
256 data frames
128 data frames for each CAN port
Max Data Flow
3000 fps
3000 fps (Total CAN ports)
USB Interface
Connector
USB Type B
USB Type B
Transmission speed
12M kbps
12M kbps
Specification
USB 1.1 and USB 2.0 standard
USB 1.1 and USB 2.0 standard
Receive Buffer
100 data frames
100 data frames
LED
Round LED
PWR / RUN /ERR LED
PWR / RUN /ERR LED
Software
Driver
Windows 2K/XP, Linux
WinCE (available soon)
Windows 2K/XP, Linux
WinCE (available soon)
Power
Power supply
By USB interface
By USB interface
Power Consumption
1.5 W
1.5 W
Dip Switch
Init (Firmware Update) /
Normal (Firmware Operation)
Init (Firmware Update) /
Normal (Firmware Operation)
Mechanism
Installation
DIN-Rail
DIN-Rail
Dimensions
108mm x 72mm x 35mm (H x W x D)
108mm x 72mm x 35mm (H x W x D)
Environment
Operating Temp.
-25 ~ 75 ¢J
-25 ~ 75 ¢J
Storage Temp.
-30 ~ 80 ¢J
-30 ~ 80 ¢J
Humidity
10 ~ 90% RH, non-condensing
10 ~ 90% RH, non-condensing








I-7565-H1 CR

High Performance Intelligent USB to 1-port CAN bus converter (RoHS)

I-7565-H2 CR

High Performance Intelligent USB to 2-port CAN bus converter (RoHS)

Include Cable
CA-USB18(1.8M Cable)x1







CAN bus Connector
9-pin Female D-sub & 3-wire CAN bus cable (1M)
7/14 channel Surge Protector
EMI Ferrite Split/Snap-On Core
