CAN-2054D

DeviceNet Slave Module of 8-Channel Isolated Digital Input and 8-Channel Isolated Digital Output






DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

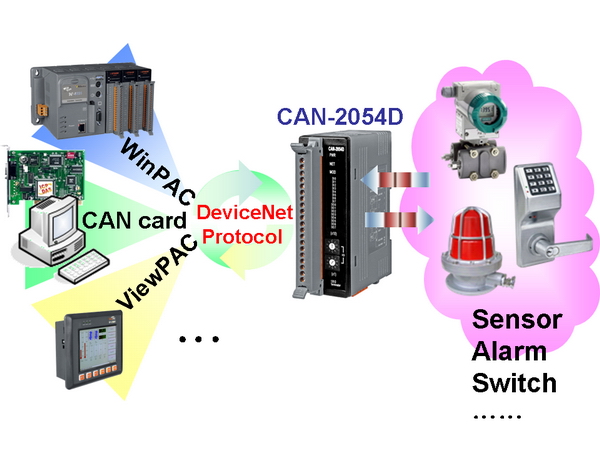

The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.















DeviceNet Interface
DeviceNet Specification
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe
Group 2 Only Server
Connection supported
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate
¡@Setting by Rotary Switch
125 kbps, 250 kbps, 500 kbps
Node ID
¡@Setting by Rotary Switch
0 ~ 63
Heartbeat message
Yes
Shutdown message
Yes
Terminator Resistor
Switch for 120 £[ terminator resistor
Connector
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file
Yes
LED
PWR/NET/MOD
Digital Input
Channels
8 (Sink/Source)
On Voltage Level
+3.5 ~ +30 VDC
Off Voltage Level
+1 VDC Max.
Input Impedance
3 k£[, 0.3 W
Intra-module Isolation
3750 Vrms
ESD Protection
4 kV Contact for each channel
Digital Output
Channels
8 (Sink)
Load Voltage
+5 ~ +30 VDC
Output Max Load Current
700 mA per channel
Output Type
Open Collector
Intra-module Isolation
3750 Vrms
ESD Protection
4 kV Contact for each channel
LED
DeviceNet Status
3 LEDs for PWR/NET/MOD
Terminal Resister
1 LED to terminal resister indicators
DI LED
8 LEDs to digital input indicators
DO LED
8 LEDs to digital output indicators
Power
Power Supply
Unregulated +10 ~ +30 VDC
Power Consumption
1.5 W
Mechanism
Installation
DIN-Rail
Dimensions
32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp.
-25 ~ 75 ¢J
Storage Temp.
-30 ~ 80 ¢J
Humidity
10 ~ 90% RH, non-condensing






CAN-2054D
DeviceNet module of 8-channel DI and DO







DeivceNet Master Library Support PISO-CAN serials, PEX-CAN serials and PCM-CAN with DeviceNet master library
PISO-DNM100U-D
PISO-DNM100U-T
1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside for universal PCI bus
I-7565-DNM-G CR USB/DeviceNet Master communication Converter with D-sub 9-pin connector
I-8124W 1 Port DeviceNet Master Module with dual port RAM
I-87124 1 Port High Performance DeviceNet Master Module
CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
