CAN Bus
    I-87124








    CAN Bus


    I-8000 Series












I-87124
1 Port High Performance DeviceNet Master Module

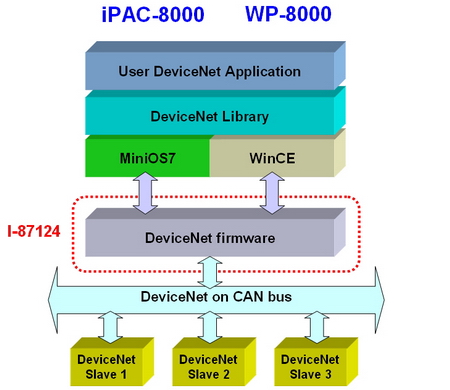

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-87124 can represent an economic solution of DeviceNet application and be a DeviceNet master device in the CAN bus on the DeviceNet network. It is a "Predefined Master connection Set", and supports Group 2 only Server functions to communication with slave devices. It has a independent CAN bus communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of DeviceNet applications. Besides, I-87124 uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in WinPAC or ViewPAC series PAC.It is popularly applied in the industrial automation, building automation,vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-87124 module is developed for this purpose.






  • CAN bus communication application.
  • Industry automation
  • Industrial Machinery
  • Building Automation
  • Food & Beverage
  • Semiconductor Fabrication
  • Control system

  •










    Common Features:

    • 3 indication LEDs (Error,Status,Bus LEDs)
    • 1KVdc isolation on CAN side
    • Programmable Master MAC ID
    • Programmable transfer-rate 125k, 250k 500k
    • Support maximum nodes up to 64
    • Support Group 2 Only Server functions
    • The maximum Fragment number is (Input/Output) up to 64
    • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
    • Support auto-scan slave device function
    • Support on-line add device into and remove device from network
    • Support boot-up communicate with slave devices automatically






    Diagnosis

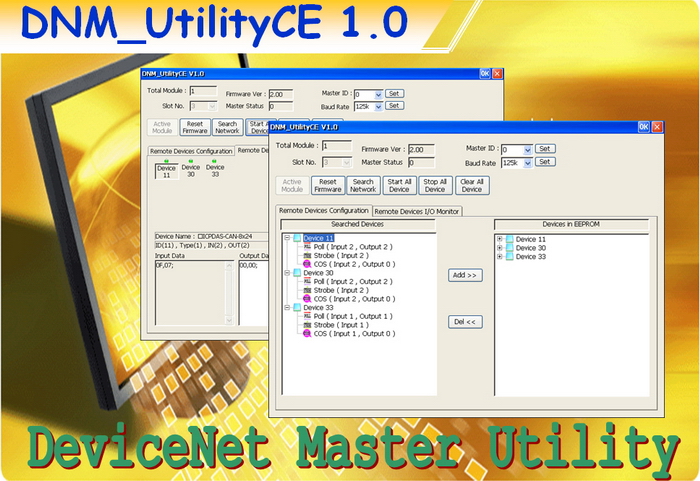

    This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.

    Configuration

    This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM of the PISO-DNM100. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.

    Remote I/O access

    The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.





    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Transceiver
    NXP 82C250
    Channel number
    1
    Connector
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    Baud Rate (bps)
    125 k, 250 k, 500 k
    Transmission Distance (m)
    Depend on baud rate (for example, max. 1000 m at 50 kbps )
    Isolation
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminator Resistor
    Switch for 120 [ terminator resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Protocol
    DeviceNet Volumn I ver2.0, Volumn II ver2.0
    Hardware
    CPU
    80186, 80 MHz or compatible
    SRAM/Flash/EEPROM
    512 KB / 512 KB / 16 KB
    Watchdog
    CPU built-in
    LED
    Round LED
    NS LED, RUN LED, MS LED
    Software
    Driver
    Windows CE
    Library
    VB.Net 2005, C#.Net 2005, eVC++ 4.0
    Power
    Power Consumption
    2 W
    Mechanism
    Dimensions
    31mm x 115mm x 91mm (W x L x H)
    Environment
    Operating Temp.
    -25 ~ 75 J
    Storage Temp.
    -30 ~ 80 J
    Humidity
    10 ~ 90% RH, non-condensing





    WinPAC Series

    ViewPAC Series








    I-87124-G
    1 Port Programmable DeviceNet Interface







    CAN bus Connector
    9-pin Female D-sub & 3-wire CAN bus cable (1M)
    7/14 channel Surge Protector
    EMI Ferrite Split/Snap-On Core
    Field-Installation A-coded 5-pin Female
