USB/DeviceNet Master Converter |
|
|
|
|
|
| |
I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications. |
|
| |
Besides, I-7565-DNM uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Win98/Win2000/WinXP. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose. |
|
|
|
|
|
| |
|
|
| |
|
|
| |
• Industrial Machinery • Building Automation • Medical • Maritime • Restaurant Appliances
• Laboratory Equipment & Research
 |
| |
|
|
|
| |
|
| |
|
| |
-
Fully compliant with USB 1.1/2.0(Full Speed)
-
No external power supply is required as I-7565 takes it's power from the USB bus
-
DeviceNet Version: Volume I & II, Release 2.0
-
Programmable Master MAC ID and Baud Rate.
-
Baud Rate: 125k, 250k, 500k
-
Support Group 2 and UCMM connection
-
I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
-
I/O Length: 512 Bytes max (Input/Output) per slave
-
Slave Node : 63 nodes max
-
Support Auto-Search slave device function.
-
Support on-line adding and removing devices
-
Support Auto-detect Group 2 and UCMM device
-
Auto-Reconnect when the connection is broken
-
Status LED: RUN, MS, NS
-
Free Software development tools for Windows
-
Windows 7 32-bit / 64-bit drivers supported
-
Windows 98/ME/2000/XP drivers supported
-
Linux drivers supported
|
| |
|
|
|
| |
|
|
| |
|
|
| |
-
Programmable Master MAC ID
-
Programmable transfer-rate 125K, 250K, 500K
-
Each port support maximum nodes up to 64
-
Support Group 2 Only Server functions
-
Support UCMM functions
-
Predefined Master-Slave Connection Set
-
The maximum Fragment number is (Input/Output) up to 64
-
Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
-
Support Auto-Scan slave device function
-
Support on-line adding and removing devices
-
Support Auto-Reconnect when the connection is broken
We have communicated with the following DeviceNet slaves
-
Allen-Bradley PowerFlex series DeviceNet Inverters
-
BECKHOFF CX1500-B520 series DeviceNet I/O modules
- BECKHOFF BK5250 series DeviceNet I/O modules
- MKS 683 series DeviceNet exhaust throttles
- MKS MFC (Mass Flow Controller) series DeviceNet devices
- MKS DELTA II FRC (Flow Ratio Controller) series DeviceNet devices
- MKS DC Power Generator (OPT- xxx) series DeviceNet devices
- OMRON DRT1-ID/ODxx series DeviceNet I/O modules
- OMRON DRT2-MDxx series DeviceNet I/O modules
- COSMOS PS-7 series DeviceNet gas detectors
- CELERITY UNIT IFC-125 series DeviceNet devices
|
| |
|
| |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.
This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM of the I-7565-DNM. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.
The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Item |
Description |
InduSoft Driver |
The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...] |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The I-7565-DNM LabVIEW driver is the function reference to the DeviceNet master. We provide many useful VI functions in the LabVIEW environment. We also have the "DeviceNet Master Utility" to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet devices in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

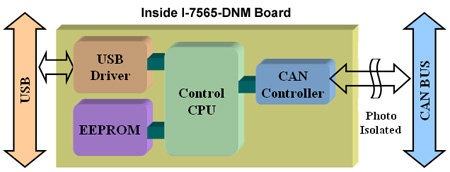

Hardware |
CPU |
80186, 80 MHz or compatible |
SRAM/Flash/EEPROM |
512 KB / 512 KB / 16 KB |
ESD Protection |
2 kV class A |
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock |
Transceiver |
NXP 82C250 |
Channel number |
1 |
Connector |
9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+, N/A for others) |
Baud Rate (bps) |
125 k, 250 k, 500 k |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Terminator Resistor |
Jumper for 120 £[ terminator resistor |
Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
USB Interface |
Connector |
USB Type B |
Transmission speed |
921.6 kbps |
Specification |
USB 1.1 and USB 2.0 |
LED |
Round LED |
PWR LED, RUN LED, NS LED, MS LED |
Software |
Driver |
Windows 98/ME/NT/2K/XP/7 |
Library |
VB 6.0, VC++ 6.0, BCB 6.0 |
Power |
Power supply |
By USB interface |
Power Consumption |
3 W |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
72mm x 101mm x 33mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75 ¢J |
Storage Temp. |
-30 ~ 80 ¢J |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
I-7565-DNM-G CR |
USB/DeviceNet Master communication Converter with D-sub 9-pin connector |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
CAN bus Connector |
|
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
|
7/14 channel Surge Protector |
|
EMI Ferrite Split/Snap-On Core
|
|
