CAN-2054 ~ NEW ~

CCON Slave Module of 8-Channel Isolated Digital Input and 8-Channel Isolated Digital Output






CCON protocol is one of the application layer protocol on the CAN bus. It was developed by the ICP DAS Co., LTD.

CCON protocol is a simple and effective protocol for industrial automation applications. Based on the CAN bus layer, it could provide many safe and robust communication mechanisms like arbitration, error detection, error correction and etc. It could help to establish the CAN networking application fast and easily. The CCON I/O modules could reply their own real-time I/O information to the controller at regular intervals automatically. In other word, the controller could acquire all remote modules in short time. It makes the communication more efficient when collecting a lot of remote I/O information. CAN-2054 module is easy to access the digital I/O status and set the configuration by using standard CCON protocol.

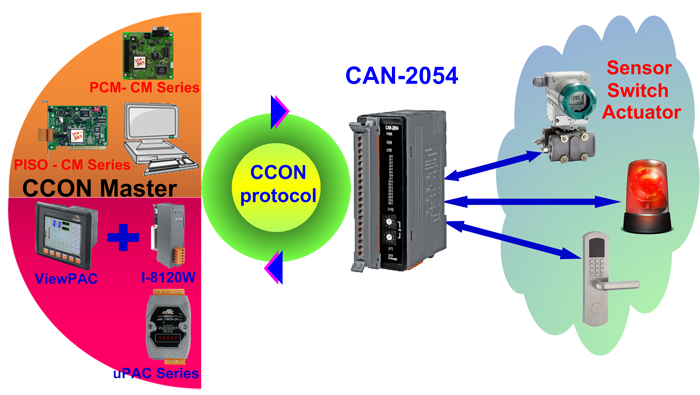

CAN-2054 has 8-channel isolated sink/source input and 8-channel isolated sink output and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CCON masters of ICP DAS, you can quickly build a CCON network to approach your requirements .

http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#CCON















CAN Interface
Connector 5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
Baud Rate (bps) 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M
Terminator Resistor Switch for 120 £[ terminator resistor
Node ID 1~99 selected by rotary switch
Protocol CCON ver2.00
Digital Input
Channels 8 (Sink / Source)
On Voltage Level +3.5 ~ +30 VDC
Off Voltage Level +1 VDC Max.
Response Time 250 us
ESD Protection 4 kV Contact for each channel
Digital Output
Channels 8 (Sink)
Load Voltage +5 ~ +30 VDC
Output Type Open-Collector
Reaction Time 200 us
LED
Round LED PWR LED, RUN LED, ERR LED
I/O LED 8 LEDs for DI and DO individually, and 1 LED as terminal resister indicator
Power
Input range Unregulated +10 ~ +30 VDC
Power Consumption 1.5 W
Mechanism
Installation DIN-Rail
Dimensions 32.3 mm x 99 mm x 77.5 mm (W x L x H)
Environment
Operating Temp. -25 ~ +75 ¢J
Storage Temp. -30 ~ +80 ¢J
Humidity 10 ~ 90% RH, non-condensing






CAN-2054
CCON module of 8-channel Digital Input and 8-channel Digital Output
