CAN-2018D

Application

Hardware Specifications

CAN Bus

I-8000 Series

CAN-2018D

~ NEW ~
DeviceNet Slave Module of 8-channel thermocouple input

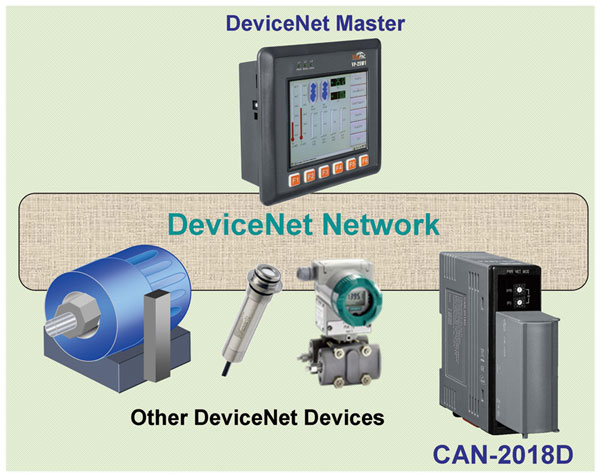

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2018D follows DeviceNet specification Volume I/II, Release 2.0. User can access the thermocouple input status and set the configuration via DeviceNet EDS file. CAN-2018D has 8-channel thermocouple input and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#3

back

DeviceNet Interface
DeviceNet Specification	Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe	Group 2 Only Server
Connection supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O
Baud Rate 　Setting by Rotary Switch	125 kbps, 250 kbps, 500 kbps
Node ID 　Setting by Rotary Switch	0 ~ 63
Heartbeat message	Yes
Shutdown message	Yes
Terminator Resistor	Switch for 120 Ω terminator resistor
Connector	5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file	Yes
Analog Input
Channels	8
Input Type	+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA,(Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution	16-bit
Sampling Rate	10 Samples/Sec. (Total)
Accuracy	+/-0.1% FSR
Zero Drift	+/- 10 μV/ °C
Span Drift	+/- 25 ppm/ °C
Common Mode Rejection	86 dB
Normal Mode Rejection	100 dB
Input Impedance	>400 kΩ
Individual Channel Configuration	Yes
Open Thermocouple Detection	Yes
Over voltage Protection	240 Vrms
ESD Protection	+/-4kV, Contact for each terminal.
Intra-module Isolation, Field to Logic	3000 VDC
LED
Power	PWR, red
DeviceNet Status	NET/MOD, green/orange
Power
Power Supply	Unregulated +10 ~ +30 VDC
Power Consumption	1.5 W
Mechanism
Installation	DIN-Rail
Dimensions	33 mm x 99 mm x 78 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

back

Type Code	Temperature Range (°C)
J	-210 °C ~ +1200 °C
K	-270 °C ~ +1372 °C
T	-270 °C ~ +400 °C
E	-270 °C ~ +1000 °C
R	-50 °C ~ +1765 °C
S	-50 °C ~ +1765 °C
B	0 °C ~ +1820 °C
N	-270 °C ~ +1300 °C
C	0 °C ~ +2320 °C

back

CAN-2018D/S

DeviceNet Slave Module of 8-channel Thermocouple Input
Include CAN-2018D module and a CN-1824 daughter board

back

DeivceNet Master Library	Support PISO-CAN serials, PEX-CAN serials and PCM-CAN with DeviceNet master library
PISO-DNM100U-D PISO-DNM100U-T	1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside for universal PCI bus
I-7565-DNM-G CR	USB/DeviceNet Master communication Converter with D-sub 9-pin connector
I-8124W	1 Port DeviceNet Master Module with dual port RAM
I-87124	1 Port High Performance DeviceNet Master Module
CA-0910-C	9-pin Female D-sub & 3-wire CAN bus cable (1M)
