SG-3383
介紹

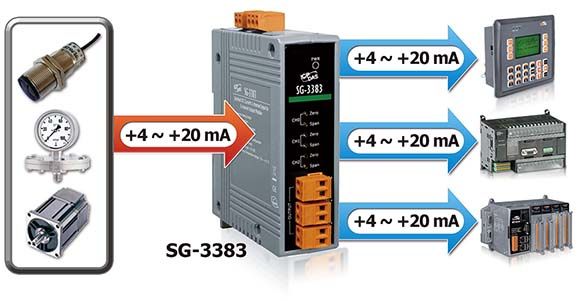

The SG-3383 DC current signal splitters accept one 4 to 20 mA current input and provide three optically isolated 4 to 20 mA current outputs that are linearly related to the 4 to 20 mA current input. This provides an economical solution when one signal must be sent to three different devices. Typical applications include isolation, output splitting, output device separation and redundancy (i.e. to prevent failure of the entire loop if one device fails), or a combination of these. The input signal is filtered, amplified, split, and then passed through an opto-coupler to the output stages. Full 3-way isolation (input, output, power) , 4 kV EFT Protection for Power Line and 8 kV ESD Protection make this module useful for ground loop elimination, common mode signal rejection,and noise pickup reduction. The SG-3383 includes an LED display that can be used to indicate whether the module is functioning correctly, and also includes VRs (Zero, Span) that can be used to calibrate the output range accuracy. The input bandwidth of the SG-3383 is typically 2.5 kHz.
應用
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
相似產品
隔離 | |
---|---|
3 端隔離 | 3000 VDC |
EMS 防護 | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±8 kV Contact for each Terminal |
LED 燈 | |
---|---|
狀態 | Yes, 1 as Power/Communication Indicator |
類比輸入 | |
---|---|
通道數 | 1 |
範圍 | +4 ~ +20 mA |
頻寬 | 2.5 kHz |
輸入阻抗 | 125 Ω |
類比輸出 | |
---|---|
通道數 | 3 |
範圍 | +4 ~ +20 mA |
精度 | ±0.1% of FSR (typical) |
電流輸出接線 | Source |
電流輸出容量 | 500 Ω |
電源 | |
---|---|
反極性保護 | Yes |
輸入範圍 | +10 ~ +30 VDC |
功耗 | 2.5 W |
機構 | |
---|---|
尺寸 (mm) | 33 mm x 127 mm x 99 mm (W x L x H) |
安裝 | DIN-Rail or Wall Mounting |
環境 | |
---|---|
工作溫度 | -25 ~ +75°C |
儲存溫度 | -40 ~ +85°C |
濕度 | 10 ~ 95% RH, Non-condensing |
