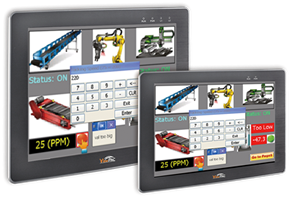

ViewPAC Series (Win-GRAF based)
VP-6208-CE7, VP-5208-CE7, VP-4208-CE7, VP-3208-CE7, VP-2208-CE7




~ New ~ ~ Available soon ~
VP-2208-CE7, VP-4208-CE7,
VP-5208-CE7, VP-6208-CE7		 VP-3208-CE7


  ● 15", 12.1", 10.4", 8.4", 7" TFT LCD
  ● Cortex-A8, 720 MHz/1 GHz CPU
  ● CE7 (Windows Embedded Compact 7)
  ● Embedded Win-GRAF SoftLogic (IEC 61131-3)
  ● Hard Real-Time Capability
  ● PoE (Power over Ethernet)
  ● NEMA 4/IP65 Compliant Front Panel
  ● Modbus RTU/TCP (Master, Slave)
  ● Support eLogger HMI
  ● Audio with Earphone-Out
  ● Operating Temperature: -10 ~ +60 °C

The Win-GRAF ViewPAC Series (VP-2208-CE7/VP-3208-CE7/VP-4208-CE7/VP-5208-CE7/VP-6208-CE7) are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Cortex-A8 (720 MHz/1 GHz) CPU, TFT LCD and a variety of connectives including Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.


CE7 is a compact and hard real-time OS used to quickly create time critical and high performance applications. Using CE7 gives an ability to run PC-based control software such as Visual Basic .NET, Virtual C#, SCADA software, SoftPLC, etc.
  • FTP Server
  • Web Server
  • SQL Compact Edition 3.5
  • .NET Compact Framework 3.5
  • Virtual CE Pro (VECP)


Win-GRAF is a powerful, PLC-like, softlogic development software.It is installed on PC with windows 7 or 8 (or later version). It supports the international PLC language standard - IEC 61131-3 - Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), Instruction Set (IL), suitable to develop applications for the full range of Win-GRAF PACs from ICP DAS.
IEC 61131-3 Standard Open PLC Syntax (LD, FBD, SFC, ST, IL)
Using ST Syntax in the FBD or LD Program
Event Triggered Data Binding (Exchange Data between PACs)
Online Debugging/Control/Monitoring, Offline Simulation
On Line Change
Various Protocols:
    - Modbus TCP/UDP, Modbus RTU/ASCII Master
    - Modbus TCP, RTU Slave
    - DCON ...
Plenty of Functions, Function Blocks, I/O Boards
Redundancy (For XP-8x38-CE6 PAC only)


TOP | HOME
 Note: Except for specially noted items, all applications are applicable to the Win-GRAF PAC (i.e., WP-8xx8, WP-5xx8-CE7,
           WP-8xx8-CE7, WP-9xx8-CE7, VP-x2x8-CE7, XP-8x38-CE6 PAC).
Schedule Control  Modbus Master Ports



On Line Change
Replace the current running project to a new modified one without stopping the project.
  eLogger HMI Modbus RTU/TCP Slave Ports



  Event Triggered Data Binding DCON Remote I/O
Exchange data between PACs.
  Intelligent Win-GRAF 3G Solution
Only the WG-Communication Server (behavior like a Cloud Server) needs a public IP (support Domain Name).
   Other PACs and PCs that connect to this Server no need a public IP.
The user can monitor the remote PAC by using a 3G wireless network or an intranet.
The user can use the Win-GRAF Workbench to connect to a remote PAC to debug/update the Win-GRAF program or
   update the Win-GRAF PAC Driver.
The PAC can actively send a Log File to a PC (WG-Communication-Server).

  Support VS 2008 Development
The Win-GRAF PACs support to use VS 2008 (VB.net, C#) to develop user own HMI and data management
   programs, and can exchange variables with the Win-GRAF control programs.


  Create Your Own Functions and Function Blocks
For some reason (like business protection, integration with your own product protocol, and etc.), you can develop your
   own functions and function blocks by VS 2008. Then, you can use these functions and function blocks in
   the Win-GRAF project.

  PID Control
Can Control more than 200 PID in one PAC.



TOP | HOME
Models VP-2208-CE7 VP-3208-CE7 VP-4208-CE7 VP-5208-CE7 VP-6208-CE7
LCD
Diagonal Size 7" (16:9) 8.4" (4:3) 10.4" (4:3) 12.1" (4:3) 15" (4:3)
Resolution 800 x 480 800 x 600 1024 x 768
Brightness (cd/m2) 400
Contrast Ratio 500 : 1
LED Backlight Life (hrs) 20,000 50,000
Touch Panel 4-wire, resistive type;
light transmission: 80 %		 5-wire, resistive type; light transmission: 80 %
LED Indicator 2 (Run, PWR)
System Software
OS Windows CE 7.0
Framework Support .NET Compact Framework 3.5
Embedded Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
SDK Provided Dll for Visual Studio.Net
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
Development Software
Win-GRAF Software Win-GRAF IEC 61131-3 standard
Languages LD, ST, FBD, SFC, IL
Max. Code Size 2 MB
Scan Time 3 ~ 15 ms for normal program
15 ~ 50 ms (or more) for complex or large program
Non-Win-GRAF Options: VS .NET 2008 (VB.NET, C# .NET)
CPU Module
CPU Cortex-A8, 720 MHz Cortex-A8, 1 GHz
SDRAM 512 MB (DDR3)
MRAM 128 KB
Flash (SSD) 256 MB
EEPROM 16 KB
Expansion Flash Memory microSD socket with a
4 GB microSD card (support up to 32 GB)		 SD socket with a 4 GB microSD card and a microSD adapter
(support up to 32 GB)
RTC (Real Time Clock) Provides seconds, minutes, hours, day of week, month, year
64-bit Hardware Serial Number Yes, for software copy protection
Dual Watchdog Timers 0.8 second
Rotary Switch Yes (0 ~ 9)
Communication Ports
Ethernet 1 x RJ-45 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host) 2
COM 1 RS-232/RS-485;
2500 VDC isolated		 - RS-232/RS-485 (DB9 connector); 2500 VDC isolated
COM 2 RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated
COM 3 - RS-485 (Data+, Data-, GND); 2500 VDC isolated
Audio Earphone-out
Mechanical
Dimensions
(W x H x D) Unit: mm		 213 x 148 x 44 249 x 207 x 64 291 x 229 x 54 324 x 255 x 64 381 x 305 x 63
Panel Cut-Out
(W x H) Unit: mm		 197 x 133, ± 1 235 x 193, ± 1 277 x 215, ± 1 310 x 241, ± 1 362 x 286, ± 1
Installation Panel Mounting, VESA (75 x 75) Mounting
Ingress Protection Front panel: NEMA 4/IP65
Environmental
Operating Temperature -10 °C ~ +60 °C
Storage Temperature -20 °C ~ +70 °C
Ambient Relative Humidity 10 % ~ 90 % RH (non-condensing)
Power
Input Range +12 VDC ~ +48 VDC
Power from PoE IEEE 802.3af
Isolation - 1 kV
Consumption 6 W 7.5 W 13 W 14 W 16 W

TOP | HOME
Models VP-2208-CE7 VP-3208-CE7 VP-4208-CE7, VP-5208-CE7, VP-6208-CE7
Protocols (Note that certain protocols require optional devices)
NET ID 1 ~ 255, for Modbus TCP/RTU Slave, user-assigned.
Modbus TCP Master A max. of 200 IP links to access/control the devices supporting Standard Modbus TCP Slave protocol.
Modbus RTU/ASCII Master Max. 2 RS-485 ports:
COM1 ~ 2		 Max. 2 RS-485 ports:
COM2 ~ 3		 Max. 3 RS-485 ports: COM1 ~ 3
Using COM ports to connect other Modbus Slave devices (Like M-7000). Recommend connecting no more than 32 devices in each port for better scan rate.
Modbus RTU Slave Max. 2 RS-485 ports:
COM1 ~ 2		 Max. 2 RS-485 ports:
COM2 ~ 3		 Max. 3 RS-485 ports: COM1 ~ 3
Using COM ports for connecting SCADA/HMI.
Modbus TCP Slave One Ethernet ports (LAN1) support up to 64 connections. If the PAC uses 1 connection to connect each PC/HMI, it can connect up to 64 PCs/HMIs; If the PAC uses 2 connections to connect each PC/HMI, it can connect up to 32 PCs/HMIs; If one of the Ethernet port malfunctions, the other one can still be used to connect the PC/HMI.
User-defined Protocol COM1 ~ 2 COM2 ~ 3 COM1 ~ 3
Custom protocols can be applied at COM by using Serial communication functions or function blocks.
DCON Remote I/O Max. 2 RS-485 ports:
COM1 ~ 2		 Max. 2 RS-485 ports:
COM2 ~ 3		 Max. 3 RS-485 ports: COM1 ~ 3
Each port can connect max. 50 nos I-7000 series modules or 50 nos I-87xxxW I/O modules in expansion units (I-87K4, I-87K8, I-87K9, RU-87P8, RU-87P4). Recommend connecting no more than 32 modules in each port for better scan rate.
App Protection Using the unique 64-bit (8 bytes) PAC serial number to generate a protection password by your own algorithm to protect your Win-GRAF application. Then, if someone intend to copy your application in the PAC to another new PAC with the same PAC model, this application will not work properly in that new PAC.
Data Binding Exchange data between ICP DAS Win-GRAF PAC via Ethernet port (LAN1). The data transmission is event triggered. It is much efficient than polling way.
On Line Change For application field that not allowed to stop the Win-GRAF program and wish to run a new program modified a little from the original program.
Modbus RTU I/O When software enables Modbus RTU Master function, the PAC can connect ICP DAS M-7000 and tM series and LC series I/O modules which support Modbus RTU protocol.
Modbus TCP I/O When software enable Modbus TCP Master function, the PAC can connect ICP DAS I-8KE4/8-MTCP, PETL-7000, tPET/tET series I/O modules which support Modbus TCP protocol.
Schedule Control Supports the "Schedule-Control Utility" (free) to implement schedule control. Each PAC can control max. 10 Targets (devices) with different schedule settings in each day / holiday / special day / season / year.
Retain Variables Built-in the fast retain memory that can retain up to 12,000 Win-GRAF variables.
File Access and Data Log The Win-GRAF supports file operation functions to read/write files in the PAC's micro_SD or flash memory to do data log or file access.
eLogger HMI Support to run HMI program (developed by the eLogger) together with the Win-GRAF logic-control program in the same PAC.
Optional I/O List
GPS GPS-721
* Note: VP-2208-CE7 has no COM3. VP-3208-CE7 has no COM1.

TOP | HOME
VP-2208-CE7 CR 7" Win-GRAF based ViewPAC with Cortex-A8, 720 MHz CPU and CE7 OS (RoHS)
VP-3208-CE7 CR 8.4" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-4208-CE7 CR 10.4" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-5208-CE7 CR 12.1" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)
VP-6208-CE7 CR 15" Win-GRAF based ViewPAC with Cortex-A8, 1 GHz CPU and CE7 OS (RoHS)

Win-GRAF Development Software
Win-GRAF Workbench Win-GRAF Workbench Software (Large I/O Tags) with one USB Dongle.

Power Supply 24 VDC Power Supply with DIN-Rail Mounting (RoHS)
Ethernet Switch 5 to 8 Ports Real-time Redundant Ring Ethernet Switch (RoHS)
5 to 16 Ports Unmanaged Industrial Ethernet Switch (RoHS)
Converter RS-232/422/485 Converter (RoHS)
USB to RS-232/422/485 Converter (RoHS)
