  XP-8047-CE6, XP-8347-CE6,
XP-8747-CE6
    ISaGRAF XPAC (Windows CE 6.0 inside)








XP-8xx7-CE6 series (XP-8047-CE6/8347-CE6/8747-CE6) is the new generation ISaGRAF PAC of ICP DAS. It is equipped with an AMD LX 800 CPU (500 MHz) running a Windows Embedded CE 6.0 operating system, various connectivity including VGA resolution: max. 1600 x 1200, USB2.0: 2, Ethernet: 10/100 Mbps x 2, RS-232/RS-485: 4 or 5, and 3/7 slots for high performance parallel-type I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K series), etc.

   Major advantage compared with the WP-8xx7 and VP-2xW7 :
    •
The USB-mouse operations and Ethernet communication of the XP-8xx7-CE6 are more effective (consume
       less CPU loading) than the WP-8xx7 and VP-2xW7.
    • The memory size (Flash and SDRAM) of the XP-8xx7-CE6 is much more than the WP-8xx7 and VP-2xW7.

   The XPAC Series XP-8xx7-CE6 supports ISaGRAF Ver. 3 Workbench:
    • IEC 61131-3 Standard Open PLC Programming Languages (LD, FBD, SFC, ST, IL, FC) + Flow Chart (FC)
    • Auto-Scan I/O
    • On-Line Debugging/Control/Monitoring, Off-Line Simulation
    • Simple Graphic HMI





Windows Compact Edition 6.0
.NET Compact Framework 3.5
ISaGRAF Ver.3 SoftLogic Inside
Support IEC 61131-3 Standard
Support Web HMI function
Support conncet to Microsoft Server
Accepts max. 2 MB ISaGRAF code size






AMD LX 800 CPU (32-bit and 500 MHz)
More Effective USB & Ethernet than WP-8xx7
512 MB DDR SDRAM, 4 GB Built-In Flash
Battery Backup SRAM: 512 KB
System Rescue CF Card (Disaster Recovery System)
0/3/7 I/O Expansion Slots (support High Profile I/O Modules)
Dual Ethernet Ports (10/100M)
5 Serial Ports (RS-232/RS-485)
Redundant Power Inputs




Top






Top



Spec


Models XP-8047-CE6
XP-8347-CE6
XP-8747-CE6
System Software
OS Microsoft Windows Embedded CE 6.0
.NET Compact Framework 3.5
Embedded Service FTP Server, Web Server
Development Software
ISaGRAF Software ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC
It supports Soft-GRAF HMI in the XP-8xx7-CE6, WP-8xx7 and VP-2xW7 PAC.
Max. Code Size Accepts max. 2 MB ISaGRAF code size (Appli.x8m must < 2 MB)
Non-ISaGRAF Options: Microsoft EVC++4.0 or VS .NET 2003/2005/2008 (VB .NET 2003/2005/2008, C# .NET 2003/2005/2008) with .Net Compact Framework 3.5
Web Service
Web HMI Support Web HMI function, PC running Internet Explorer can access to the XP-8xx7-CE6 via Local Ethernet, Internet or dial Modem to monitoring and control.
Security Web HMI supports three levels user name and password protection (high/middle/low)
Power Supply
Input Range +10 ~ +30 VDC (unregulated),
Isolated 1 kV
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity 1.8 A, 5 V supply to CPU
and backplane; total 8 W
1.8 A, 5 V supply to CPU and backplane; 5.2 A, 5 V supply to I/O expansion slots, total 35 W
2.0 A, 5 V supply to CPU and backplane; 5.0 A, 5 V supply to I/O expansion slots, total 35 W
Power Consumption 14.4 W (0.6 A @ 24 VDC);
14.4 W (0.6 A @ 24 VDC); 16.8 W (0.7 A @ 24 VDC);
General Environment
Temperature Operating: -25 ~ +75 °C,
Storage : -30 ~ +85 °C
Humidity 5 ~ 90 % RH (non-condensing )
System
CPU AMD LX 800 (32-bit & 500 MHz) processor or compatible
Dual Watchdog Timers Yes
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
System Memory 512 MB DDR SDRAM
Dual Battery Backup SRAM 512 KB (for 5 years data retention while power off)
FLASH 4 GB as IDE Master
EEPROM 16 KB, Data retention: 40 years. 1,000,000 erase/write cycles
CF Card 1 GB (support up to 32 GB)
Hardware Serial Number Yes,64-bit hardware unique serial number
Rotary Switch Yes (0~9)
DIP Switch - Yes (8 bits DIP Switch)
NET ID 1 ~ 255, User-assigned by software
VGA & Communication Interface
VGA Port Yes (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480)
USB 2.0 2
Ethernet RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Please use NS-205/NS-208 Industrial Ethernet Switch.
COM1 RS-232 (RxD, TxD, and GND);
Non-Isolated;
Internal communication with the I-87K High Profile modules in slots
COM2 RS-232 (RxD, TxD, and GND); Non-Isolated; Baudrate: Max. 115200 bps
COM3 RS-485 (D2+, D2-); self-tuner ASIC inside; Isolated (3000 VDC)
COM4 RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, DATA+ and DATA- for RS-485);
Non-Isolated; Baudrate: Max. 115200 bps
COM5 RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-Isolated; Baudrate: Max. 115200 bps
I/O Expansion Slots
Slot Number 0 slot 3 slots (slot 1 ~ 3) 7 slots (slot 1 ~ 7)
* Accept only High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
Hot Swap - * For High Profile I-87K modules only
Mechanical
Dimensions (W x L x H) 137 mm x 132 mm x 125 mm 231 mm x 132 mm x 125 mm 355 mm x 132 mm x 125 mm
Installation DIN-Rail or Wall Mounting
Motion

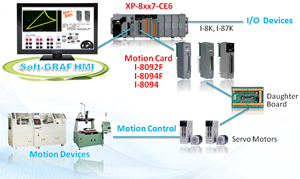

Motion Control - Integrate with one or serval I-8092F (2-axis) or I-8094F/I-8094 (4-axis)
PWM Output
High Speed PWM Module I-7088, I-8088W, I-87088W:
8-ch. PWM outputs, software support 1 Hz ~ 100 KHz (non-continuous), duty: 0.1 ~ 99.9%
DO Module as PWM 8-ch. max. 250 Hz max. For Off=2 & On=2 ms . Output square wave: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms.
Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W. (Relay Output boards cannot generate fast square wave)
Counter, Encoder, Frequency
Parallel DI Counter 8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms.
Optional DI boards: I-8040W, 8040PW, 8042W, 8046W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W.
Serial DI Counter Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W.
Remote DI Counter All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535
High Speed Counter I-87082W: 100 kHz max. 32 bit;
I-8084W: 250 kHz max. 32 bit
Encoder I-8093W: 3-axis Encoder Module, max. 1M Hz for quadrant input mode, max. 4M Hz for
              pulse/direction and cw/ccw input mode. (FAQ-112)
I-8084W: 250 kHz max., 4-ch encoder, can be pulse/direction, or Up/Down or A/B phase
              (Quad. mode); Not support Encoder Z-index. (FAQ-100)
Frequency I-87082W: 2-ch, 1 Hz ~ 100 kHz;
I-8084W: 8-ch, 1 Hz ~ 250 kHz;
Protocols
Modbus RTU/ASCII Master
Protocol
Max. 33 COM Ports (COM1~ 5 and COM6 ~ COM33 if multi-serial port boards are plugged in Slot 1~7) can support multi-ports of Modbus RTU/ASCII Master protocol to connect to other Modbus Slave devices. (XP-8347-CE6/8747-CE6's COM1 is for internal communication with I-87K modules in slots only.)
Modbus TCP/IP Master
Protocol
Link to max. 100 devices that support Standard Modbus TCP/IP Slave protocol (FAQ-113)
Modbus RTU Slave
Protocol
Max. 9 COM Ports (COM1 ~ 33) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & HMI panels. (XP-8347-CE6/8747-CE6's COM1 is for internal communication with I-87K modules in slots only.)
Modbus TCP/IP Slave
Protocol
2 Ethernet Ports all support Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI. 2 Ports support up to 64 connections. (If PAC uses 1 connection to connect each PC/HMI, it can connect up to 64 PC/HMI; If PAC uses 2 connections to connect each PC/HMI, it can connect up to 32 PC/HMI; ...) When one Ethernet port is broken, the other one can still connect to PC/HMI.
Web HMI Protocol Ethernet port for connecting PC running Internet Explorer.
I-7000 & I-87K
RS-485 Remote I/O
One of COM3, COM4 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards and
RU-87P1/2/4/8 + I-87K High Profile I/O boards
as Remote I/O. Max. 255 pcs. of I-7000/87K Remote I/O modules for one PAC.
M-7000 Series Modbus I/O Max. 33 RS-485 ports (COM1 ~ 5 & COM6 ~ COM33 if multi-serial port boards are plugged in) can support M-7000 series Modbus I/O. Each port can connect up to 32 M-7000 Modules.
(XP-8347-CE6/8747-CE6's COM1 is for internal communication with I-87K modules in slots only.)
Modbus TCP/IP I/O LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP listed at oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-042. If LAN2 is broken, it will switch to LAN1 automatically to continuously work. (This need LAN1 & LAN2's IP are set in the same IP domain)
FRnet I/O Support max. 7 pcs. I-8172W boards in slot 1 ~ 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P, at oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-048. Each I-8172W board can connect up to 256 DI plus 256 DO channels.
Send Email Supports mail_snd and mail_set functions to send email with one attached file via Ethernet port.
Ebus To exchange data between ICP DAS's ISaGRAF Ethernet controllers via Ethernet port.
(LAN2 Port only)
SMS:
Short Message Service
COM4 or COM5 can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user's cellular phone.
Optional GSM Modems: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem)
User-defined Protocol User can write his own protocol applied at COM1 ~ COM5 & COM6 ~ COM33 (if multi-serial port boards are plugged in) by Serial communication function blocks. (XP-8347-CE6/8747-CE6's COM1 is for internal communication with I-87K modules in slots only.)
MMICON/LCD COM4 or COM5 supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD &
a 4 x 4 Keyboard to display picture, string, integer, float, & input a char, string, integer & float.
UDP Server & UDP Client
(Exchange Message &
Auto-Report)
LAN1 or LAN2 support UDP Server and UDP/IP Client protocol to send/receive message to/from PC/HMI or other devices. For example, to automatically report data to InduSoft's RXTX driver.
TCP Client
(Exchange Message &
Auto-Report)
LAN1 or LAN2 support TCP Client protocol to send/receive message to/from PC/HMI or other devices which support TCP Server protocol. For example, to automatically report data to InduSoft's RXTX driver, or to connect a local camera.
SQL Client Supports SQL Client functions to write data to (or read data from) Microsoft SQL Servers (2000 SP3, 2005, 2008)
Hot-Swap and
Redundant System
This redundant system has setup two "Active IP" address point to the active LAN1 and LAN2 ports always. One or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which PAC is currently active.

Moreover, the new redundant system can integrate with the RU-87P4/87P8 Expansion Unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system.

Please refer to oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-093.
CAN/CANopen COM1, 2, 4, 5 or COM6 ~ COM33 resides at the I-8112iW/ 8114W/8114iW RS-232 expansion board to connect one I-7530 (converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One PAC supports max.32 RS-232 ports to connect max.32 I-7530. Please refer to oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-086.
(XP-8347-CE6 / 8747-CE6's COM1 is for internal communication with I-87K modules in slots only)



Top




XP-8047-CE6 CR 0 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XP-8347-CE6 CR 3 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XP-8747-CE6 CR 7 slots Ethernet WinCE 6.0 Based ISaGRAF PAC (RoHS) (OS: Multi-language version)
XPCE6-GUP-17000 Upgrade the XP-8xx1-CE6 to become XP-8xx7-CE6
(or Upgrade the XP-8xx9-CE6 to become XP-8xx6-CE6)
