  Application Note For ISaGRAF PACs







Applications Supporting List (by type)
Model XP-8xx7
-CE6
WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
5x07(P)
μPAC-
7186EG(P)
I-7188EG I-7188XG
Applications
Communication Protocol
Model XP-8xx7
-CE6
WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
5x07(P)
μPAC-
7186EG(P)
I-7188EG I-7188XG
Applications
Modbus TCP/IP Master
Modbus RTU/TCP Slave Ports
Modbus RTU/ASCII Master Ports
Redundant System
Redundant Communication System


Redundant System with iDCS-8000
Redundant System with Ethernet I/O
Redundant System with RS-485 I/O

  Note: If there is an error when clicking the table, press "F5" to refresh web page.

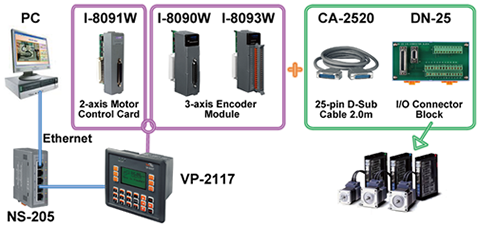

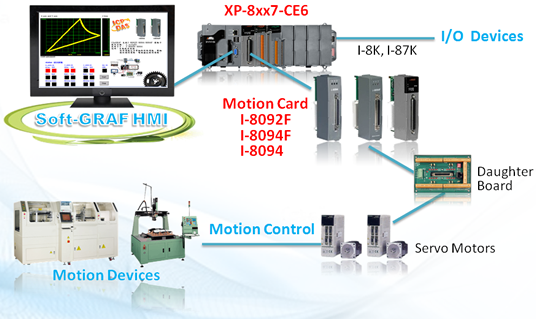

  Motion Control: Using I-8094F/8092F/8094

XP-8xx7
-CE6
WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7
μPAC-
5x07(P)
μPAC-
7186EG(P)
I-7188EG I-7188XG


  I-8094 is a 4-axis high speed motion control module.
  I-8094F (4-axis) and I-8092F (2-axis) are high speed motion control modules with FRnet master.
  User can achieve HMI design, I/O control and motion control within the ISaGRAF software.
  More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 132.





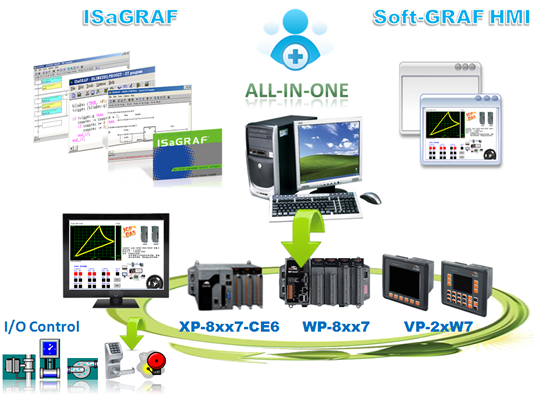

  Soft-GRAF: Create A Colorful HMI in the ISaGRAF PAC (PowerPoint download: Update: 2010, Oct. 11)

XP-8xx7
-CE6
WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7
μPAC-
5x07(P)
μPAC-
7186EG(P)
I-7188EG I-7188XG


  All-in-one Design:
   Design the control logic and HMI by single ISaGRAF software.



Support various and colorful HMI objects:

  • Page (Max. 200, support password security)
  • Numeric (Input, input security, display)
  • Text (Dynamic/static text display)
  • Picture (Animated/static picture display)
  • Moving Trace (1-axis or 2-axis)
  • Built-in various objects (Will be more)
  •
      Multi-language:
       English, Traditional Chinese, Simplify Chinese, etc.

      HMI behave smoothly
      More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 131.





      ISaGRAF PAC connects the Intelligent Power Meter PM-2133/2134

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7
    μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG

      Support standard Modbus protocol, support multiple RS-485 ports to connect to multiple PM-213x Smart meters.
      For the power measurement control systems in small/medium sized stores, buildings and factories with electric equipments.
      PM-213x smart meter with "Wh" pulse output is useful in the systems needing to connect the meter tester.
      PM-213x smart meter with wired clip-on CT is easily wiring for on-line installation, suitable for the uninterruptible power systems.
      PM-213x is a series of 3 Phase/4 Loops 1 Phase Compact Smart Meter with true RMS energy and power parameters measurement in
       compact size. The ISaGRAF PACs combining with PM-213x can apply to various control/monitor systems about intelligent electric power
       measurement.

      More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 129.

      ISaGRAF with smart meter

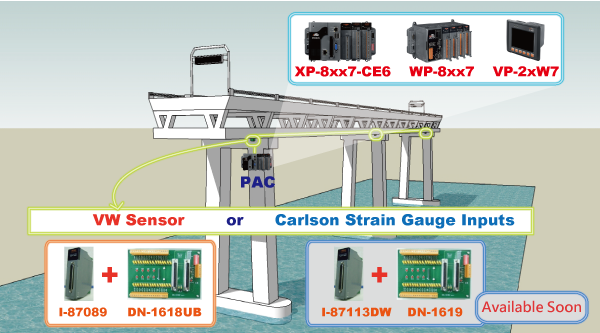

      Stress Monitoring Application of Constructions

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      ICP DAS releases effective "VW Sensor" (Vibration Wire solution) and "Carlson Strain Gauge Inputs" solution . It's useful for measuring
       the stress of constructions like building, bridge, dam, etc.

      Each ISaGRAF PAC (as FAQ-091) supports the I-87089 (the VW master card) plus the DN-1618UB (daughter board) to achieve the
       "VW Sensor" application.

      Each XP-8xx7-CE6, WP-8xx7 or VP-25W7/23W7 supports the I-87113DW module (the master card of Carlson Strain Gauge Inputs) plus
       the DN-1619 (DN-1618U-Test1) (daughter board) to achieve the "Carlson Strain Gauge Inputs" application.

      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 091, 128 for more information.

      Stress Monitoring Application of Constructions

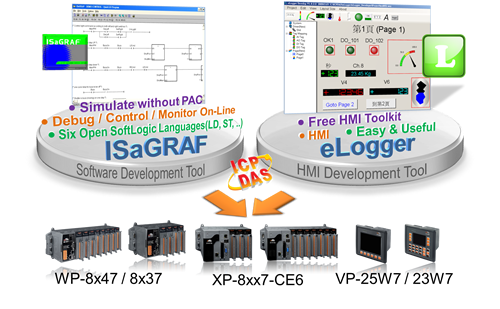

      eLogger HMI Application

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      ICP DAS eLogger is an easy and useful HMI development tool which helps user to create user-friendly pictures and control items.
      Please refer tooldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 115 : "Working eLogger HMI with ISaGRAF SoftLogic in the
       WP-8xx7, VP-2xW7 and XP-8xx7-CE6 PAC" for more information about programming an eLogger application.


      eLogger HMI Application



      Redundant Communication System

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      Please refer to oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 119 for more information about RS-485 and
       Ethernet redundant communication mechanism and applications.


      Redundant Communication System

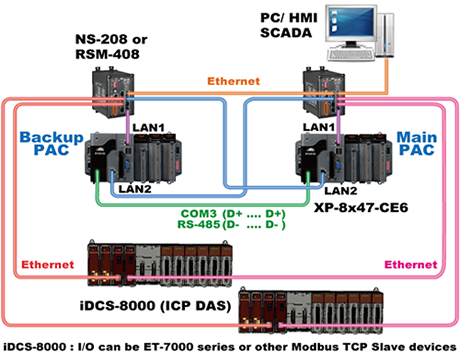

      Redundant System with iDCS-8000

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7
    μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG


      Dual PACs, dual Ethernet ports redundant system.
      PC/HMI can just connect one IP address to link to the redundant system. If the active PAC is damaged, it will take about 0.5 seconds
       to switch to the other PAC.

      iDCS-8000: Dual power board, dual MCU, dual Ethernet port, dual I/O board redundant and with hot-swap function.
      More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 125.

      Redundant System with iDCS-8000

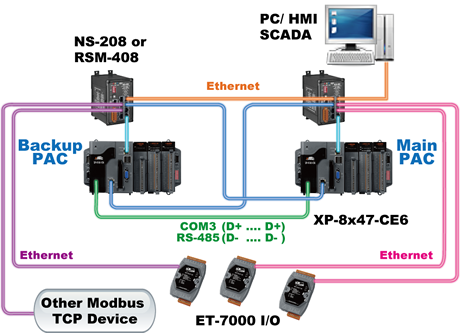

      Redundant System with Ethernet I/O

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG







      If one Ethernet cable is broken or damaged, the other one will still handle the Ethernet I/O and exchange data with the other
       redundant controller.

      The scan of Ethernet I/O is much faster than that of RS-485 I-7000 or I-87K I/O.
      More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 125.


      New Hot-Swap and Redundant System



      Redundant System with Hot-Swap RS-485 I/O

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      If one Ethernet cable of WP-8xx7 is broken or damaged, the other one will still work.
      If one controller is dead, the other one will take over the control of the RS-485 I/O.
      PC/HMI can connect to this redundant system by one or two active IP.
      Hot Swap I/O. (Apply to RU-87P1/2/4/8 with I-87K High profile I/O cards only)
      More at oldweb.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 093, 125.


      New Hot-Swap and Redundant System

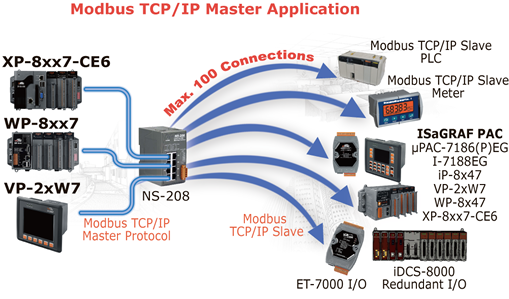

      Modbus TCP/IP Master

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P))
    I-7188EG I-7188XG



      Each XP-8xx7-CE6, WP-8xx7 or VP-25W7/23W7 supports to link to max. 100 Modbus TCP/IP slave devices.
      It support various standard Modbus TCP/IP Slave devices.
      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 113 for more information.

      Modbus TCP/IP Master

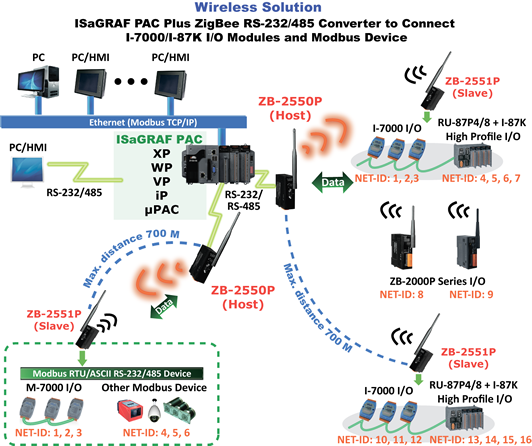

    ZigBee Wireless Solution

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG


      ISaGRAF PAC plus ZB-2550P and ZB-2551P (ZigBee to RS-232/485 Converters) can apply wireless communication, reduce the wiring cost,
       and achieve the mission of remote I/O control and data acquisition.

      Please clickoldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 110 for more information.

      ZigBee Wireless Solution


    Top

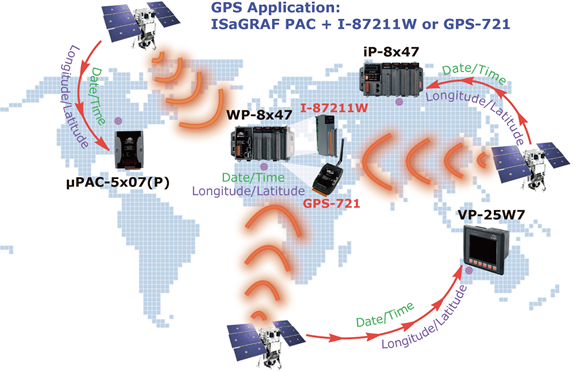

      GPS Applications: ISaGRAF PAC plus I-87211W or GPS-721

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-7186EG(P) I-7188EG I-7188XG

        (Note)

      WP-8xx7, iP-8xx7, XP-8xx7-CE6, VP-2xW7, μPAC-7186(P)EG, μPAC-5x07(P) can support one GPS-721/I-87211W as GPS I/O.

         (The PAC can communicate with the GPS-721 by RS-485/232; the I-87211W can plug into PAC units or Remote I/O Expansion units)
      For doing auto-time-synchronization and getting local Longitude and Latitude.
      Please clickoldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 107 for more information.
      More GPS receivers at oldweb.icpdas.com > Products > Wireless Modem. GSM/GPRS/ZigBee > GPS receiver.
         Note:  μPAC-5107(P), μPAC-5307 has built-in GPS function.

      ISaGRAF PAC plus I-87211W or GPS-721

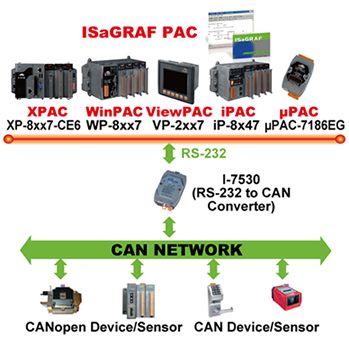

      Integrate with CAN/CANopen Devices and Sensors

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      XP-8xx7-CE6 supports max. 32 I-7530 (RS-232 to CAN) converters.
      VP-2xW7, WP-8x37/8x47 supports max. 10 I-7530 (RS-232 to CAN) converters.
      VP-2117, iP-8x47, μPAC-7186EG, μPAC-5x07(P) supports max. 3 I-7530 (RS-232 to CAN) converters.
      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 086 for more information.

      CAN/CANopen



      Send Email with One Attached File

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      ISaGRAF PAC can send Email with one attached file via Ethernet Port. The maximum file size is about 488K bytes.
      One Email can send to 10 receivers at one sending.
      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English)- 067 & 077 for more information.

      Send Email

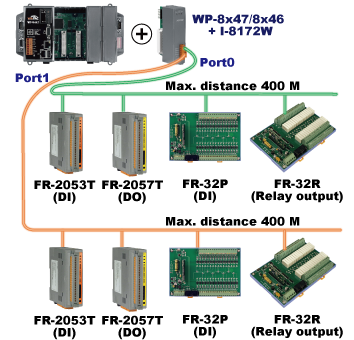

      An Easy Way to Program the Fast FRnet Remote I/O Modules

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      Fast I/O scan: About 3 ms per FRnet scan.  (This depends on your ISaGRAF PLC program's scan time, if the ISaGRAF PLC scan time is 9 ms,
       then the scan time for all will be 9 ms, instead of 3 ms.)

      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 082 for more information.

      Fast FRnet Remote I/O Modules

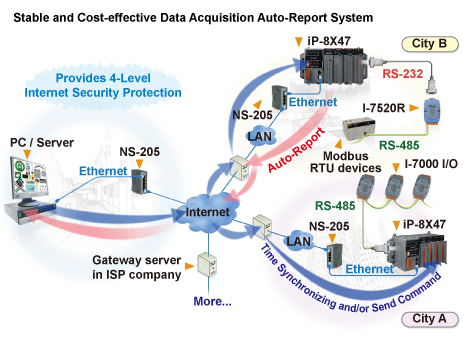

      Data Acquisition Auto-Report System

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P))
    I-7188EG I-7188XG



      VC++ 6.0, VB 6.0 and ISaGRAF demo programs are available.
      ISaGRAF PACs can use UDP/IP Client protocol to auto-report acquisition data & control data to local or to remote internet PC/Server.

         Advantage: Each PAC in the different location doesn't require a fixed Internet IP.
      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 065 for more information.

      Data Acquisition Auto-Report System

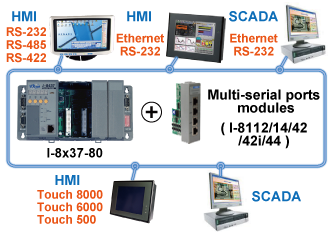

      Modbus RTU/TCP Slave Ports

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG

    (Note)

      Modbus RTU (RS-232/485/422) : Max. 9 PC/HMI/SCADA connections
          VP-2117, iP-8x47, μPAC-5x07(P), μPAC-7186EG, I-8x17, I-8x37-80 and I-7188EG/XG : Max. 2 Modbus RTU Slave ports
          VP-2xW7, WP-8x37/8x47 : Max. 5 Modbus RTU Slave ports
          XP-8xx7-CE6 : Max. 9 Modbus RTU Slave ports

      Modbus TCP/IP : Max. 64 PC/HMI/SCADA connections
          I-8x37-80 and I-7188EG : Max. 4 Modbus TCP Slave connections
          VP-2117, iP-8x47, μPAC-5x07(P), μPAC-7186EG : Max. 6 Modbus TCP Slave connections
          VP-2xW7, WP-8x37/8x47 : Max. 32 Modbus TCP Slave connections
          XP-8xx7-CE6 : Max. 64 Modbus RTU Slave ports

         Note:  The I-7188XG doesn't support Modbus TCP/IP Slave Port.

      Modbus RTU/TCP Slave Ports



      Modbus RTU/ASCII Master Ports

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG


      Modbus RTU/ASCII (RS-232/485/422) : Max. 33 Modbus device connections
          VP-2117, iP-8x47, μPAC-5x07(P), μPAC-7186EG, I-8xx7, I-8x37-80 and I-7188EG/XG : Max. 2 Modbus RTU Master ports
          VP-2xW7, WP-8x37/8x47 : Max. 10 Modbus RTU Master ports
          XP-8xx7-CE6 : Max. 33 Modbus RTU Master ports

      Modbus RTU/ASCII Master Ports

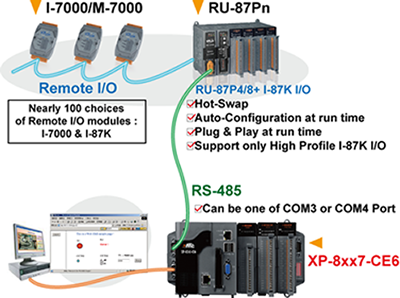

      Remote I/O Modules and Expansion module/board

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG


      There are about 100 choices of Local I/O boards (I-8K, I-87K) and Remote I/O modules (I-7K, M-7K and RU-87P1/2/4/8 +
       I-87K
    High Profile cards).


      Expansion module/board
      The XP-8xx7-CE6 (add COM6 ~ 33), WP-8xx7, VP-2xW7 (add COM5 ~ 14), VP-2117 (add COM5 ~ 16), iP-8x47 (add COM5 ~ 20)
       supports RS-232/422/485 expansion module (I-81xxW). more

      The I-8xx7 (add COM5 ~ 20) supports RS-232/422/485 expansion module (I-81xx). more
      The μPAC-5x07(P) has an I/O expansion bus which can plug One I/O expansion board (XW-board). more
      The μPAC-7186EG(P), I-7188EG, I-7188XG has an I/O expansion bus which can plug One I/O expansion board (X-board). more


    Remote I/O modules The Features of RU-87Pn (Remote I/O Expansion Unit)
    Hot Swap
    Auto-Configuration - Configurations of I-87K I/O modules can be pre-configured and stored in the nonvolatile memory of the RU-87Pn.
    Easy Duplicate System - Using the DCON Utility, you can easily make a backup of the I-87K module configurations and write to another RU-87Pn.
    Full Software Support - The free-of-charge software utility and development kits are included.




    Top


      SMS: Short Message Service

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG

    (Note)


      The ISaGRAF PACs can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or
       perform control tasks for the ISaGRAF PAC via his personal cellular phone. In addition, the controller can also send information and alarms
       to user's cellular phone.

      The short message can be sent in multiple language format (like Chinese, English, ...... others).
      Please click oldweb.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 111 for more information.
         Note:  μPAC-5207/5307 has built-in GPRS, no external GSM/GPRS modem required.

      Short Message Service

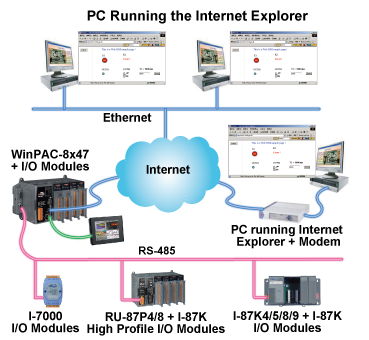

      Multiple Web HMI - Monitor & Control Everywhere!

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      The Web HMI is a free software mechanism coming with some ICP DAS's PAC (Programmable Automation Controller). The Web HMI offers
       functions that you could monitor or control the local or remote controller via the Internet Explorer running on your PC. ( How to use ? )


      Multiple Web HMI



      Motion Control

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      One I-8091W can control 2-axis: X-Y plane, or 2 independent axes.
      Two I-8091W can control 4-axis: X-Y plane + 2 independent axes or 4 independent axes.
      Encoder Modules I-8093W : 3-axis (FAQ-112) ; I-8084W: 4-axis, without Z-index (FAQ-100) ; I-8090W: 3-axis

      Motion



      Data Recorder and Data Logger

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG


      Data, date & time can be stored (e.g., Battery Backup SRAM, Flash & microSD card, optional X-board, XW-board, etc.) and then PC can load
       these data via communication interface. (e.g., RS-232, RS-485, Ethernet, etc.)


      Data Logger



      Data Exchange: Fbus or Ebus

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG

    (Note) (Note)

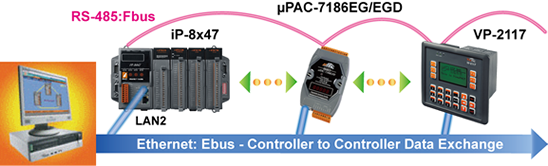

      Fbus ( RS-485 Network )
       Each ISaGRAF PAC can use its RS-485 port to talk to each other via the Fbus communication mechanism. Fbus can be used to broadcast
       data to each controller or each controller can request to send or receive data from any other controller on the same Fbus network.

      Ebus ( Ethernet Network)
       Each ISaGRAF PAC can use its Ethernet port to talk to each other via the Ebus communication mechanism. When PC is talking with
       controllers via Ethernet, the controllers can also talk to each other via the same Ethernet; It makes the configuration more flexible and
       faster.

         Note: I-8x17, I-7188XG doesn't support Ebus.

      Data Exchange




      Detect Hot-Swap I-87K (High Profile) I/O Status

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



      In ISaGRAF Workbench, you must connect the I/O board to the "I/O connection" windows correctly and select the "io_state" board then you
       can observe the I/O status. When you Hot-Swap the I-87K (High Profile) I/O, the message will show on the front panel of ISaGRAF PAC.


      io_state



      VIP Communication Security

    XP-8xx7
    -CE6
    WP-8xx7 VP-2xW7 VP-2117 iP-8x47 I-8xx7 μPAC-
    5x07(P)
    μPAC-
    7186EG(P)
    I-7188EG I-7188XG



       Set VIP (Very Important IP No.) for Modbus TCP/IP security.

      VIP Communication Security



    Copyright© ICP DAS Co., Ltd. All Rights Reserved
