Features
  • Support multiple communication interface

    • RS-485 (Modbus RTU)

    • Ethernet (Modbus TCP)

    • CAN bus (CANopen)

  • Bi-directional kWh metering function for accurate measurement of power consumption and generation data

  • Compact in size and easy to install, suitable for various industrial sites

  • Available with CT for accurate metering, accuracy better than 0.5% (PF=1)

  • Clip-on CT for easy installation

Single-phase/3 Phases/Multi-circuit Smart Power Meter
Model Phase Loop Bi-dir. Energy
(Note 6)
CT Included Max. Voltage Max. Current Max. CT ID Cable Length
RS-485 Ethernet CAN bus
Modbus/RTU Modbus/TCP EtherNet/IP CANopen
PM-3112-xxx PM-3112-xxx-MTCP PM-3112-xxx-CPS Single 2 - Yes 300 V 200 A 24 mm 1.8 m
PM-3114-xxx PM-3114-xxx-MTCP PM-3114-xxx-CPS 4
PM-3112-xxxP PM-3112-xxxP-MTCP PM-3112-xxxP-CPS Single 2 - Yes 300 V 200 A 24 mm 4 m
PM-3114-xxxP PM-3114-xxxP-MTCP PM-3114-xxxP-CPS 4
PM-2133D-xxxP
(with LED Display)
PM-2133D-xxxP-MTCP
(with LED Display)
- Three 1 Yes Yes 500 V 400 A 36 mm 4 m
PM-3033 PM-3033-MTCP PM-3033-CPS Three 1 Yes - 500 V 5 A - -
PM-3133P PM-3133P-MTCP PM-3133P-CPS Three 1 Yes - 500 V 333 mV - -
PM-3133-xxx PM-3133-xxx-MTCP PM-3133-xxx-EIP PM-3133-xxx-CPS Three 1 Yes Yes 500 V 400 A 36 mm 1.8 m
PM-3133-xxxP PM-3133-xxxP-MTCP PM-3133-xxxP-EIP PM-3133-xxxP-CPS 500 V 4 m
PM-3133i-xxxP
(Note 5)
PM-3133i-xxxP-MTCP PM-3133i-xxxP-EIP PM-3133i-xxxP-CPS 600 V 4 m
PM-3133-RCTxxxxP PM-3133-RCTxxxP-MTCP PM-3133-RCTxxxP-EIP PM-3133-RCTxxxP-CPS Three 1 Yes Yes 500 V 4000 A 185 mm 4 m
PM-4324P PM-4324P-MTCP PM-4324P-CPS Single/
Three
24/8 Yes - 500 V 333 mV - -
PM-4324-xxxP
(1 main circuit)
PM-4324-xxxP-MTCP
(1 main circuit)
PM-4324-xxxP-EIP
(1 main circuit)
PM-4324-xxxP-CPS
(1 main circuit)
Single/
Three
24/8
(Note 4)
Yes Yes 500 V 400 A 36 mm 4 m
PM-4324A-xxxP
(1 or 2 main circuit)
PM-4324A-xxxP-MTCP
(1 or 2 main circuit)
PM-4324A-xxxP-EIP
(1 or 2 main circuit)
PM-4324A-xxxP-CPS
(1 or 2 main circuit)
500 V
PM-4324D-xxxP
(with LCD Display)
PM-4324D-xxxP-MTCP
(with LCD Display)
PM-4324D-xxxP-CPS
(with LCD Display)
600 V
Note 1: Maximum CT cable length can be extend to 8 m.

(except for Rogowski Coil CT), and the accuracy does not decrease.
[We suggest to use twisted pair cable AWG18-14, sectional area from 0.75 ~ 2.0mm2.]

Note 2: The end of power meters with -xxx or -xxxP means the specification of the CT. Users can choose the suitable one based on difference of current range and cable section area.

Note 3: The end of power meters with -xxxP, the P means CT has built-in circuit protection to prevent CT from secondary open-circuit danger to human.

Note 4: The PM-4324A has 2 separate main circuit inputs that can use in the different power system.

Note 5: Built-in AC isolator protection, this means total isolation between the AC measurement side and the control side.

Note 6: [Bi-dir. Engergy] stands for [Bi-directional Energy].

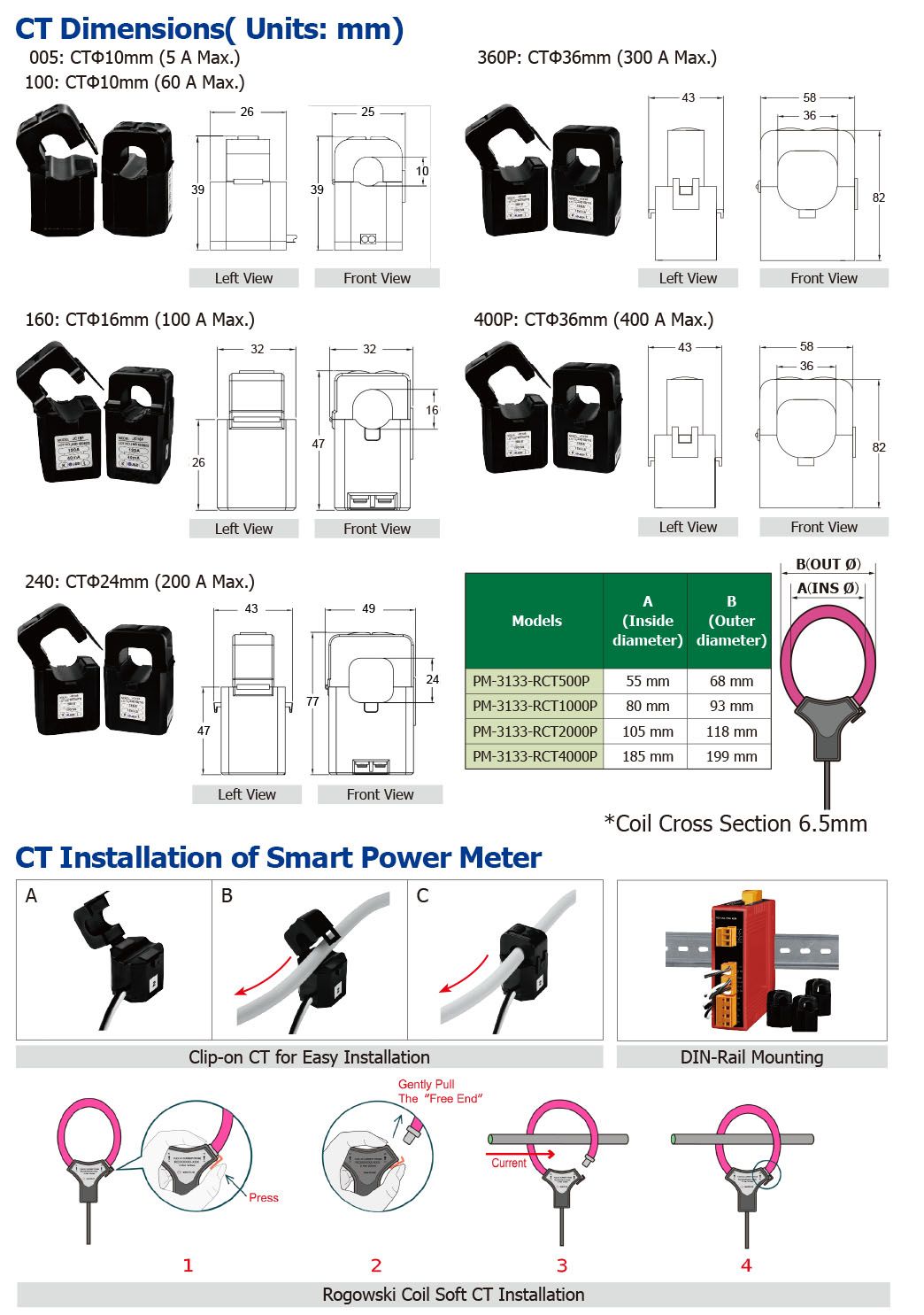

CT Dimensions (Units: mm)










CT Installation

Power Meter Utility

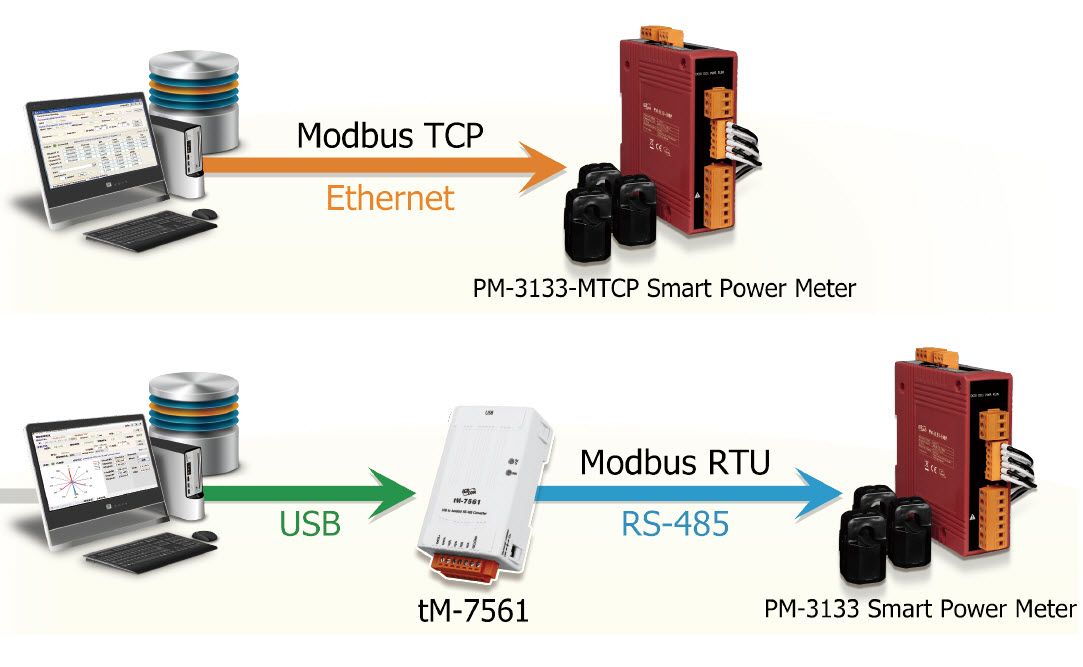

  • By Modbus RTU or Modbus TCP protocol, it enables to connect with ICP DAS Power  Meters and data retrieving.
  • Real time monitor power measurement values of the meter.
  • Real time setting up parameters of the meter.
  • Restore the parameters of the meter to default settings.
  • Support Data Log function.
Power Meter Utility has to be installed on PC and it enables to retrieve and display the power measurement values that measured by power meter via COM Port or Ethernet. The users will be able to read the power measurement values and to perform parameter settings of the meter.

CANopen Master Utility



For CANopen master devices, ICP DAS provides a friendly CANopen master utility tool to help users to test and set CANopen slave devices easily. This utility tool can function as a simply CANopen master tool for controlling CANopen devices on the CANopen network. It provides several functions, such as NMT protocol, SYNC protocol, EMCY protocol, SDO protocol, PDO protocol, and so forth.

It features:

1. Auto-scan all the CANopen master that the CPMUtility has supported.
2. Auto-scan all the CANopen slave devices on the CANopen network.
3. Support EDS file.
4. Dynamic PDO object setting easily.
5. Node Guarding Event and Heartbeat Event detection.
6. EMCY message receiving.
7. Maximum 5 SYNC message producers per CANopen master.
8. Support I-8123W, I-87123, PISO-CPM100(U), I-7565-CPM and PISO-CAN/ PEX-CAN/PCM-CAN CPM Libraryfor version 2.00 later.
9. Support OS: WinCE5.0/CE6.0/XPe and Win2K/XP/Vista/732-bit system.
