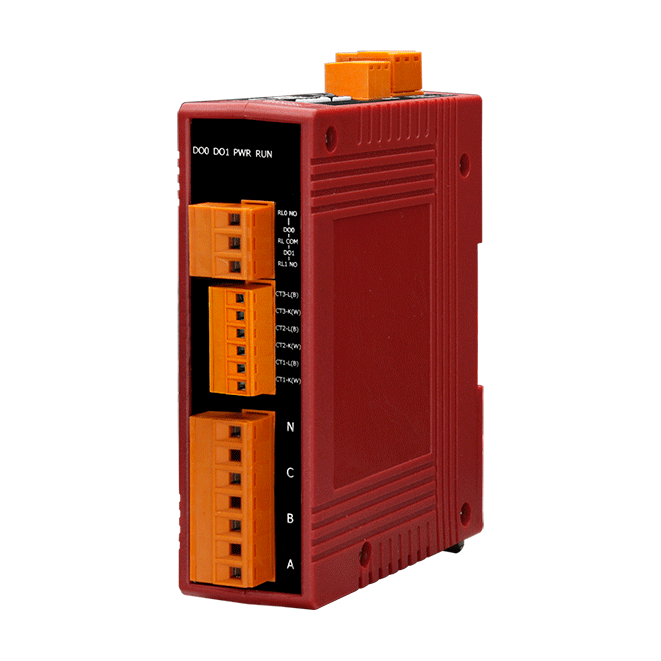

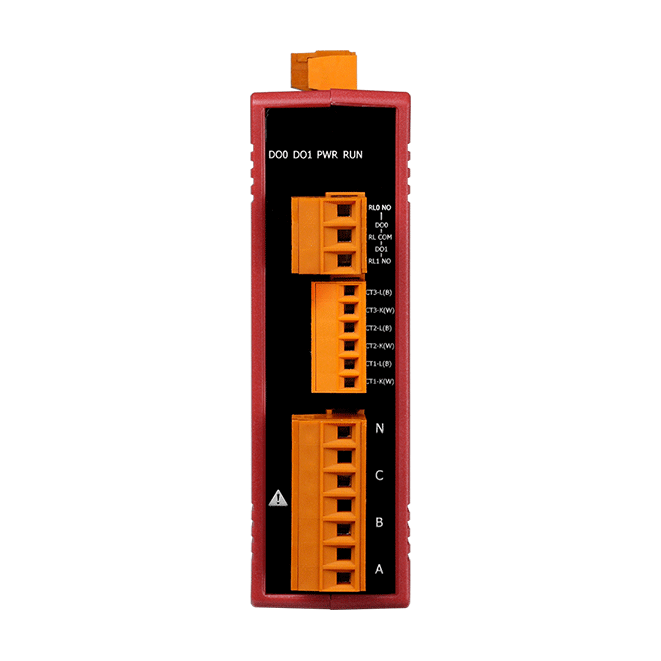

PM-3133P-CPS
3-phase Smart Power Meter, CANopen
Features
• Bi-directional Energy
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Supports CTs with 333 mV voltage output
• Voltage Measurements Up to 500 V
• Total Harmonic Distortion (THD)
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Supports CTs with 333 mV voltage output
• Voltage Measurements Up to 500 V
• Total Harmonic Distortion (THD)
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1
Introduction
ICP DAS offers the powerful and cost-effective PM-3133P series Smart Power Meters, providing real-time measurement data for three-phase power systems. The PM-3133P series is suitable for both low-voltage primary-side and medium/high-voltage secondary-side applications, allowing users to obtain reliable and accurate energy consumption data and perform real-time equipment monitoring and control. It supports a wide input voltage range of 10 to 500 VAC,making it compatible with international voltage standards. The device features two relay output channels, which can be integrated with sirens or lighting systems to issue alarm notifications when abnormal power conditions are detected.The PM-3133P does not include current transformers (CTs) by default, allowing users to choose their own 333 mV output CTs to meet various application requirements. However, Rogowski coils are not supported.
Applications
• Generator monitoring
• Switchgear distribution systems
• Energy Management
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | Supports 333 mV output CTs; actual current range depends on CT’s primary rating |
| Input Frequency | 50/60 Hz |
| W Accuracy | Accuracy is approximately 2–5% (PF = 1), depending on the CT used. The CT ratio must be set correctly |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
|---|---|
| Channels | 2 |
| Type | Power Relay |
| Contact Rating | Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| CANopen | |
|---|---|

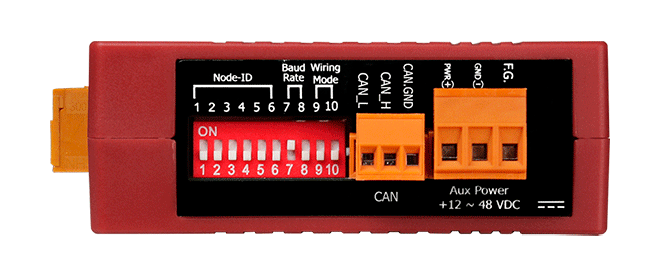

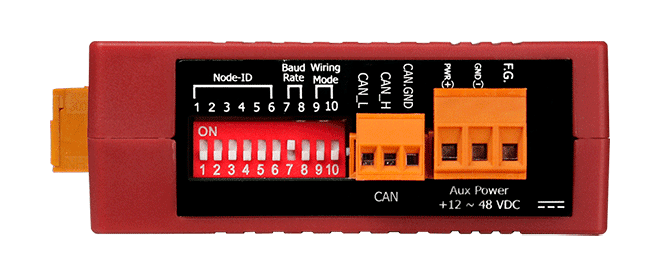

| Baud Rate | 125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable |
| Isolation | 3000 VDC |
| Protocol | CANopen |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 100 x 127 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
