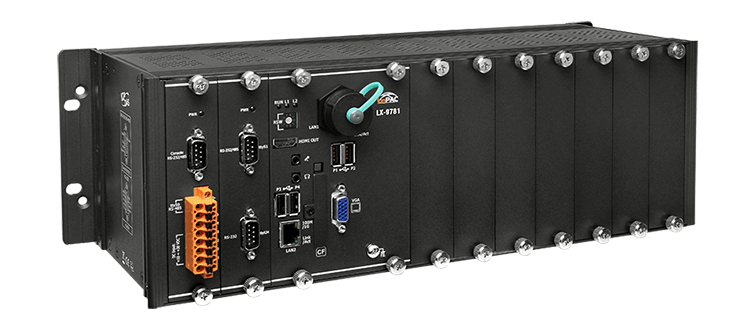

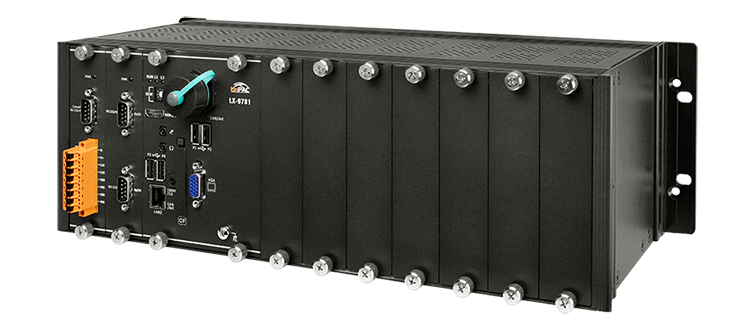

LX-9781
7-slot Linux Based PAC with E3845 CPU
Features
• E3845 (1.91 GHz) CPU
• Linux kernel 4.14.12 Inside
• Supports VGA and HDMI dual display
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (RS-232, RS-485)
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Linux kernel 4.14.12 Inside
• Supports VGA and HDMI dual display
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (RS-232, RS-485)
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
Introduction
The LX-9x8x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. User's programs can be saved in external storage device, such as CF Card or USB mass storage device.
LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.
LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux kernel 4.14.12 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
|---|---|
| CPU | E3845 (1.91 GHz, quad core) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF socket with one 16 GB CF card (support up to 32 GB) |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA (Analog RGB), HDMI |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
|---|---|
| Status | 2 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-9K, I-97K series |
| Slots | 7 |
| HMI | |
|---|---|
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
|---|---|
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (Console, 3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
|---|---|
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 20.4 W (0.85 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 422 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
