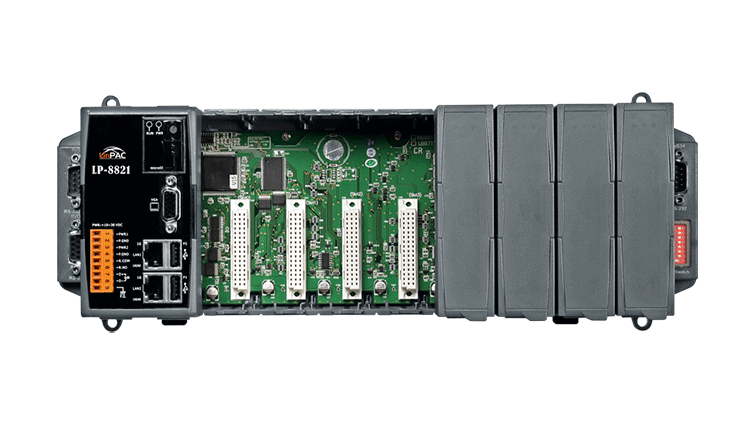

LP-8821
8-slot Linux Based PAC with Cortex-A8 CPU
Features
• Cortex-A8 (1.0 GHz) CPU
• Linux kernel 3.2.14 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number
• Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
• Redundant Power Inputs
• Linux kernel 3.2.14 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number
• Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
• Redundant Power Inputs
Introduction
The LP-8x2x is the new generation Linux-based PAC (Programmable Automation Controller) from ICP DAS and is equipped with a Cortex-A8 CPU (1.0 GHz) running a Linux kernel 3.x operation system, multiple communication interfaces (VGA, USB, Ethernet and RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial I/O modules (high profile I-87K series).
Main advantage of the LinPAC-8x2x is its high quality control system, including its stably properties, open source and the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software. The main purpose of LinPAC-8x2x is to allow the numerous enthusiastic Linux users to control their own embedded system easily within the Linux environment.
Main advantage of the LinPAC-8x2x is its high quality control system, including its stably properties, open source and the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software. The main purpose of LinPAC-8x2x is to allow the numerous enthusiastic Linux users to control their own embedded system easily within the Linux environment.

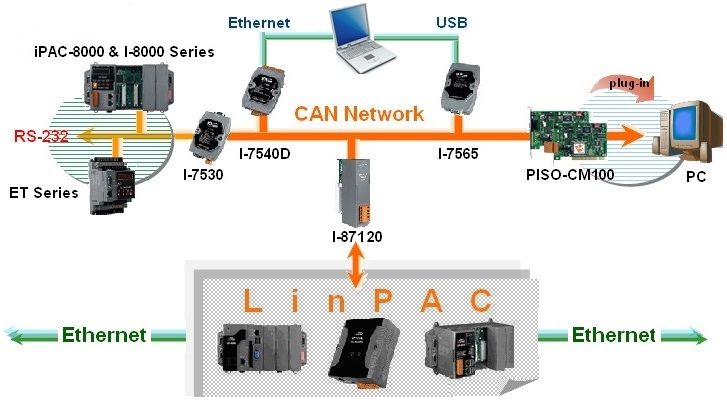

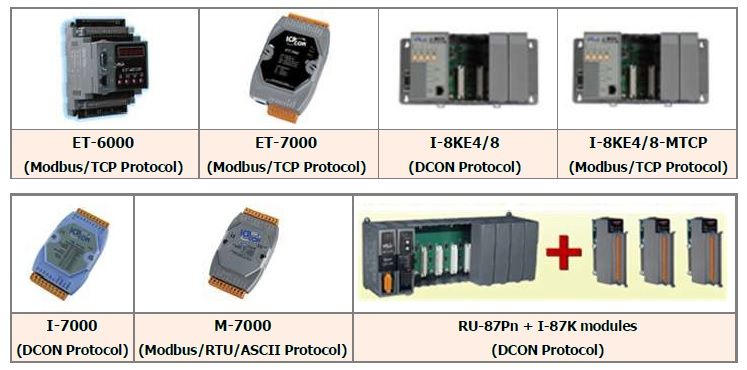

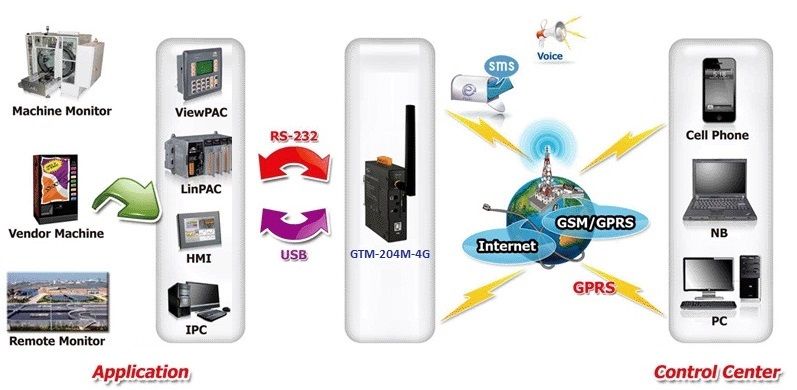

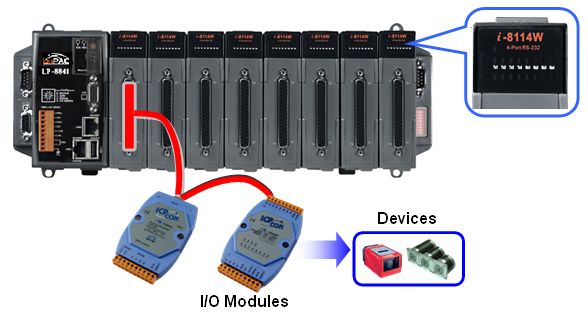

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | Web Server, FTP Server, Telnet Server, SSH Server |
| SDK | Standard LinPAC SDK for Windows and Linux by GNU C language |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | • MRAM 128 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Run (Programmable) |
| I/O Expansion | |
|---|---|
| I/O Type | I-8KW, I-87KW series |
| Slots | 8 |
| HMI | |
|---|---|
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485, Non-isolated |
| USB | |
|---|---|
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
