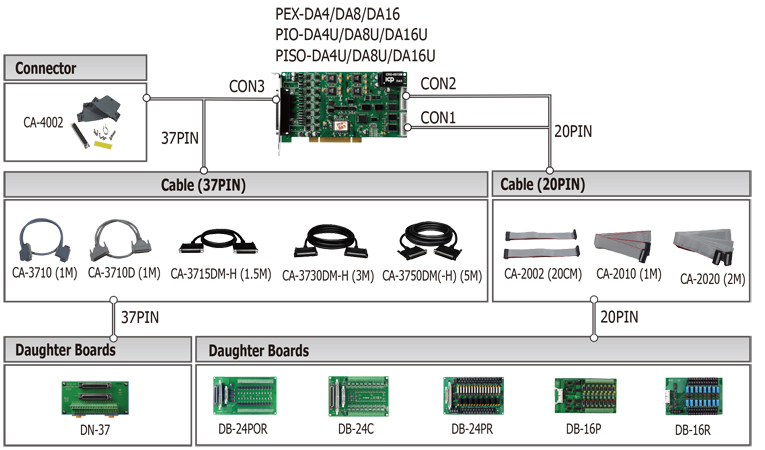

One D-Sub connector, two 20-pin flat cable connectors
Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
[PISO-DA16U/DA8U/DA4U only]
Built-in DC/DC converter with 3000 VDC isolation
Supports both +5 V and +3.3 V PCI bus
2500 VDC bus-type and power isolation protection
Digital input port can be set to pull-high or pull-low
Card ID function
[PIO-DA16U/DA8U/DA4U, PEX-DA16/DA8/DA4 only]
Supports both +5 V and +3.3 V PCI bus for PIO-DA16U/DA8U/DA4U
Supports PCI Express x 1 for PEX-DA16/DA8/DA4
Digital input port can be set to pull-high or pull-low
Card ID function
The PEX-DA, PISO-DAxU and PIO-DAxU series cards (PCI Express/Universal PCI versions) are compatible with the PIO-DAx cards (PCI versions) and most users can replace the PIO-DAx by PEX-DA, PISO-DAxU or PIO-DAxU directly without software/driver modification. Please refer to user manual (ch 1.1) for the compatibility information.
The PISO-DA series adds high-voltage isolation design that offers a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA series featuring 2500 VDC bus-typed isolation! For the PEX-DA, PIO-DA and the PISO-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation:
Accurate and easy-to-use calibration.
ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in EEPROM for long-term use.
Individual channel configuration.
In other words, every channel can be individually configured as voltage output or current output!
Card ID.
ICP DAS provides the card ID function for PEX-DA, PISO-DAxU and PIO-DAxU (version 1.1 or above) series. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.
High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.
DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux and DasyLab.
Model Name
PEX-DA4/DA8/DA16
PIO-DA4U/DA8U/DA16U
PISO-DA4U/DA8U/DA16U
Analog Outputs
Isolation Voltage
N/A
2500 V (Bus Type)
Compatibility
4/8/16 independent
Resolution
14-bit
Accuracy
0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V
Output Range
Voltage: +/- 10 V
Current: 0 ~ 20 mA
Output Driving
+/- 5 mA
Slew Rate
0.71 V/μs
Output Impedance
0.1 Ω max.
Operating Mode
Software
Digital Inputs
Channels
16
Compatibility
5 V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed
200 kHz
1.0 MHz (Typical)
Digital Outputs
Channels
16
Compatibility
5 V/CMOS
5 V/TTL
Output Voltage
Logic 0: 0.1 V max.
Logic 1: 4.4 V min.
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed
200 kHz
1.0 MHz (Typical)
Timer/Counter
Channels
3
Resolution
16-bit
Compatibility
5 V/TTL
Reference Clock
Internal: 4 MHz
General
Bus Type
PCI Express x 1
3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus
8-bit
Card ID
Yes(4-bit)
Yes(4-bit) for Version 1.1 or above
Yes(4-bit)
I/O Connector
Female DB37 x 1
20-pin Box header x 2
PCB Dimensions (L x H)
172.6 mm x 116.4 mm
188 mm x 105.1 mm
188 mm x 105.1 mm
Power Consumption
750 mA@ +3.3 V
350 mA@ +12 V (PEX-DA4)
400 mA@ +12 V (PEX-DA8)
550 mA @ +12 V (PEX-DA16)
600 mA@ +5 V (PIO-DA4U)
800 mA@ +5 V (PIO-DA8U)
1400 mA @ +5 V (PIO-DA16U)
2200 mA @ +5 V (PISO-DA4U)
2400 mA @ +5 V (PISO-DA8U)
3000 mA @ +5 V (PISO-DA16U)
Operating Temperature
0 ~ 60 °C
Storage Temperature
-20 ~ 70 °C
Humidity
5 ~ 85% RH, non-condensing
PCI Express Version
PEX-DA4 CR
PCI Express, 4-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PEX-DA8 CR
PCI Express, 8-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PEX-DA16 CR
PCI Express, 16-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
Universal PCI Version
PIO-DA4U CR
Universal PCI 4-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PIO-DA8U CR
Universal PCI 8-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PIO-DA16U CR
Universal PCI 16-channel D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PISO-DA4U CR
Universal PCI 4-channel isolated D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PISO-DA8U CR
Universal PCI 8-channel isolated D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
PISO-DA16U CR
Universal PCI 16-channel isolated D/A board (RoHS)
Includes one CA-4002 D-Sub connector.
OEM Version
PIO-DA4U/S
PIO-DA4U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
PIO-DA8U/S
PIO-DA8U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
PIO-DA16U/S
PIO-DA16U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
PISO-DA4U/S
PISO-DA4U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
PISO-DA8U/S
PISO-DA8U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
PISO-DA16U/S
PISO-DA16U with DN-37 (RoHS)
Includes one CA-3710 D-Sub cable.
