DB-24POR
24-channel Photo Mos Output Board


Model: DB-24POR







The DB-24POR has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector







  • 24 Photo Mos Relay
  • One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • LEDíŽs indicated relay status
  • Screw terminals for easy field wiring
  • 5,000Vdc optical isolation







  • PhotoMos Relay
  • Turn-on time :0.7ms (typical)
  • Turn-off time: 0.05ms (typical)
  • Output On resistance : 23 ohm (typical)
  • Load voltage : 350V (peak AC)
  • Power dissipation : 500mW
  • Countinuous load current : 0.13A
  • Power Consumption : +5V @0.3A max
  • Dimension : 213mm x 132mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature : -20~70°C
  • Humidity : 5% to 90 % noncondensing







  • On/off control
  • Energy management
  • Test Automation
  • Process Control







DB-24POR 24-channel OPTO-22 compatible Photo-Mos Relay Output Board
Include : CA-5015 (50-pin Flat Cable 1.5m)
DB-24POR/D 24-channel Photo-Mos Relay output Board
Include : CA-3710 (37-pin D-sub Cable 1m)

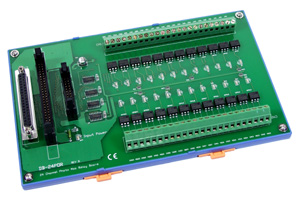

DB-24POR/DIN DB-24POR with DIN-Rail Mounting
DB-24POR/D/DIN DB-24POR/D with DIN-Rail Mounting







CA-2010 20-pin flat cable 1.0m
CA-2020 20-pin flat cable 2.0m
CA-3720 37-pin D-sub connector cable 2.0m



Non-"D" with CA-5015 "D" with CA-3710
