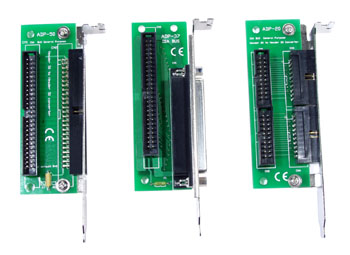

ADP-20 / ADP-37 / ADP-50
Connector Extender


Model: ADP-50 / ADP-37 / ADP-20







  • ADP-20 extends dual 20-pin flat cable
  • ADP-50 extends one 50-pin flat cable
  • ADP-37 converts 50-pin Opto-22 to female DB-37 connector
  • Compatible to 780 series daughter board
  • Dimensions :114 mm x 102 mm







ADP-20 20-pin to 20-pin connector extender for ISA card
Includes one CA-2002( 20-pin flat cable 0.2 m)
ADP-20/PCI 20-pin to 20-pin connector extender for PCI card
Includes one CA-2002( 20-pin flat cable 0.2 m)
ADP-37 50-pin Opto-22 to female DB-37 connector extender for ISA card
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-37/PCI 50-pin Opto-22 to female DB-37 connector extender for PCI card
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-37 CR 50-pin Opto-22 to female DB-37 connector extender for ISA card (RoHS)
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-37/PCI CR 50-pin Opto-22 to female DB-37 connector extender for PCI card (RoHS)
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-50 50-pin to 50-pin connector extender for ISA card
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-50/PCI 50-pin to 50-pin connector extender for PCI card
Include one CA-5002 (50-pin flat cable 0.2 m)
ADP-20 CR 20-pin to 20-pin connector extender for ISA card (RoHS)
Includes one CA-2002 (20-pin flat cable 0.2 m)
