PEX-TMC12A/PCI-TMC12AU
PCI Express/Universal PCI, 12-channel Timer/Counter Board

~ NEW ~

Model: PCI-TMC12AU

~ NEW ~

Model: PEX-TMC12A


Supports the +3.3/+5 V PCI bus for PCI-TMC12AU Supports PCI Express x 1 for PEX-TMC12A 4 onboard 8254 timer/counter chips 12 independent 16-bit timers/counters 12 external clock inputs 12 external gate control inputs 12 timer/counter output channels 16-bit timer/counter can be cascaded to create 32/48-bit timer/counter Gate input can be either an external signal or the output of a previous timer/counter channel Four interrupt sources Two internal clock sources 16 TTL D/I channels and 16 TTL D/O channels Supports Card ID (SMD Switch) Supports DO Status Readback More flexible interrupt mechanism Hardware mechanism for the generation of two starting-clocks

	Note: Refer to the PCI-FC16U card for simple frequency measurement applications.

The PCI-TMC12AU and PEX-TMC12A cards are the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-TMC12A. Users can replace the PCI-TMC12A by the PCI-TMC12AU and PEX-TMC12A directly without software/driver modification.

The PCI-TMC12AU supports both 5 V and 3.3 V PCI bus, while the PEX-TMC12A supports PCI Express bus. They feature twelve 16-bit timers/counters (four 82C54 chips x 3 timers/counters), 16 TTL digital input channels and 16 TTL digital output channels. The two onboard clocks (8 M/1.6 M and 0.8 M/80 K) are jumper selectable and provide a high-resolution clock source for timers/counters. Counters/timers can be used for industrial and laboratory applications such as pulse/event/switch-toggle counting, frequency readings, elapsed time measurement, pulse-width measurement, PWM (pulse-width-modulated) output, and pulse (square wave) and rate generation, etc.

The PCI-TMC12AU and PEX-TMC12A also adds a Card ID switch on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-TMC12AU/PEX-TMC12A cards in one computer.

These cards support a variety of operating systems, such as DOS, 32-/64-bit Windows XP/2003/2008/7/8 and Windows 10. ICP DAS also provides a DLL and Active X control for the PCI-TMC12A/TMC12AU, together with sample programs in various languages, including Turbo C++, Borland C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, enabling help users to quickly and easily develop their custom applications.

DOS Lib and TC sample program (source codes included)
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Model Name	PCI-TMC12AU	PEX-TMC12A
Digital Input
Channels	16
Channels	5 V/TTL
Input Voltage	Logic 0: 0.8 V max. Logic 1: 2.0 V min.
Response Speed	1.0 MHz (Typical)	500 kHz
Digital Output
Channels	16
Compatibility	5 V/TTL
Output Voltage	Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Output Capability	Sink: 24 mA @ 0.8 V Source: 15 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)	500 kHz
Timer/Counter
Channels	12 (Independent x 12)
Resolution	16-bit
Compatibility	5 V/TTL
Input Frequency	10 MHz max.
Reference Clock	Internal: 8 MHz
General
Bus Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz	PCI Express x 1
Data Bus	16-bit
Card ID	Yes (4-bit)
I/O Connector	Female DB37 x 1 20-pin box header x 2
Dimensions (L x H)	150 mm x 105 mm	151.36 mm x 108.71 mm
Power Consumption	500 mA @ +5 V
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 70 °C
Humidity	5 ~ 85% RH, non-condensing

PCI-TMC12AU CR	Universal PCI, 12-channel Timer/Counter Board (RoHS) Includes one CA-4002 D-Sub connector.
PEX-TMC12A CR	PCI Express, 12-channel Timer/Counter Board (RoHS) Includes one CA-4002 D-Sub connector.

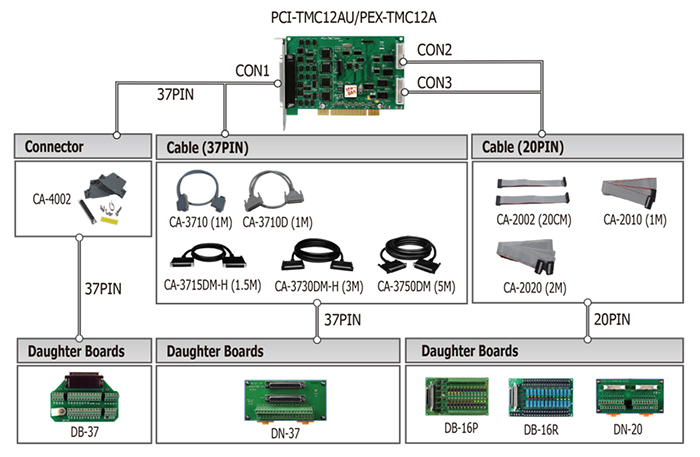

CA-2002	20-pin flat cable, 20 cm x 2
CA-2010	20-pin flat cable,1 M
CA-2020	20-pin flat cable 2 M.
CA-3710	DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D	DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H	DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H	DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM	DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-3750DM-H	DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002	37-pin Male D-sub connector with plastic cover.
DN-20	I/O connector block with DIN-Rail mount.
DN-20/N	DN-20 without DIN-Rail mount.
DN-37	I/O connector block with DIN rail mounting and 37-PIN D-SUB connector on it.
DB-16P	16-channel isolated digital input board
DB-16R	16-channel relay output board
ADP-20/PCI	20-pin connector extender
