PCI-FC16U
Universal PCI, 16-channel Counter/Frequency Board with 32-channel Programmable DIO

~ NEW ~


Universal PCI Interface supports both the 5 V and the 3.3 V PCI bus Supports Card ID (SMD Switch) 16-channel Up Counter or Frequency Measurement. (Pulse Width = 2 μs Min.) Digital Filter: 1 ~ 32767 (μs) 32 Programmable Digital I/O Channels Pull-high and Pull-low Resistors for DI Channels ± 2 kV ESD Protection for each channels

Model: PCI-FC16U

The PCI-FC16U is a 32-bit hardware-type high-speed Counter/Frequency board that supports both the 3.3 V and the 5 V Universal PCI bus. The card provides 16 channels that can be individually configured for either frequency measurement or up-counter applications, and can support high-frequency signals up to 250 kHz. The PCI-FC16U board also includes 32 programmable Digital I/O channels.

The PCI-FC16U board includes an onboard Card ID switch that enables the board to be easily recognized via software if two or more boards are installed in the same computer. The pull-high/pull-low resistors allow the DI status to be predefined as either high or low instead of remaining floating if the DI channels are disconnected or interrupted.

This card support various OS versions, such as Linux, DOS and 32/64-bit Windows 10/8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

DOS Lib and BC sample program (with source codes)
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Model Name		PCI-FC16U
Counter & Frequency
Mode	Counter & Frequency	16-ch Up Counter
	Digital Noise Filter	16-ch Frequency
Isolated Input Leve	ON Voltage Level	+4.5 VDC ~ +30 VDC
	OFF Voltage Level	+1 VDC Max.
Min. Pulse Width		2 μs
Input Frequency		1 Hz ~ (typically ) 250 kHz (both counter mode and frequency mode) where 250 kHz is calculated as followings: Supposed that duty cycle = 50%, refer to Minimum Pulse Duration of High Level, we have pulse period = 2 μs x 2 = 4 μs, which is 250 kHz as a max.
		Max. Frequency: Refer to Min. Pulse Duration of High Level, Max. Frequency is highly affected by duty cycle.
		Frequency Accuracy =± 0.4 %
Isolated Voltage		2500 VDC
ESD Protection		2 kV (Contact for each channel)
Programmable I/O
Channels		32
Digital Input
Compatibility		5 V/TTL
Input Voltage		Logic 0: 0.8 V (Max.) Logic 1: 2.0 V (Min.)
Pull-high/low		Yes
Response Speed		1.0 MHz (Typical)
Digital Output
Compatibility		5 V/TTL
Output Voltage		Logic 0: 0.4 V (max.) Logic 1: 2.4 V (min.)
Output Capability		Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed		1.0 MHz (Typical)
General
Bus Type		3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus		16-bit
Card ID		Yes (4-bit)
I/O Connector		Female DB37 x 1 20-pin box header x 2
Dimensions (L x W x D)		170 mm x 88 mm x 22 mm
Power Consumption		700 mA @ 5 V Max.
Operating Temperature		0 ~ 60 °C
Storage Temperature		-20 ~ 70 °C
Humidity		5 ~ 85% RH, non-condensing

PCI-FC16U CR

Universal PCI, 16-channel Counter/Frequency Board with 32-channel Programmable DIO (RoHS)

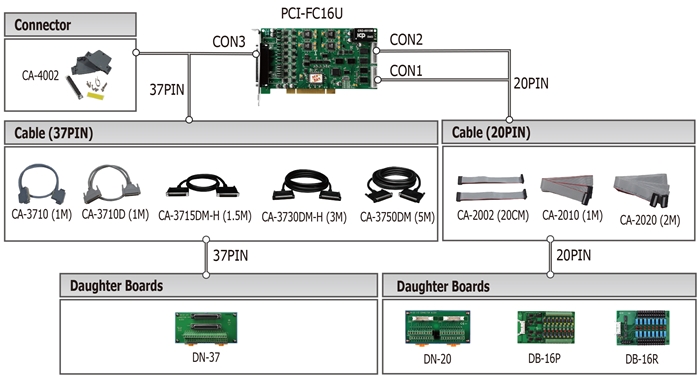

Includes one CA-4002 D-Sub connector.

CA-2002	20-pin flat cable, 20 cm x 2
CA-2010	20-pin flat cable,1 M
CA-2020	20-pin flat cable 2 M.
CA-3710	DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
CA-3710D	DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
CA-3715DM-H	DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
CA-3730DM-H	DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
CA-3750DM	DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
CA-4002	37-pin Male D-sub connector with plastic cover.
DB-16P	16-channel Isolated Digital Input Daughter Board
DB-16R	16-channel Relay Output Daughter Board
DN-37	Screw Terminal Board for D-sub 37-pin Connector
DN-20	20-pin DIN-rail Mounting I/O Connector Board
