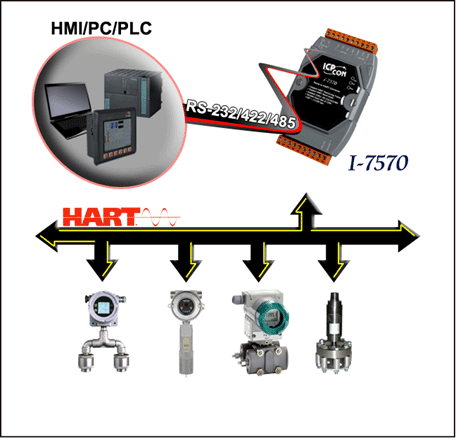

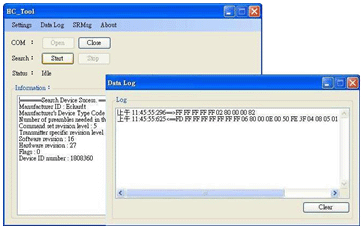

The I-7570 is a Serial to HART converter specially designed for the master device of HART protocol. It allows users to access the HART slave via RS-232/RS-422/RS-485 and the baud rate must be 1200bps. PC, PLC, HMI, PAC can use the serial port to connect I-7570 and access HART device from the HART port of I-7570. In addition, we also provide the utility tool for users to configure the I-7570. Therefore, users can make data collection and processing of HART bus easier and quicker by applying I-7570. The application fields can be HART bus monitoring, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, Petrochemical Industry Application, etc. |
