I-7567
~ NEW ~
USB to HART Converter




The I-7567 is a USB to HART converter specially designed as the master device of HART protocol. It allows users to access the HART slave via virtual COM-port of PC. When connecting I-7567 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7567. In addition, by using the I-7567 utility, users can configure module and test HART communication easily.






  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring






  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide utility tool for module configuration and HART communication
  • No external power supply (powered by USB)
  • Support firmware update via USB
  • Provide PWR / Tx / Rx indication LED
  • 4KV ESD Protection
  • Selectable 250£[ load resistor
  • Support HART OPC Server provided by HART COMMUNICATION FOUDATION
    ( HART OPC Server : http://www.hartcomm.org/hcf/documents/documents_opc.html => for 30 day trial of the full licensed version )
  • Support FDT (Field Device Tool) technique and the below FDT software have been tested OK

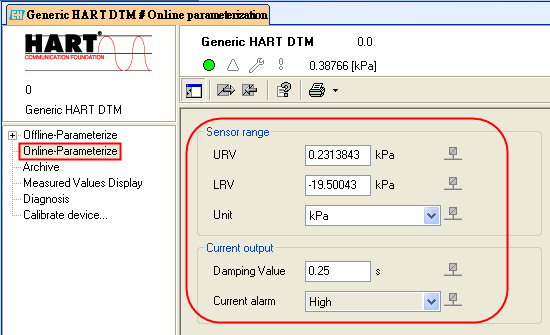

(1) PACTware (PACTware)
(Free download: http://www.pactware.com/en/products/pactware.html)

(2) FieldCare (Endress+Hauser)
(Download: http://portal.endress.com/wa010/FieldCareDownloadGui/)

(3) PDM (Seimens)
(Download: http://support.automation.siemens.com/cn/llisapi.dll?func=cslib.csinfo&objid=35125986&lang=en&siteid=cseus&aktprim=0&objaction=csopen&extranet=standard&viewreg=CN)








  • Search all HART devices automatically
  • Provide HART Universal & Common-Practice command (v6.0) for HART device configuration
  • Provide module configuration and HART communication easily and quickly
  • Provide data logging for HART communication

¡@








USB Interface
USB Port
USB Type B
Compatibility
USB 1.1 and 2.0 standard
Virtual COM Parameter
1200 bps, O(odd parity), 8(data bit), 1(stop bit)
HART Interface
Channel
1
Connector
2-pin screwed terminal block
Terminator Resistor
Selectable 250 £[ terminal resistor
4KV ESD Protection
Yes, Contact for each terminal.
Isolation Voltage
3000 VDC
LED
LED Display
PWR : Power Indicator
Tx : Received Data from USB Indicator
Rx : Received Data from HART Indicator
Power
Power supply
By USB Interface
Power Consumption
Maximum : 1.5W
Software
Driver
Windows 2000 / XP / Vista / 7 (32/64 bit)
Mechanism
Installation
DIN-Rail or Wall Mounting
Dimensions
108 mm x 72 mm x 35 mm (H x W x D)
Environment
Operating Temp.
-25 ¢J ~ +75 ¢J (-13 to 167 ¢K)
Storage Temp.
-30 ¢J ~ +75 ¢J (-22 to 167 ¢K)
Humidity
5% ~ 95%, non-condensing







I-7567
USB To HART Converter (Gray Cover) (RoHS)
