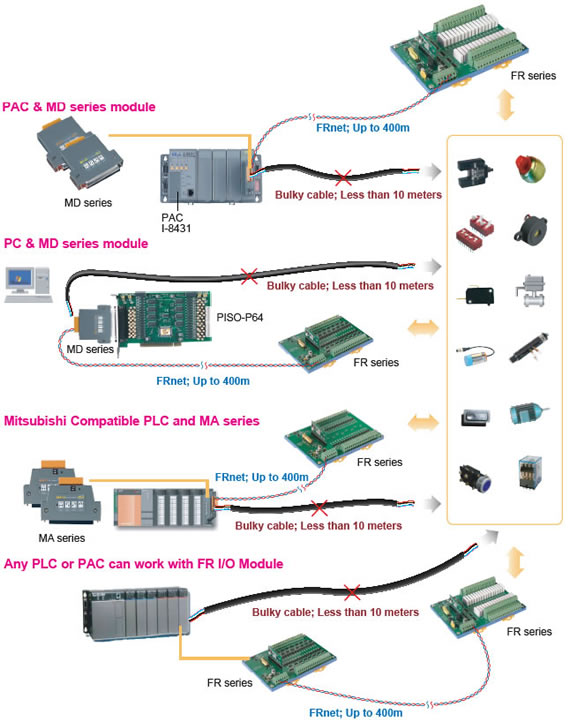

Solutions for Long-distance I/O extension of PAC, PC and PLC
MagicWire modules can extend the digital I/O channles of a PAC, PC or PLC to a remote site via 2-wire FRnet. By using MagicWire modules, there is no need for the user to modify and debug the software. The extension distance can reach 400m. Some specially desogned modules, however, allow it to reach up to 2 Km. The MD series has a 37-pin D-Sub connector and can be used for ICPDAS I/O cards and modules. The MA series has an Fuji 40-pin connector and can be used for Mitsubishi and compatible PLCs. Other types of PLCs or PACs can use an appropriate FR I/O module for long-distance extension of the I/O channels.
|
|
| |
 |
|
| |

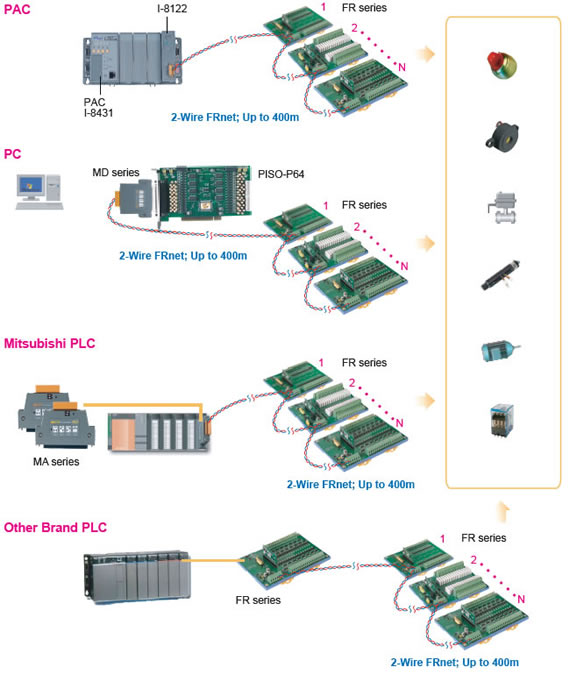

Solution for 1 - N configuration
Besides the 1 to 1 connection, MagicWire can also be used to achieve 1 to N connections. The digital output port of a PAC or a PC I/O card or PLC can be extended to several remote sites via a 2-wire FRnet. In this application, all FR modules should use the same node number. This special feature simplifies some I/O control systems. |
|
| |
|
|
|
|
