Introduction
Two major applications for MagicWire modules are long-distance I/O extension and the networking of PLC, PAC and embedded controllers. MagicWire modules include the MA series, MD series and FR series and it can be widely used from simple non-CPU I/O systems to high-end control systems, such as PAC, PC, PLC...etc. |
|
|
| |
Solutions for long-distance I/O extension of non-CPU I/O systems

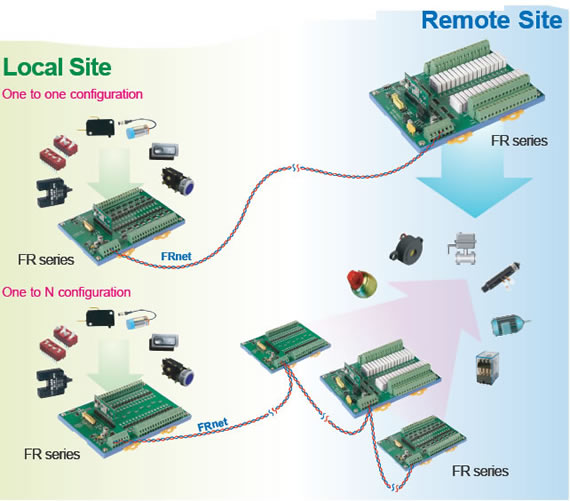

Using an input-type FR series module, non-CPU I/O systems can input a digital signal triggered by either a switches, push buttons, or sensor, then transmit the I/O status to one or several output-type FR series modules via a two-wire cable. The output-type FR series modules then output the digital input data to the corresponding digital output channels, such as a buzzer, lamp, motor, light, or actuator, with a response time of less than 3ms. The control distance for standard module can reach 400m; however, some specially desigened models can reach up to 2 Km. It is very simple to use, with even an un trained user able to use it with 5 minutes of training as these is no need to learn any software programming.
Reduced wiring, easy installation, lower labor costs and higher reliability can be easily achieved. |
|
