    EtherNet/IP

Introduction Page







EIP-2051
~ Available soon ~
Isolated 16-ch DI EtherNet/IP Module




The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2051 is a remote digital input module with 16 inputs. It is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.






  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment




  General Features:
  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • LED display to indicate the inputs status
  • Built-in I/O
    • DI/Counter: 16 Channels
  • RoHS compliant

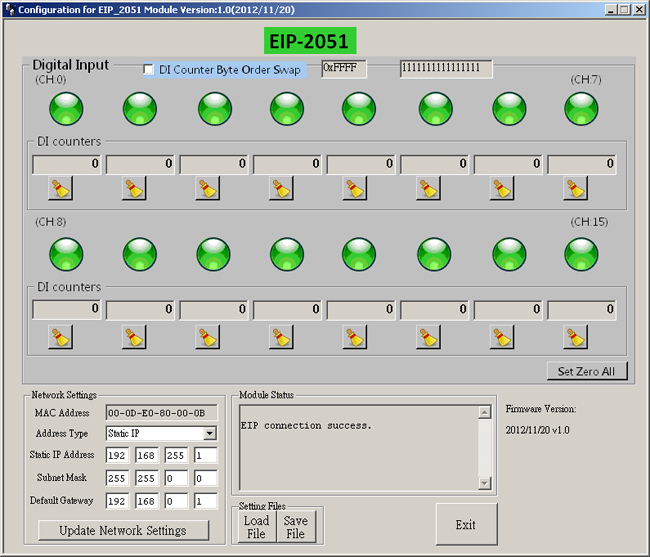

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.

  • Network parameters configuration
  • DI counters inspection
  • Easy test to receive the input status by EtherNet/IP
  • Setting files management







Digital Input
Channels 16
Input Type Dry Contact: Source, Wet Contact: Sink / Source
Dry Contact Level Off Voltage Level: Open
On Voltage Level: Close to GND
Wet Contact Level Off Voltage Level: +4V max.
On Voltage Level: +10 V ~ +50 V
Counters Channels 16
Max. Counts 32-bit (4294967295)
Max. Input Frequency 5KHz
Photo-Isolation 3750 VDC
Communication Interface
Connector 10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection.
Standard Supported IEEE 802.3 Ethernet/IP
Power
Input Voltage Range 10V ~ 30V
Power Consumption 1.6W
Mechanism
Installation DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D)
Environment
Operating Temperature -25℃ ~ +75℃
Storage Temperature -30℃ ~ +80℃







EIP-2051 CR
Isolated 16-ch DI EtherNet/IP Module (RoHS)
