EIP-2019
~ Available soon ~
Isolated 8-ch Thermocouple Analog Input EtherNet/IP module

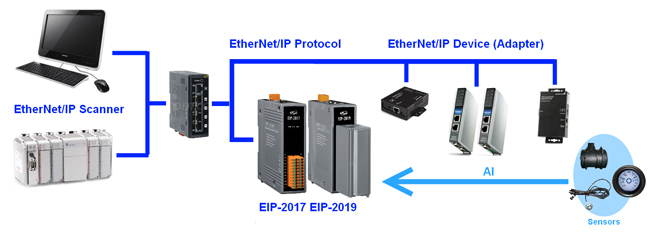

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2019 is an 8-ch remote analog input module. It supports not only voltage and current(internal resistors selectable) input type but also thermocouple type with B,C,E,J,K,N,R,S,T. There is an automatically cold-junction compensation (CJC) for each channel. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2019 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.






  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote diagnosis
  • Testing Equipment




  General Features:
  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • LED display to indicate the I/O status
  • 8-ch analog Inputs
  • Internal resistors (125Ω) selectable
  • Support cold-junction compensation(CJC)
  • RoHS compliant

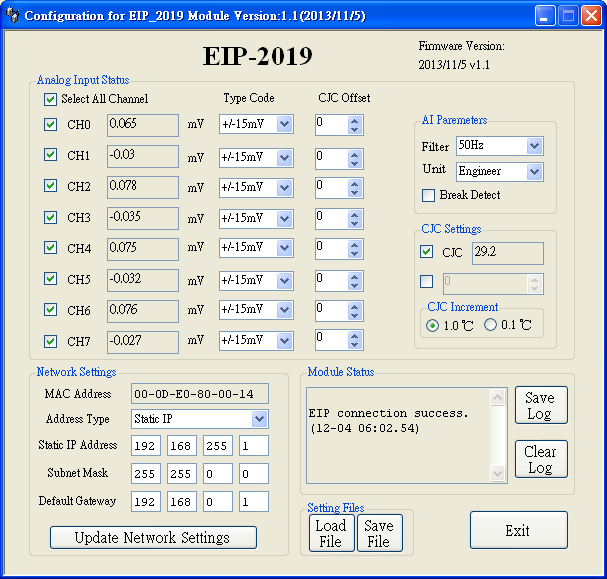

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.

  • Network parameters configuration
  • AI parameters configuration
  • CJC settings adjustment
  • Functions configuration such as Type Code selection
  • Easy test to transmit/receive the I/O status by EtherNet/IP
  • Setting files management







Analog Input
Channels 8-ch Thermocouple Analog Input
Input Type Voltage:¡Ó15 mV, ¡Ó50 mV, ¡Ó100 mV, ¡Ó150 mV, ¡Ó500 mV, ¡Ó1 V, ¡Ó2.5 V, ¡Ó5 V, ¡Ó10 V
Thermocouple :B,C,E,J,K,N,R,S,T
Current : ¡Ó20 mA (Jumper Selectable)
Resolution 24 bits
Sampling Rate 10 samples/ second (1 channel)
Accuracy +/-0.1% (1 channel)
Zero Drift +/-20uV/¢XC
Span Drift +/-25ppm/¢XC
Input Impedance Voltage Input: >400 k£[, Current Input: 125 £[
Intra-Module Isolation, Field-to-Logic 3000 VDC
Overvoltage protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
Communication Interface
Connector 10/100 Base-TX, 8-pin RJ-45 x 2
Support daisy chain connection.
Standard Supported IEEE 802.3 Ethernet/IP
Power
Input Voltage Range 10V ~ 30V
Power Consumption 3.8W
Mechanism
Installation DIN-Rail
Dimensions 110mm x 90mm x 33mm (H x W x D)
Environment
Storage Temperature -30¢J ~ +80¢J
