Model: I-8431
Model: I-8831
Model:I-8431-G
Model:I-8831-G
  I-8431/I-8831
  I-8431-G/I-8831-G

     Ethernet embedded controller
xserver




  Introduction
The I-8431/ I-8831 are ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.

The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.

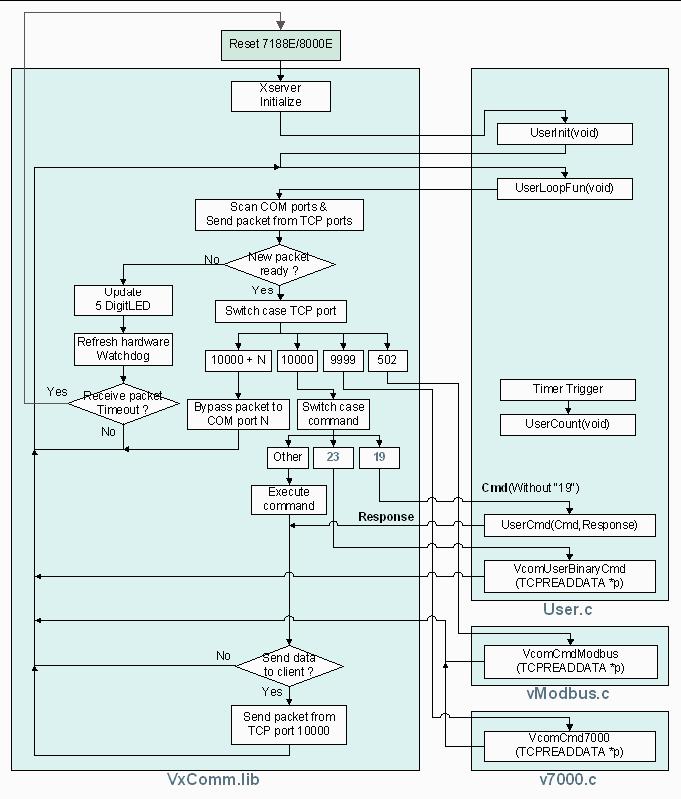

To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.

The I-8431/I-8831are equipped an ethernet port and their back planes are equipped three serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes)battery backup SRAM, they provide data logger storage function.

Note: S256 and S512 are optional accessories.


  back
  Features

  Provide multi Serial Port interface on back plane.
COM1: RS-232
COM3: RS-232/RS-485

COM4: RS-232   Provides a hardware serial number or an ASICKey to protect designated systems.

The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments.
Dual Bus designed to supports I-8K and I-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules
Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O module
  The XServer architecture greatly simplify the programming of
  TCP/IP protocol.

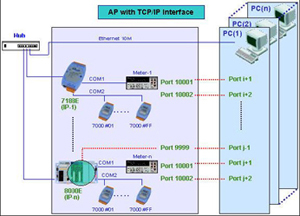

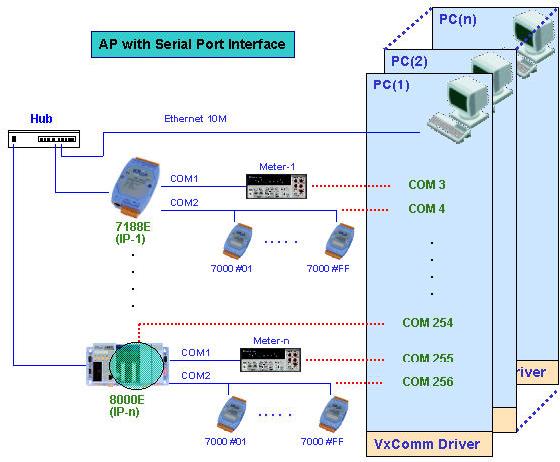

  Supports the VxComm technique for all ports (Serial Port and
  Ethernet Port).

  Firmware updated via the RS-232 port

  Ventilated housing designed to operate between ¡V25¢XC to
  +75¢XC

  Using DIN rail clips or Screw poles around the corners
  allows the control unit to be easily mounted on the control
  box
  Frame Ground provides a path for bypassing ESD, allowing
  enhanced static protection (ESD) capability and ensures that
  the module is more reliable.


  Equipped with MiniOS7, an embedded OS similar to DOS that
  is developed by ICP DAS Co., LTD.

  Provides full C library functions such as 8K, 87K I/O, 7-
  segment LED, RTC (real time clock), EEPROM etc.



  back




CPU module
CPU 80188 or compatible (8-bit and 40MHz)
SRAM 512KBytes
Flash 512KBytes
EEPROM 2KBytes
NVRAM Yes
RTC (real time clock) Yes
Hardware Serial Number Yes
Built-in Watchdog Timer Yes
Communicate Interface
COM 0
Internal communication with the 87K modules
COM 1 RS-232 (to update firmware)
COM 2
-
COM 3
RS-232/RS-485
COM 4 RS-232
Ethernet Port 10BaseT NE2000 compatible
SMMI
5 - Digit LED Display Yes
3 - Programmable LED Indicators Yes
4 - Push Buttons Yes
I/O expansion slots
8431 4 Slots
8831 8 Slots
Dimensions
8431 230 x 110 x 75.5 mm
8831 354 x 110 x 75.5 mm
Operating Environment
Operating Temperature –25°C to +75°C
Storage Temperature –30°C to +85°C
Humidity 5 to 95% RH, non-condensing
Power
Protection Power reverse polarity protection
3KV power isolation -
Power requirement 10 ~ 30 V/DC
Power supply 20W
Power consumption I-8431 : 3.9 W
I-8831 : 5.1 W


  back




I-8431     I-8431 Embedded Controller
I-8831     I-8831 Embedded Controller
I-8431-G     I-8431 Embedded Controller with gray color
I-8831-G     I-8431 Embedded Controller with gray color


  back




S256    256K battery backup SRAM module
S512    512K battery backup SRAM module
KA-52F    AC100~250V input, DC 24V/1A output, flat type power supply
DIN-KA52F    KA-52F with DIN-Rail mount
DP-665    AC 85 ~ 270 V input, DC 24V/1.7A and 5V/0.5A output power supply
DP-660    24V/1.7A 5V/0.5A Power Supply
DP-1200    24V/5A Power Supply
