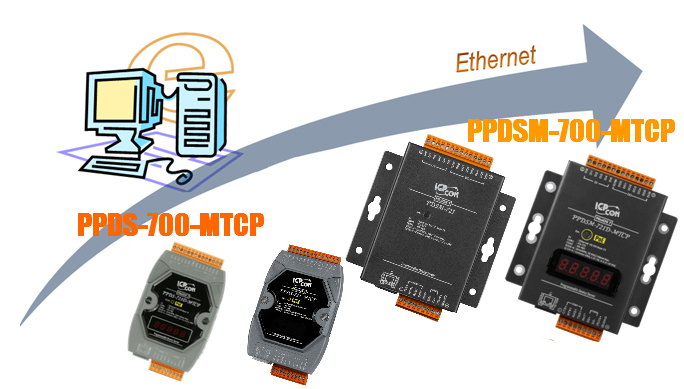

PPDS-700 Series

PPDS-700 Series Programmable Device Servers

Model	RS-232	RS-485	RS-422/ 485	DI/DO	Ethernet	COM1	COM2	COM3	COM4	COM5	COM6	COM7	COM8	Modbus
PPDS-712-MTCP	1	-	-	-	10/100 M, PoE	5-wire RS-232	-	-	-	-	-	-	-	Yes
PPDS-715-MTCP	-	1	-	-	10/100 M, PoE	RS-422 RS-485	-	-	-	-	-	-	-	Yes
PPDS-720(D)-MTCP	1	1	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	Yes
PPDS-721(D)-MTCP PPDSM-721(D)-MTCP	1	1	-	6/7	10/100 M, PoE	5-wire RS-232	2-wire RS-485	-	-	-	-	-	-	Yes
PPDS-732(D)-MTCP PPDSM-732(D)-MTCP	2	1	-	4/4	10/100 M, PoE	5-wire RS-232	2-wire RS-485	5-wire RS-232	-	-	-	-	-	Yes
PPDS-734(D)-MTCP PPDSM-734(D)-MTCP	1	1	1	4/4	10/100 M, PoE	5-wire RS-232	2-wire RS-485	RS-422/ RS-485	-	-	-	-	-	Yes
PPDS-742(D)-MTCP PPDSM-742(D)-MTCP	3	1	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	5-wire RS-232	9-wire RS-232	-	-	-	-	Yes
PPDS-743(D)-MTCP PPDSM-743(D)-MTCP	3	1	-	4/4	10/100 M, PoE	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	-	-	-	-	Yes
PPDS-752(D)-MTCP PPDSM-752(D)-MTCP	4	1	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	5-wire RS-232	5-wire RS-232	5-wire RS-232	-	-	-	Yes
PPDS-755(D)-MTCP PPDSM-755(D)-MTCP	1	4	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	2-wire RS-485	2-wire RS-485	2-wire RS-485	-	-	-	Yes
PPDS-762(D)-MTCP PPDSM-762(D)-MTCP	5	1	-	1/2	10/100 M, PoE	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	-	-	Yes
PPDS-782(D)-MTCP PPDSM-782(D)-MTCP	7	1	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	3-wire RS-232	Yes
PPDS-700D-MTCP = PPDS-700-MTCP + 7-Seg. LED Display PPDSM-700(D)-MTCP = PPDS-700(D)-MTCP with Metal Casing In the DI/DO column is the number of channels for each device. Some PPDS-700-MTCP don't have DIO function.

back

PPDS-700-IP67 Series Programmable Device Servers

Model	RS-232	RS-485	RS-422/485	DI/DO	Ethernet	COM1	COM2	COM3	COM4	IP67
PPDS-741-IP67	1	3	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	2-wire RS-485	2-wire RS-485	Yes
PPDS-742-IP67	2	2	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	5-wire RS-232	2-wire RS-485	Yes
PPDS-743-IP67	3	1	-	-	10/100 M, PoE	5-wire RS-232	2-wire RS-485	5-wire RS-232	5-wire RS-232	Yes

back

	Will be available
	Available soon
	Phased out
	Will be phased out

Product List

PDS-700 Series Programmable Device Servers

Model

Description

PPDS-712-MTCP

Programmable Device Server with PoE, Modbus Gateway and 1 RS-232 port

PPDS-715-MTCP

Programmable Device Server with PoE, Modbus Gateway and 1 RS-422/RS-485 port

PPDS-720-MTCP

Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 1 RS-485 port

PPDS-721-MTCP

Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 1 RS-485 port

PPDSM-721-MTCP

PPDS-721-MTCP with Metal Case

PPDS-732-MTCP

Programmable Device Server with PoE, Modbus Gateway, 2 RS-232 ports and 1 RS-485 port

PPDSM-732-MTCP

PPDS-732-MTCP with Metal Case

PPDS-734-MTCP

Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port, 1 RS-485 port and 1 RS-422/485 port

PPDSM-734-MTCP

PPDS-734-MTCP with Metal Case

PPDS-742-MTCP

Programmable Device Server with PoE, Modbus Gateway, 3 RS-232 ports and 1 RS-485 port

PPDSM-742-MTCP

PPDS-742-MTCP with Metal Case

PPDS-743-MTCP

Programmable Device Server with PoE, Modbus Gateway, 3 RS-232 ports and 1 RS-485 port

PPDSM-743-MTCP

PPDS-743-MTCP with Metal Case

PPDS-752-MTCP

Programmable Device Server with PoE, Modbus Gateway, 4 RS-232 ports and 1 RS-485 port

PPDSM-752-MTCP

PPDS-752-MTCP with Metal Case

PPDS-755-MTCP

Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 4 RS-485 ports

PPDSM-755-MTCP

PPDS-755-MTCP with Metal Case

PPDS-762-MTCP

Programmable Device Server with PoE, Modbus Gateway, 5 RS-232 ports and 1 RS-485 port

PPDSM-762-MTCP

PPDS-762-MTCP with Metal Case

PPDS-782-MTCP

Programmable Device Server with PoE, Modbus Gateway, 7 RS-232 ports and 1 RS-485 port

PPDSM-782-MTCP

PPDS-782-MTCP with Metal Case

back

PPDS-700-IP67 Series Programmable Device Servers

Model

Description

PPDS-741-IP67

Programmable Device Server with 1-port RS-232 ,3-port RS-485, PoE and IP67 Casing

PPDS-742-IP67

Programmable Device Server with 2-port RS-232 ,2-port RS-485, PoE and IP67 Casing

PPDS-743-IP67

Programmable Device Server with 3-port RS-232 ,1-port RS-485, PoE and IP67 Casing

back
