Model: PDS-732(D)
Model: PDSM-732(D)
Model: PPDS-732(D)-MTCP
Model: PPDSM-732(D)-MTCP
PDS(M)-732(D)
PPDS(M)-732(D)-MTCP
Programmable Serial-to-Ethernet Device Servers





The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.

The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.

The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

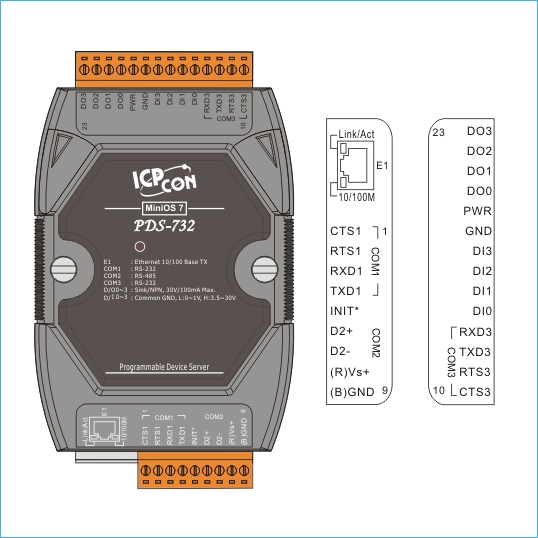

The PDS(M)-732(D) and PPDS(M)-732(D)-MTCP is equipped with 2 RS-232 ports, 1 RS-485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.







  • Incorporate Serial Devices in an Ethernet network
  • "Virtual COM" Extend COM Ports
  • Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Power Reverse Polarity Protection
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • 5-digit LED Display (for versions with a display)
  • RoHS Compliant with no Halogen
  • Built-in High Performance MiniOS7 from ICP DAS
  • 10/100 Base-TX Ethernet, RJ-45 Port
    (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • ODM Service Is Available
  • Low power consumption
  • Palm-Sized with multiple Serial Ports
  • Supports D/I, Latched D/I and Counter Functions

  • [PPDS(M)-732(D)-MTCP only]
  • Supports Modbus TCP to RTU/ASCII Gateway
  • Supports PoE (IEEE 802.3af, Class 1)



  back




  • Factory Automation
  • Building Automation
  • Home Automation


  back


Spec


Models PDS(M)-732(D)/PPDS(M)-732(D)-MTCP
Digital Output
Output Channel 4
Output Type Open Collector (Sink/NPN)
Load Voltage 30 VDC, max.
Load Current 100 mA, max.
Isolated Voltage Non-isolated
Digital Input
Input Channel 4
Input Type Source (Dry Type), Common Ground
Off Voltage Level +1 V max.
On Voltage Level +3.5 ~ +30 V
Isolated Voltage Non-isolated
Counters Channels: 4
Max. Count: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms





Spec


Models PDS(M)-732(D) PPDS(M)-732(D)-MTCP
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles
EEPROM 16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles.
Built-in Watchdog Timer Yes
Communication Interface
Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
COM2 RS-485 (D2+, D2-, GND)
COM3 RS-232 (TxD, RxD, RTS, CTS, GND)
RS-485 Bias Resistor Yes, 1 K£[
Node 254 (max.)
Ethernet 10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE - IEEE 802.3af
COM Port Formats
Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3
Parity None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2.
Stop Bit 1, 2: for COM1 ~ COM3
Baud Rate 115200 bps Max.
LED Indicators
5-digit 7 Segment Yes, only for "D" versions
System Red
PoE - Green
Power
Protection Power Reverse Polarity Protection
Required Supply Voltage +10 VDC ~ +30 VDC (non-regulated) PoE or +12 VDC ~ +48 VDC (non-regulated)
Power Consumption PDS(M)-732: 2.0 W
PDS(M)-732D: 2.7 W
PPDS(M)-732-MTCP: 2.2 W
PPDS(M)-732D-MTCP: 2.9 W
Mechanism
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimension (W x H x D) 72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for "M" versions)
Installation DIN-Rail or Wall mounting
Casing Fire Retardant Plastic (Metal for "M" versions)
Environment
Operating Temperature -25 ~ +75 ¢XC
Storage Temperature -40 ~ +80 ¢XC
Humidity 5 ~ 90% RH, non-condensing







PDS-732 CR Programmable Device Server with 2 RS-232 ports and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable
PDSM-732 CR PDS-732 CR with Metal Case
PDS-732D CR Programmable Device Server with 2 RS-232 ports, 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable
PDSM-732D CR PDS-732D CR with Metal Case
PPDS-732-MTCP CR Programmable Device Server with PoE, Modbus Gateway, 2 RS-232 port and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable
PPDSM-732-MTCP CR PPDS-732-MTCP CR with Metal Case
PPDS-732D-MTCP CR Programmable Device Server with PoE, Modbus Gateway, 2 RS-232 port, 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable
PPDSM-732D-MTCP CR PPDS-732D-MTCP CR with Metal Case







GPSU06U-6 24 VDC/0.25 A, 6 W Power Supply
MDR-20-24 CR 24 VDC/1 A, 24 W Power Supply with DIN-Rail Mounting
CA-0903 9-Pin Female D-sub and RS-232 connector cable, 30 cm Cable   <Pin Assignment>
CA-0910 9-Pin Female D-sub and 3-wire RS-232 cable, 1 M Cable   <Pin Assignment>
NS-205 CR Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
DIN-KA52F-48 48 VDC/0.52 A, 25 W Power Supply with Din-Rail Mounting
NS-205PSE CR Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
DN-09-2 I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0915 x 2 (9-pin Male-Female D-sub Cable 1.5 m)
DN-09-2F I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0910F x 2 (9-pin Female-Female D-sub Cable 1.0 M)
