| Model: PDS-752 |
Model: PDS-752D |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
PDS-700 series is a series of Programmable Serial-to-Ethernet Device Servers designed to meet the most common requirements of Internet/Ethernet applications. Besides the advantage of easy to use on remote control your serial devices through Ethernet network, the PDS-700 comes with a powerful and reliable Xserver programming structure for you to design your robust Ethernet applications in one day.
PDS-700 series is designed for linking RS-232/485/422 devices to Ethernet network. With the help of VxComm utility, the built-in COM port of PDS-700 can be virtualized to standard COM port of host-PC. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enable application. Most devices don't have network ports. Our Programmable Device Servers allow those devices to become connected to the network. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Networkable serial devices
- "Virtual COM" extend COM ports
- Supports Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
- Powerful programmable device server
- Watchdog timer suitable for use in harsh environments
- 10/100Base-TX Ethernet Controller (Auto-negotiating, auto MDI/MDI-X, LED indicator)
- Power reverse polarity protection
- Serial port +/-4 kV ESD protection circuit
- Self-tuner ASIC controller on RS-485 port
- Enables download of programs from PC
- 5-digit display (only for version with display)
- RoHS compliant with No Halogen
- Built-in MiniOS7 of ICP DAS
- ODM Wanted
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Factory Automation
- Building Automation
- Home Automation
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 K bytes |
| Flash Memory |
Flash ROM: 512 K Bytes ; Erase unit is one sector (64 K bytes) ;
100,000 erase/write cycles |
| EEPROM |
16 K byte;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |
| Communication Interface |

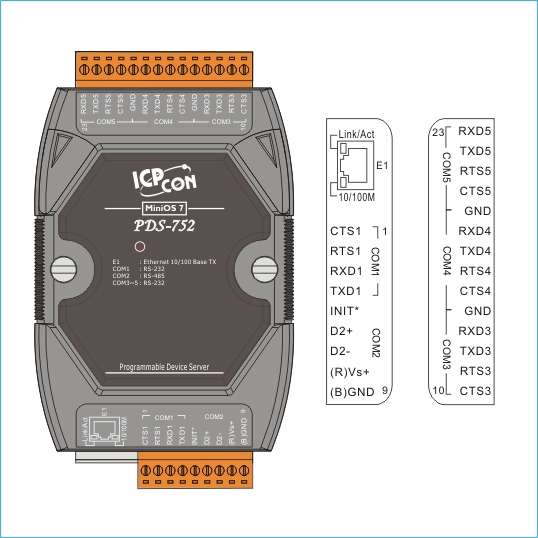

| COM1 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| COM2 |
RS-485(D2+,D2-); None-isolation |
| COM3 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| COM4 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| COM5 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| Ethernet Port |
10/100 M Base-Tx Ethernet Controller
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM5 |
| Parity |
None, Even, Odd, Mark, Space |
| Stop Bit |
1: for COM1, COM2
1, 2: for COM3 ~ COM5 |
| Baud Rate |
115200 bps Max. |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Display |
| 5-Digit 7 Segment LED Display |
Yes(for D Version) |
| System LED Indicator |
Yes |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension ( W x L x H ) |
123 mm x 72 mm x 33 mm |
| Operating Environment |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-40 ~ +80 ¢XC |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+10 ~ +30 VDC (non-regulated) |
| Power Consumption |
2 W for PDS-752
2.7 W for PDS-752D |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| PDS-752 CR |
Programmable Device Server with four RS-232 and one RS-485 ports (RoHS)
Includes one CA-0910 cable |
| PDS-752D CR |
Programmable Device Server with four RS-232 , one RS-485 ports and LED display (RoHS)
Includes one CA-0910 cable |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 V/0.25 A(Max) Power Supply(100 ~ 240 VAC Input) |
| MDR-20-24 CR |
24 V/1 A(Max) Industrial DIN Rail Power Supply(Universal AC Input, RoHS) |
| CA-0903 |
9-Pin Female D-sub & RS-232 connector cable, 30 cm Cable <Pin Assignment> |
| CA-0910 |
9-Pin Female D-sub & 3-wire RS-232 cable, 1 M Cable <Pin Assignment> |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch |
| DN-09-2 |
I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0915 x 2 (9-pin Male-Female D-sub Cable 1.5 m) |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0910F x 2 (9-pin Female-Female D-sub Cable 1.0 M) |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
