PDS(M)-762(D)
PPDS(M)-762(D)-MTCP |
| Programmable Serial-to-Ethernet Device Servers |
 |
 |
 |
 |
| |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.
The PDS(M)-762(D) and PPDS(M)-762(D)-MTCP is equipped with 5 RS-232 ports, 1 RS-485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- 5-digit LED Display (for versions with a display)
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
- ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Supports D/I,Latched D/I and CounterFunctions
[PPDS(M)-762(D)-MTCP only] - Supports Modbus TCP to RTU/ASCII Gateway
- Supports PoE (IEEE 802.3af, Class 1)
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Factory Automation
- Building Automation
- Home Automation
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Models |
PDS(M)-762(D)/PPDS(M)-762(D)-MTCP |
| Digital Output |
| Output Channels |
2 |
| Output Type |
Open-Collector (Sink/NPN) |
| Load Voltage |
30 VDC, Max |
| Load Current |
100 mA, Max |
| Isolation Voltage |
Non-Isolation |
| Digital Input |
| Input Channels |
1 |
| Input Type |
Source (Dry Type), Common Ground |
| Off Voltage Level |
+1 V max. |
| On Voltage Level |
+3.5 ~ +30 V |
| Isolation Voltage |
Non-Isolation |
| Counters |
Channels:1 |
| Max. Count:16 bit(65535) |
| Max. Input Frequence:100 Hz |
| Min. Pulse Width:5 ms |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| Models |
PDS(M)-762(D) |
PPDS(M)-762(D)-MTCP |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles |
| EEPROM |
16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |

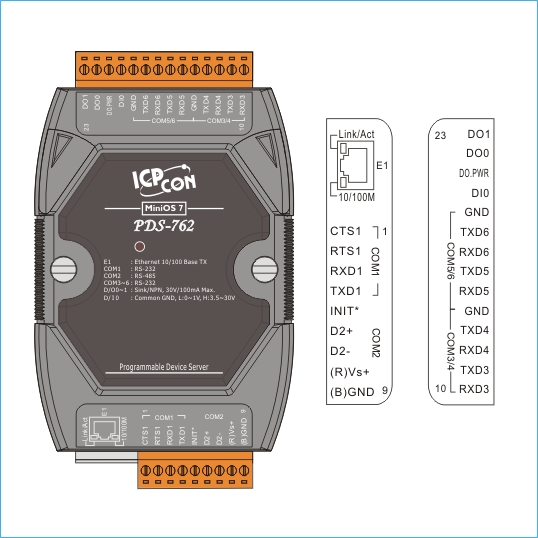

| Communication Interface |
| Non-Isolation |
COM1 |
RS-232 (TxD, RxD, RTS, CTS, GND) |
| COM2 |
RS-485 (D2+, D2-, GND) |
| COM3 |
RS-232 (TxD, RxD,GND) |
| COM4 |
RS-232 (TxD, RxD,GND) |
| COM5 |
RS-232 (TxD, RxD,GND) |
| COM6 |
RS-232 (TxD, RxD,GND) |
| RS-485 |
Bias Resistor |
Yes, 1 K£[ |
| Node |
254 (max.) |
| Ethernet |
10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| PoE |
- |
IEEE 802.3af |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM6 |
| Parity |
None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Stop Bit |
1, 2: for COM1 ~ COM6 |
| Baud Rate |
115200 bps Max. |
| LED Indicators |
| 5-digit 7 Segment |
Yes, only for "D" versions |
| System |
Red |
| PoE |
- |
Green |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+10 VDC ~ +30 VDC (non-regulated) |
PoE or +12 VDC ~ +48 VDC (non-regulated) |
| Power Consumption |
PDS(M)-762: 2.0 W
PDS(M)-762D: 2.7 W |
PPDS(M)-762-MTCP: 2.2 W
PPDS(M)-762D-MTCP: 2.9 W |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension (W x H x D) |
72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for "M" versions) |
| Installation |
DIN-Rail or Wall mounting |
| Casing |
Fire Retardant Plastic (Metal for "M" versions) |
| Environment |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-40 ~ +80 ¢XC |
| Humidity |
5 ~ 90% RH, non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| PDS-762 CR |
Programmable Device Server with 5 RS-232 ports and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable |
| PDSM-762 CR |
PDS-762 CR with Metal Case |
| PDS-762D CR |
Programmable Device Server with 5 RS-232 ports, 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable |
| PDSM-762D CR |
PDS-762D CR with Metal Case |
| PPDS-762-MTCP CR |
Programmable Device Server with PoE, Modbus Gateway, 5 RS-232 ports and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable |
| PPDSM-762-MTCP CR |
PPDS-762-MTCP CR with Metal Case |
| PPDS-762D-MTCP CR |
Programmable Device Server with PoE, Modbus Gateway, 5 RS-232 ports, 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable |
| PPDSM-762D-MTCP CR |
PPDS-762D-MTCP CR with Metal Case |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 VDC/0.25 A, 6 W Power Supply |
| MDR-20-24 CR |
24 VDC/1 A, 24 W Power Supply with DIN-Rail Mounting |
| CA-0903 |
9-Pin Female D-sub and RS-232 connector cable, 30 cm Cable <Pin Assignment> |
| CA-0910 |
9-Pin Female D-sub and 3-wire RS-232 cable, 1 M Cable <Pin Assignment> |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch (RoHS) |
| DIN-KA52F-48 |
48 VDC/0.52 A, 25 W Power Supply with Din-Rail Mounting |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |
| DN-09-2 |
I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0915 x 2 (9-pin Male-Female D-sub Cable 1.5 m) |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-Pin male Header
Includes : CA-0910F x 2 (9-pin Female-Female D-sub Cable 1.0 M) |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
