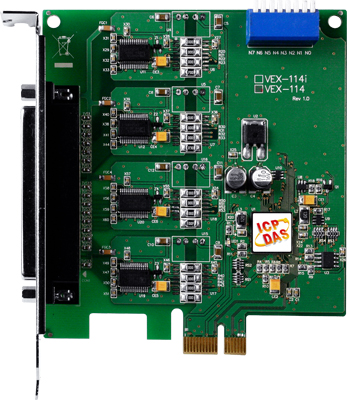

ICP DAS New Product: VEX-114
PCI Express, 4-Port RS-232 Communication Board


Introduction:
The VEX-114 communication card provides 4 RS-232 serial ports and supports PCI Express bus. Each port is equipped with a 128-byte hardware FIFO, and offers speed up to 115200 bps.

Users can select a specified COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.

The serial communication card is designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.

Hardware FIFO up to 128 bytes
FIFO stands for "First In, First Out", an abstraction in ways of organizing and manipulating data relative to time and prioritization. FIFO is used for buffering and flow control while data come from hardware to software. When using hardware FIFO (buffer), a little delay on software or operating system will not lost data at all.
VXC/VEX Cards are equipped with 16- or 128-byte hardware FIFO for each port. Large hardware FIFO is useful to prevent data lost when your system works on heavy loading, e.g. while running on a multi-task operating system, such as Windows, Linux¡K etc.

Feature:
  • Built-in COM-Selector
  • Short Card Design
  • Supports PCI Express bus, Plug and Play



  • Up to 128 KB Software FIFO (max.) for each COM Port under Windows
  • 128-byte hardware FIFO for each port


For more information, please visit the following web site:

The VXC Family -- Mulit-port Serial Cards:

Model Description
VEX-114 PCI Express, Serial Communication Board with 4 RS-232 ports (RoHS)
VEX-144 PCI Express, Serial Communication Board with 4 RS-422/485 ports (RoHS)
VXC-112AU Universal PCI Bus, serial communication board with 2 RS-232 ports
VXC-112iAU Universal PCI Bus, serial communication board with 2 Isolated RS-232 ports
VXC-142U Universal PCI Bus, serial communication board with 2 RS-422/485 ports
VXC-142iU Universal PCI Bus, serial communication board with 2 Isolated RS-422/485 ports
VXC-182iU Universal PCI Bus, serial communication board with 1 Isolated RS-422/485 port and 1 RS-232 port
VXC-114U Universal PCI, 4-port RS-232 Communication Board (RoHS)
VXC-114iAU Universal PCI Bus, serial communication board with 4 Isolated RS-232 ports
VXC-144U Universal PCI, 4-port RS-422/485 Communication Board (RoHS)
VXC-144iU Universal PCI, 4-port Isolated RS-422/485 Communication Board (RoHS)
