VXC-144U/VXC-144iU
Universal PCI,4-port RS-422/485 Communication Board
|
 |
 |
 |
|
 |
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
The VXC-144U card provides 4 non-isolated RS-422/RS-485 serial ports and the VXC-144iU card provides 4-isolated RS-422/RS-485 serial ports which withstand isolation voltage up to 3 kV. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It equips 128 bytes hardware FIFO for each port, offers speed up to 115200 bps and long distance communication link.
Users can select a specified COM port number manually by setting dipswitch, or let the driver to choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
In the harsh industrial environment, the on board ESD protection can protect the computer and equipment from being damaged by high potential voltage.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Supports 3.3 V/5 V PCI bus, Plug and Play
- Provides 4-port RS-422/485
- 128 Bytes hardware FIFO for each port
- Built-in COM-Selector
- 3000 V isolation for VXC-144iU.
- +/-4 kV ESD Protection
- Short Card Design
- Up to 128 KB software FIFO for each COM port under Windows
- DOS, Windows NT/2K/XP/2003 and Linux driver supported
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Driver for Windows NT 4.0
- Driver for Windows 2000/XP/2003/Vista (32-bit)
- Driver for Linux
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
VXC-144U |
VXC-144iU |
| Communication Port |
| COM1 ~ COM4 |
RS-422/485 |
The RS-422 and RS-485 cannot be used simultaneously |
| RS-422 |
TxD+, TxD-, RxD-, RxD+, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485 |
Data+, Data-, GND |
| UART |
16C950 compatible |
| Baud Rate |
50 ~ 115200 bps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| FIFO |
Internal 128 bytes |
| Isolation |
- |
3000 V |
| General |
| Bus Type |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play mechanism |
| COM-Selector |
Yes (8-bit DIP switch) |
| Connector |

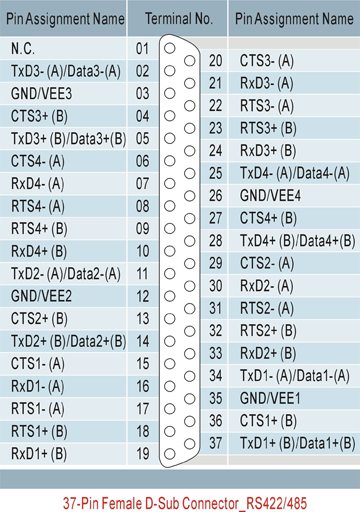

Female DB-37 |
| Power Consumption |
120 mA @ 5 V |
880 mA @ 5 V |
| Operating Temperature |
0 ~ 50 ¢J |
| Storage Temperature |
-20 ¢J ~ 70 ¢J |
| Humidity |
0 ~ 90% RH, non-condensing |
| Dimensions (L x W) |
130 mm x 105 mm |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| VXC-144U CR |
Universal PCI, 4-port RS-422/485 communication board.(RoHS)
Includes one CA-4002 connector |
| VXC-144iU CR |
Universal PCI, 4-port Isolated RS-422/485 communication board.(RoHS)
Includes one CA-4002 connector |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-9-3705 |
DB-37 Male(D-sub) to 4-Port DB-9 Male(D-sub) cable.
0.5M Cable for I-8114W/I-8114iW(90¢X) <pin assignment> |
| CA-9-3715D |
DB-37 Male(D-sub) to 4-Port DB-9 Male(D-sub) cable.
1.5 M Cable for VXC series(180¢X) <pin assignment> |
|
|
|
|
| |
|
|
|
|
|
| |
