| Model: VXC-114U/VXC-114iAU |
Model: VEX-114i/VEX-114 |
|
|
|
|
VXC-114U/VXC-114iAU
VEX-114/VEX-114i
Serial Communication Board with 4 RS-232 ports. |
 |
 |
 |
 |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The VXC-114 series card provides 4 RS-232 serial ports. It equips a 128-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication.
Users may specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
In harsh industrial environments, the on board ESD protection component diverts the potentially damaging charge away from sensitive circuit and protects the computer and equipment from being damaged by high potential voltage.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Provides 4 RS-232 ports
- 128-byte Hardware FIFO for Each Port
- Built-in COM-Selector
- 128 KB Software Buffer (max.) for Each COM Port Under Windows
- Windows 2K/XP/2003/Vista32 Supported
- +/-4 kV ESD Protection for VXC-114(i)U//VEX-114i
- Short Card Design for VEX-114(i)
- 2500 VDC Isolation for VEX-114i
- Supports 3.3 V/5 V PCI bus, Plug and Play for VXC-114(i)U
- Supports PCI Express x 1, Plug and Play for VEX-114(i)
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Driver for Windows 2000
- Driver for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
VXC-114U |
VXC-114iAU |
VEX-114 |
VEX-114i |
| Communication Port |
| COM1 ~ COM4 |
RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| UART |
16C950 compatible |
| Baud Rate |
50 ~ 115200 bps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| FIFO |
Internal 128 bytes |
| Isolated |
- |
2500 VDC |
- |
2500 VDC |
| ESD Protection |
+/-4 kV |
- |
+/-4 kV |
| General |
| Bus Type |
Universal PCI, 3.3 V and 5 V, 33 MHz,
32-bit, Plug and Play mechanism |
PCI Express x1, Plug and Play |
| COM-Selector |
Yes (8-bit DIP switch) |

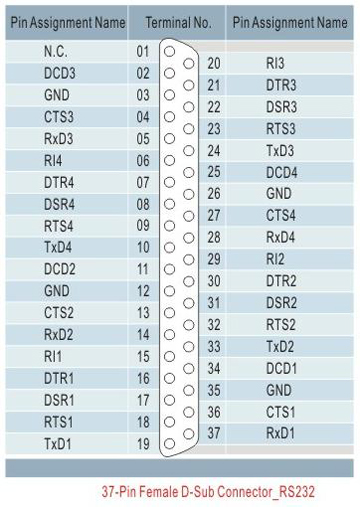

| Connector |
DB-37 (Female) |
| Power Consumption |
120 mA @ 5 V |
880 mA @ 5 V |
120 mA @ 5 V |
880 mA @ 5 V |
| Operating Temperature |
0 ¢XC ~ +50 ¢XC |
| Storage Temperature |
-20 ¢XC ~ +70 ¢XC |
| Humidity |
0 ~ 90% RH, non-condensing |
| Dimensions (L x W x D) |
142 mm x 84 mm x 22 mm |
133 mm x 93 mm x 22 mm |
110 mm x 110 mm x 22 mm |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
PCI Express Bus |
| VEX-114 CR |
PCI Express, Serial Communication Board with 4 RS-232 ports (RoHS).
Includes One CA-4002 Connector |
| VEX-114/D2 CR |
PCI Express, Serial Communication Board with 4 RS-232 ports (RoHS).
Includes One CA-9-3715D Cable |
| VEX-114i CR |
PCI Express, Serial Communication Board with 4 Isolated RS-232 ports (RoHS).
Includes One CA-4002 Connector |
| VEX-114i/D2 CR |
PCI Express, Serial Communication Board with 4 Isolated RS-232 ports (RoHS).
Includes One CA-9-3715D Cable |
Universal PCI Bus |
| VXC-114U CR |
Universal PCI, Serial Communication Board with 4 RS-232 ports (RoHS).
Includes One CA-4002 Connector |
| VXC-114U/D2 CR |
Universal PCI, Serial Communication Board with 4 RS-232 ports (RoHS).
Includes One CA-9-3715D Cable |
| VXC-114iAU CR |
Universal PCI, Serial Communication Board with 4 Isolated RS-232 ports (RoHS).
Includes One CA-4002 Connector |
| VXC-114iAU/D2 CR |
Universal PCI, Serial Communication Board with 4 Isolated RS-232 ports (RoHS).
Includes One CA-9-3715D Cable |
|
|
|
|
| |
