| Model: VXC-182i |
Model: VXC-182iU |
|
|
|
VXC-182i/VXC-182iU
Serial Communication Board with 1 Isolated RS-422/485 port and 1 RS-232 port |
 |
 |
 |
 |
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The VXC-182iU serial card provides two communication ports, one is RS-422/485 and the other is RS-232 port. It can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication, supports for speed up to 115200 bps and is capable of transmitting information over a long distance communication link.
Users can specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
In harsh industrial environments, the on board ESD protection component diverts the potentially damaging charge away from sensitive circuit and protects the computer and equipment from being damaged by high potential voltage.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Provides 1 isolated RS-422/485 port and 1 RS-232 port
- Built-in COM-Selector
- +/-4 kV ESD Protection
- 128 KB Software Buffer (max.) for Each COM Port Under Windows
- Windows 2K/XP/2003/Vista32 Supported
- Self-Tuner Inside
[VXC-182iU only]
- Supports 3.3 V/5 V PCI bus, Plug and Play
- 128-byte Hardware FIFO for Each Port
- Short Card Design
- 2500 VDC Isolation Isolated RS-422/485 port
[VXC-182i only]
- LED diagnostic indicators
- Supports 5 V PCI bus, Plug and Play
- 16 bytes hardware FIFO for each port
- 3000 Vrms Isolation Isolated RS-422/485 port
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Driver for Windows 2000
- Driver for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
VXC-182i |
VXC-182iU |
| Communication Port |
| COM1 |
RS-422/485 |
The RS-422 and RS-485 cannot be used simultaneously |
| RS-422 |

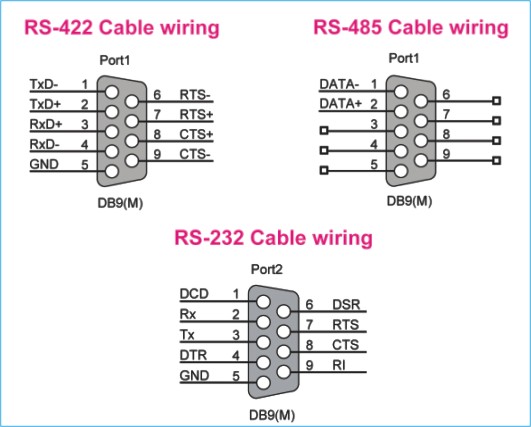

TxD+, TxD-, RxD-, RxD+, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485 |
Data+, Data-, GND |
| COM2 |
RS-232 |
RxD, TxD, CTS, RTS, DSR, DTR, DCD, RI, GND |
| UART |
16C550 compatible |
16C950 compatible |
| Baud Rate |
50 ~ 115200 bps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| FIFO |
Internal 16 bytes |
Internal 128 bytes |
| Isolated |
3000 Vrms for RS-422/485 port |
2500 VDC for RS-422/485 port |
| General |
| Bus Type |
PCI, 5 V, 33 MHz, 32-bit,
Plug and Play mechanism |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit,
Plug and Play mechanism |
| COM-Selector |
Yes (8-bit DIP switch) |
| Connector |
2 x DB9 (Male) |
| Power Consumption |
205 mA @ 5 V |
200 mA @ 5 V |
| Operating Temperature |
0 ¢XC ~ +50 ¢XC |
| Storage Temperature |
-20 ¢XC ~ +70 ¢XC |
| Humidity |
0 ~ 90% RH, non-condensing |
| Dimensions (L x W x D) |
140 mm x 95 mm x 22 mm |
134 mm x 90 mm x 22 mm |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| VXC-182i |
PCI Bus, Serial Communication Board with 1 Isolated RS-422/485 port and 1 RS-232 port |
| VXC-182iU CR |
Universal PCI Bus, Serial Communication Board with 1 Isolated RS-422/485 port and 1 RS-232 port (RoHS) |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-0910F |
9-pin Female-Female D-sub Cable 1 M |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header. Includes CA-0910F x 2 (9-pin Female-Female D-sub Cable 1 M). |
| CA-090910 |
9-pin Female D-sub cable for RS-422 connector, 1 M |
| CA-PC09F |
9-pin Female D-sub connector with plastic cover |
| CA-0915 |
9-pin Male-Female D-sub cable, 1.5 M |
|
|
| |
| |
|
|
|
|
|
| |
