WP-5141/WP-5141-OD
WP-5151/WP-5151-OD |
|
| |
| |
|
|
 |
- Windows CE.NET 5.0
- Hard Real-Time Capability
- Fast Boot Speed
- PXA270 CPU (32-bit & 520 MHz)
- 128 MB SDRAM & 64 MB Flash
- Support VS.Net 2003/2005/2008 & eVC
- 64-bit Hardware Serial Number for Software Protection
- Audio with Microphone-In and Earphone-Out
- I/O Expansion Bus
- •Support VGA (640 × 480/800 × 600)
- Support microSD Socket
- Dual 10/100M Ethernet Ports
- 3 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75 °C
|
|
 |
 |
| Model: WP-5141 |
Model: WP-5141-OD |
| |
|
| ~ Phased out ~ |
~ Phased out ~ |
 |
 |
Model: WP-5151 |
Model: WP-5151-OD |
|
| |
 |

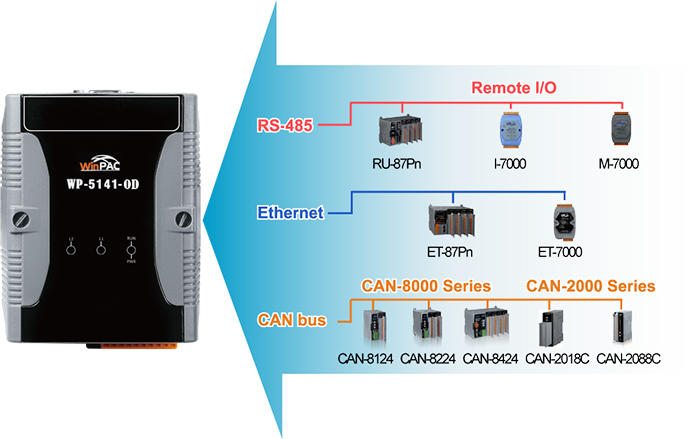

The ICP DAS WinPAC-5000 Series is the new generation PAC (Programmable Automation Controller). It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.
The WinPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC …etc. It give users all of the best features of both traditional PLCs and Windows capable PCs.
For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features. |
| |
 |
 |
| |
 |
| Models |
WP-5141 |
WP-5151 |
WP-5141-OD |
WP-5151-OD |
| System Software |
| OS |
Windows CE 5.0 |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM |
128 MB |
| Flash |
64 MB (32 MB for OS, 32 MB for System_Disk and System Registry) |
| EEPROM |
16 KB Data Retention: 40 years; 1,000,000 erase/write cycles |
| Expansion Flash Memory |
microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| LED Indicators |
1 LED for Power and Running, 2 LEDs for user programmable |
| Rotary Switch |
Yes (0 ~ 9) |
| VGA & Communication Ports |
| VGA |
Yes (640 × 480/800 × 600) |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (client) |
1 |
| USB 1.1 (host) |
1 |
Audio Port
(Microphone-In and Earphone-Out) |
- |
Yes |
| COM 1 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM 2 |
RS-485 (D2+, D2-); 2500 VDC; isolated |
| COM 3 |
RS-232 (RxD, TxD and GND); Non-isolated |
RS-485 (D+, D-); 2500 VDC; isolated |
RS-232 (RxD, TxD and GND); Non-isolated |
RS-485 (D+, D-); 2500 VDC; isolated |
| I/O Expansion Slots |
| I/O Expansion Bus |
Yes, to mount one optional XW-board. |
| Mechanical |
| Dimensions (W x L x H) |
91 mm x 126 mm x 52 mm |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Consumption |
4.8 W (0.2 A @ 24 VDC) |
6 W (0.25 A @ 24 VDC) |
|
| |
 |
| WP-5141-EN CR |
Standard WinPAC-5000 (English Version of OS) (RoHS) |
| WP-5141-OD-EN CR |
Standard WinPAC-5000 with Audio (English Version of OS) (RoHS) |
| WP-5141-TC CR |
Standard WinPAC-5000 (Traditional Chinese Version of OS) (RoHS) |
| WP-5141-OD-TC CR |
Standard WinPAC-5000 with Audio (Traditional Chinese Version of OS) (RoHS) |
| WP-5141-SC CR |
Standard WinPAC-5000 (Simplified Chinese Version of OS) (RoHS) |
| WP-5141-OD-SC CR |
Standard WinPAC-5000 with Audio (Simplified Chinese Version of OS) (RoHS) |
WP-5151-EN CR |
Standard WinPAC-5000 (English Version of OS) (RoHS) |
WP-5151-OD-EN CR |
Standard WinPAC-5000 with Audio (English Version of OS) (RoHS) |
WP-5151-TC CR |
Standard WinPAC-5000 (Traditional Chinese Version of OS) (RoHS) |
WP-5151-OD-TC CR |
Standard WinPAC-5000 with Audio (Traditional Chinese Version of OS) (RoHS) |
WP-5151-SC CR |
Standard WinPAC-5000 (Simplified Chinese Version of OS) (RoHS) |
WP-5151-OD-SC CR |
Standard WinPAC-5000 with Audio (Simplified Chinese Version of OS) (RoHS) |
|
| |
 |
| DP-665 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| DP-1200 |
24 VDC/5.0 A, 120 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting |
| MDR-60-24 |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting |
|
| |
|
|
| |
|
|
