MB TCP/RTU Data-Exchange With Wi-Fi Interface Gateway (Asia Only)
特色
- Supports pair-connection applications
- Supports Virtual COM applications
- Application Modes: Virtual COM, MB TCP Server/Client, MB RTU Master/Slave
- Supports static IP/DHCP (The DHCP function is not available on the Ad-Hoc mode.)
- Ethernet Protocol: TCP, UDP, IP, ICMP, ARP,RARP
- Support IEEE 802.11 b/g for Wi-Fi mode and Ad Hoc mode
- Support WEP-64,WEP-128, WPA-TKIP and WPA2-AES encryption for Wi-Fi mode
- Support WEP-64,WEP-128 encryption for Ad Hoc mode
- Auto control channel in AP mode
- Provides 1~13 RF channels
- Easy firmware update via Ethernet
- Removable terminal block connector
- RoHS compliant with Halogen-free
介紹
RMV-760D-TCP is a Modbus TCP/RTU gateway. It exchanges Modbus command from Modbus TCP/RTU master to Modbus RTU/TCP slave. Modbus TCP command can be transceived not only Ethernet port but also Wi-Fi interface. It supports VxComm and Pair-Connection functions. Users can choose Ethernet mode or Wi-Fi mode to do the pair connection, which provides TCP data tunneling between two serial devices
應用

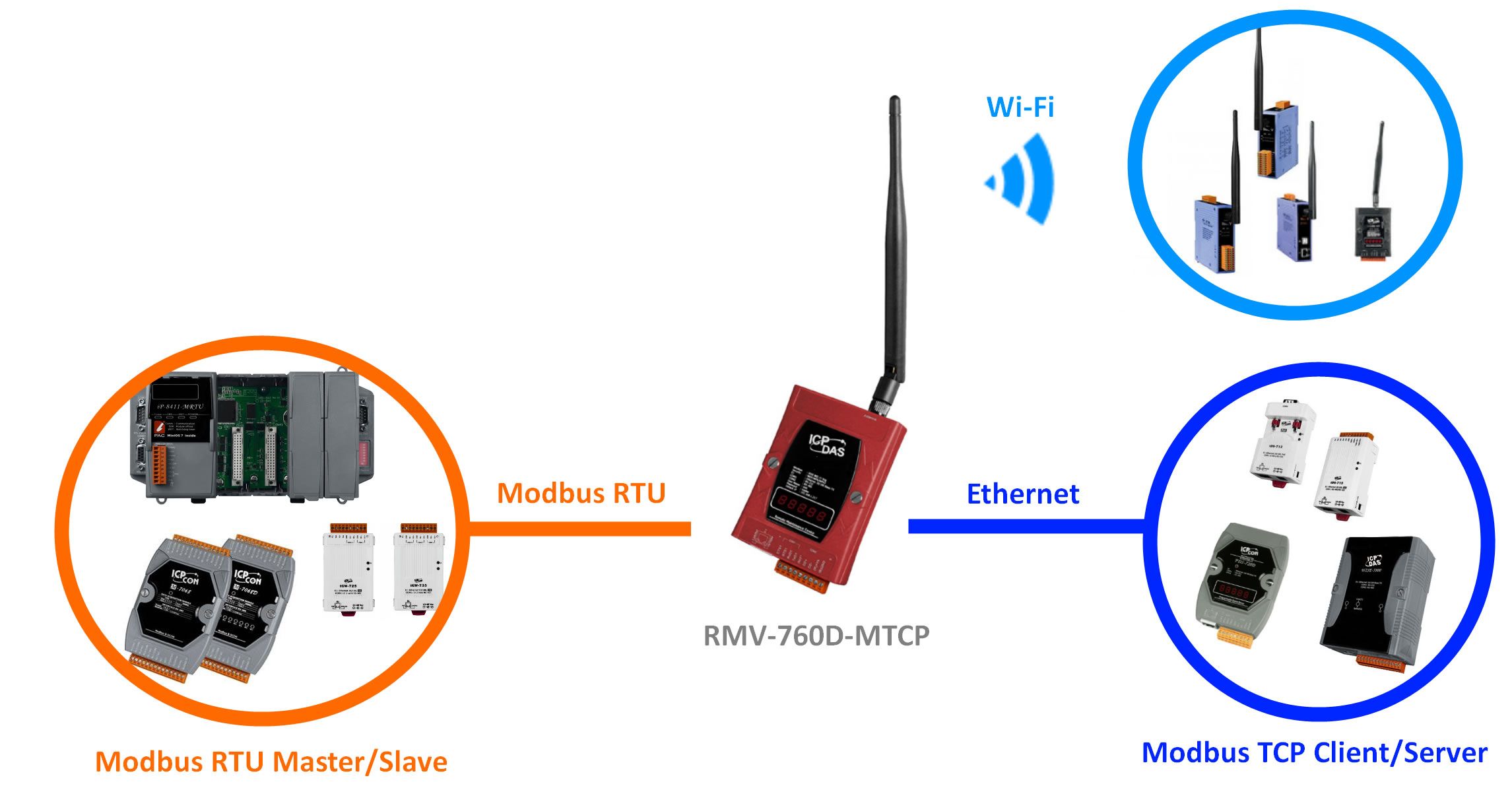

Statement of connection mode:
-

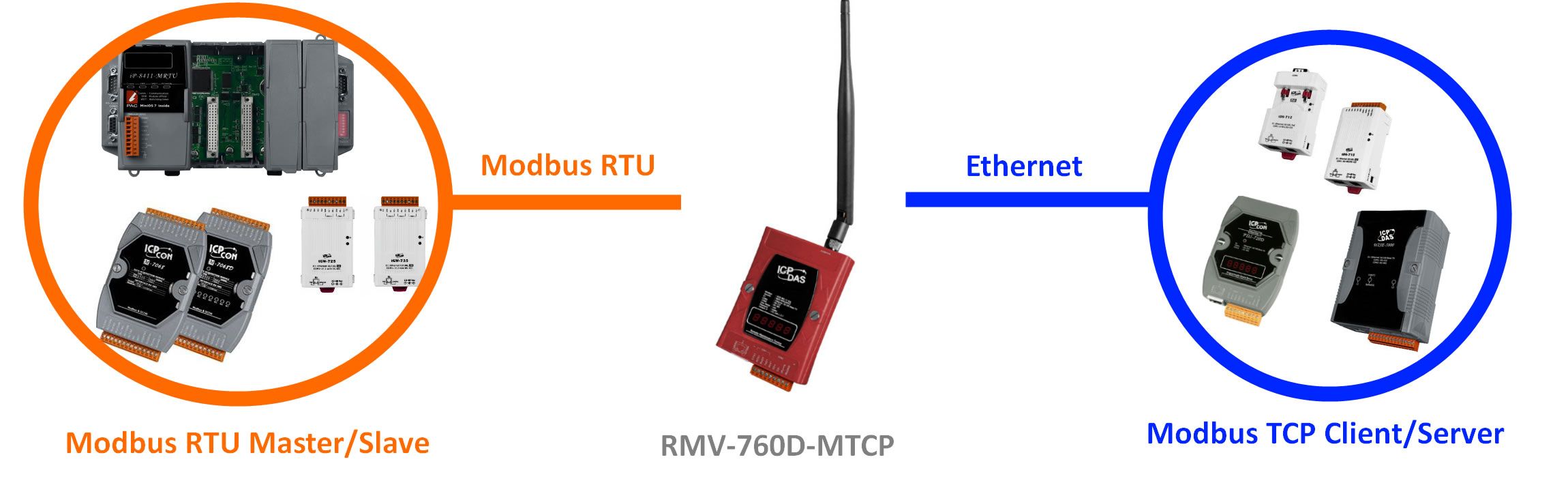

Modbus TCP and Modbus RTU data exchange.
Exchange data between Modbus TCP and Modbus RTU.
-
VxComm Mode:
In this mode, users must install VxComm Driver in the PC to use serial communication.
-
Pair-Connection Mode:
This mode requires two modules to cooperate with each other, one is Pair-Connection Server the other is Pair-Connection Client.
Transmission Type:
-
Ethernet:
This mode uses RJ-45 Ethernet cable to connect to the Internet and transmit data with others devices.
-
AP:
This mode uses Wi-Fi AP to connect to the Internet and transmit data
-
Ad Hoc:
In this mode, if the PC has Wi-Fi Wireless LAN Card, users can make the PC and RMV-760D-MTCP transmit data without Wi-Fi AP and the transmission distances up to 50 meters.
相似產品
| CPU 模組 | |
|---|---|
| CPU | 32-bit MCU |
| Wi-Fi | |
|---|---|
| 傳輸距離 (LoS) | 50 meters (LOS) |
| 標準 | IEEE 802.11b/g |
| RX 靈敏度 | -83 dBm @ 11Mbps |
| 輸出功率 | 8 dBm @ 11Mbps |
| 模式 | Infrastructure & Ad-hoc |
| 加密 | WEP, WPA and WPA2 |
| 天線 | 5 dBi (Omni-Directional) |
| 乙太網路 | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX, 8-pin |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 1 x RS-422 |
| Baud Rate | 115200 bps Max. |
| 同位元 | None, Odd, Even |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| 電源 | |
|---|---|
| 輸入範圍 | +10 ~ 30 VDC |
| 功耗 | 0.05 A @ 24 VDC |
| 機構 | |
|---|---|
| 尺寸 (mm) | 33 x 106 x 120 (W x L x H) |
| 安裝 | DIN-Rail |
| 環境 | |
|---|---|
| 工作溫度 | -25 ~ +75 °C |
| 儲存溫度 | -30 ~ +80 °C |
| 濕度 | 10% ~ 95% (non-condensing) |
