RFU-433
介紹
The RFU-433 is an RS-232/485 to 433 MHz radio modem that can be used to convert data from an RS-232/485 device to an RF message that can then be transmitted in transparent mode via the 433 MHz ISM frequency band. The RFU-433 provides a maximum line of sight (LOS) transmission distance of 500 meters (0.5 km) at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-433 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful when attempting to avoid interference encountered when two RFU-433 networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different RFU-433 networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby providing a simple method of maintaining the system if the RFU-433 modem needs to be replaced.

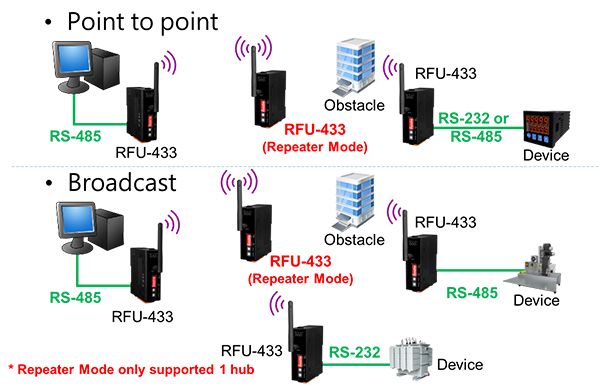

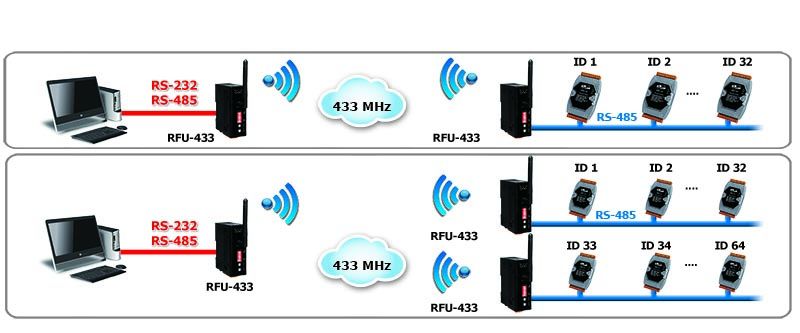

應用
相似產品
隔離 | |
---|---|
內部隔離 | 2500 Vrms for photocoupler (RS-485/RS-232 side) |
EMS 防護 | |
---|---|
EFT (IEC 61000-4-4) | +/- 1 kV |
ESD (IEC 61000-4-2) | +/- 4 kV Contact |
Surge (IEC 61000-4-5) | +/- 1 kV |
LED 燈 | |
---|---|
狀態 | 1 x RF_Tx 1 x RF_Rx 1 x PWR |
RF 無線電 | |
---|---|
天線 | 0 dBi Omni directional |
Baud Rate | 57600 bps ~ 650 bps |
組態 | Rotary and DIP switch |
群組 ID | 0 ~ 7 |
通訊協定 | Transparent transmit |
無線頻率 | 433.1000 ~ 434.6000 MHz |
緩存大小 | 512 Bytes |
傳輸功率 | Default 10 dBm, Max 19 dBm |
傳輸距離 (LoS) | 500 m (at 9600 bps RF Rate and 10 dBm Tx Power) |
COM Ports | |
---|---|
Ports | 1 x RS-232 (TxD, RxD and GND) 1 x RS-485 (D+, D- ; 3000 VDC for DC-to-DC) |
Baud Rate | 1200 ~ 115200 |
Data 格式 | N81, E81, O81 |
電源 | |
---|---|
功耗 | 1 W (Max.) |
機構 | |
---|---|
外殼 | Fire Retardant Materials |
尺寸 (mm) | 108 x 84 x 33 (W x L x H)( not include antenna ) |
安裝 | DIN-Rail |
環境 | |
---|---|
工作溫度 | -25 ~ +75 °C |
儲存溫度 | -30 ~ +80 °C |
濕度 | 10 ~ 95% RH, Non-condensing |
