NSM-200G-SFP

1000Base-T to 1000Base-X SFP Media Converter

特色

• Provides 1 x 1000 Mbps fiber port with SFP Slot for 1000 Base-LX device
• Supports wide operating temperatures from -30 °C ~ +75 °C
• Transparent to jumbo packets up to 10 KB
• Provides Link Fault Pass-through (LFP)
• Supports redundant +12 VDC ~ +48 VDC power input

介紹

ICP DAS's line of feature rich 10/100/1000 Fiber Media Converters transparently connects copper to multimode or single mode fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the line of non-fiber based equipment, or the distance between two devices. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by ICP DAS or other manufacturers of MSA (Multi-source Agreement) compliant SFPs. Gigabit Media Converters are also available with support for LFP (Link Fault Pass-through) feature.

應用

訂購資訊

產品系列	說明	數量	詢價
產品系列 NSM-200G-SFP CR	說明Industrial 1000 Base-T to 1000 Base-X Converter, SFP slot (RoHS)

需搭配其他相關產品

相似產品

即將推出

即將停產

停產

LED 燈
狀態	PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M

乙太網路
Ports	1 x RJ-45, 10/100/1000Base-T(X)
標準	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
處理型式	Store & forward, wire speed switching
MAC 長度	8K
記憶體頻寬	10 Gbps
封包暫存記憶體	1 Mbit
巨型封包	10K

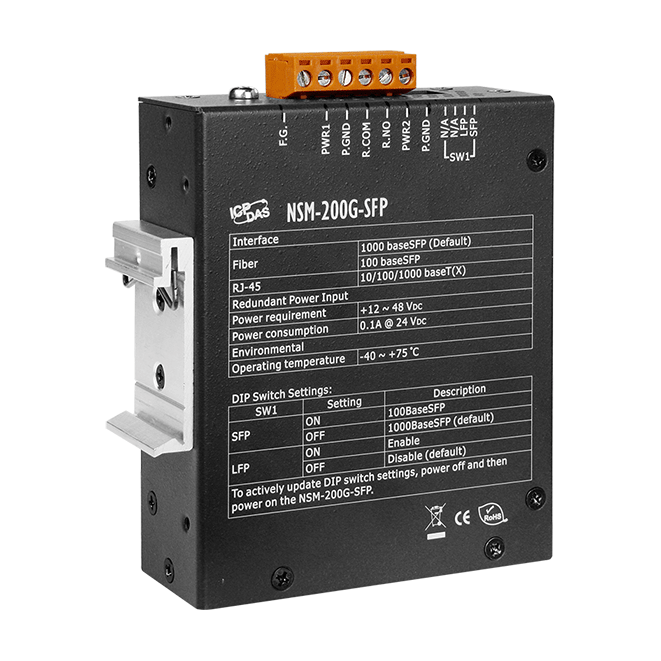

指發開關	1 x SFP Speed, LFP Enable

光纖
Ports	1 x 100/1000 Mbps SFP Fiber Module slots

電源
反極性保護	Yes
輸入範圍	+12 VDC ~ +48 VDC Redundant dual Input(Non-isolated)
冗餘電源輸入	Yes
功耗	0.1 A @ 24 VDC
告警輸出	Yes,Relay 1 A @ 30 VDC

機構
外殼	Metal
尺寸 (mm)	DIN-rail mounting: 33 x 120 x 99 (W x L x H) Wall mounting: 33 x 159 x 93 (W x L x H)

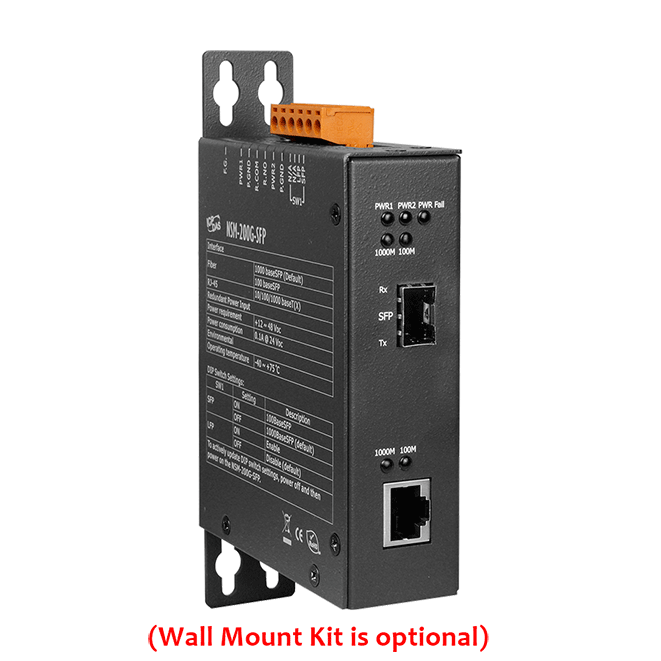

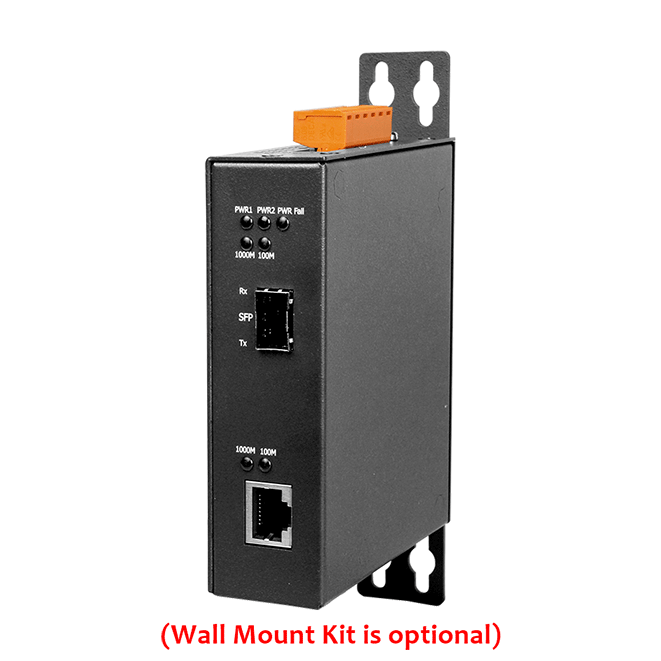

安裝	DIN-rail mounting or wall mounting (optional)
