MDC-211-WF
Wi-Fi Modbus Data Concentrator (Asia Only)
特色
- Compatible with IEEE 802.11 a/b/g/n standards
- Support Infrastructure and Limit-AP mode
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Support Ethernet, RS-232/485 and Wi-Fi interfaces
- Support Web-based UI Operations
- Support the Modbus TCP/RTU protocol
- Support 240 Modbus Polling Commands
- Supports 9600 Modbus Registers for DI/DO/AI/AO
介紹
MDC-211-WF Modbus data concentrator developed by ICP DAS, with Ethernet, WiFi Wireless, RS-232 and RS-485 communication interfaces, can link the Modbus RTU devices to the Ethernet network. MDC-211-WF can read the data of Modbus RTU device according to the user-defined command table, and integrate the data of different Modbus RTU devices into the format of the continuous address so that the remote monitor host can connect to MDC-211-WF from Ethernet to access the data of multiple Modbus RTU devices at once.

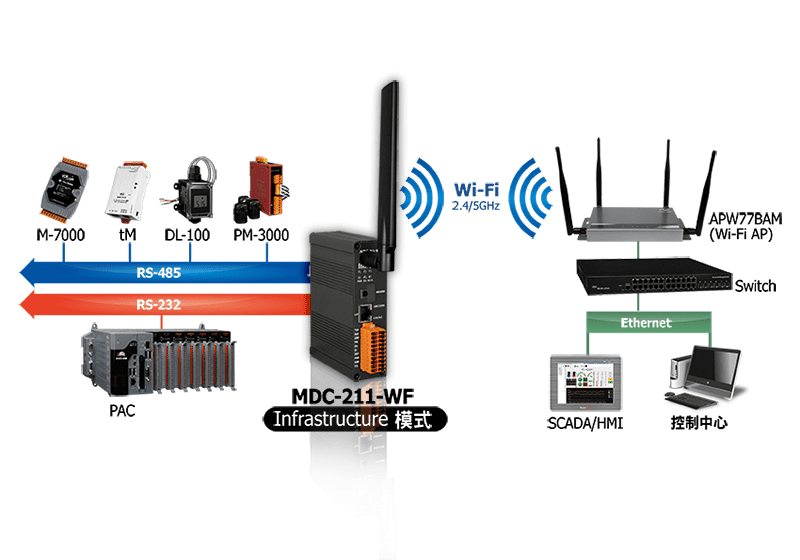

應用
相似產品
| Wi-Fi | |
|---|---|
| 標準 | IEEE 802.11a/b/g/n |
| 模式 | Limit-AP/Infrastructure |
| 頻率 | 2.4 GHz 5 GHz |
| 通訊協定 | Modbus TCP Slave |
| 加密 | Open/WEP/WPA/WPA2 |
| 通道數 | 2.4 GHz: CH1~11 5 GHz: CH36、40、44、48 |
| 天線 | Omni-Directional 3 dBi @2.4 GHz / 5.5 dBi @ 5 GHz |
| 乙太網路 | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| 通訊協定 | Modbus TCP Slave |
| 設定 | Web-based User Interface |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| 通訊協定 | Modbus RTU Master/ Slave |
| 輪詢定義數 | Up to 240 Modbus command definitions for all Wi-Fi/RS-232/ RS-485 ports |
| 電源 | |
|---|---|
| 輸入範圍 | +10 VDC ~ +30 VDC |
| 機構 | |
|---|---|
| 外殼 | Metal |
| 尺寸 (mm) | 33 x 120 x 116 (W x L x H) |
| 安裝 | DIN-Rail |
| 環境 | |
|---|---|
| 工作溫度 | -25 ~ +75 °C |
| 儲存溫度 | -40 ~ +85 °C |
| 濕度 | 10 ~ 95% RH, Non-condensing |
