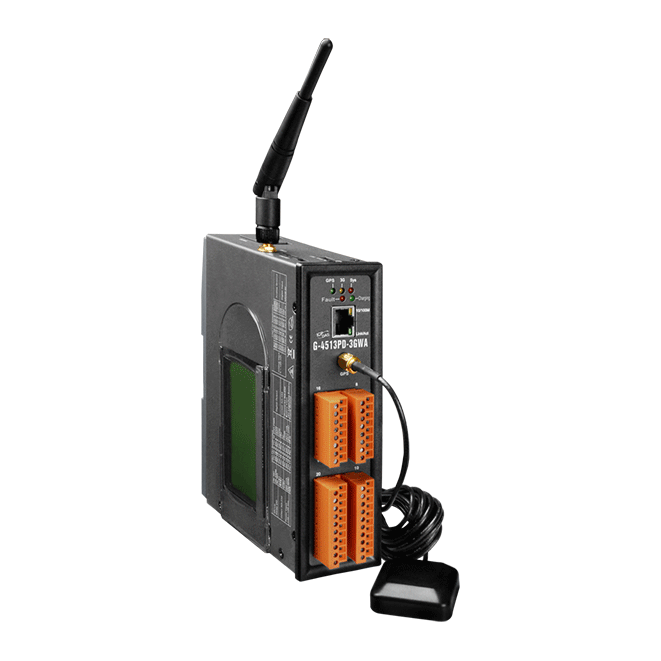

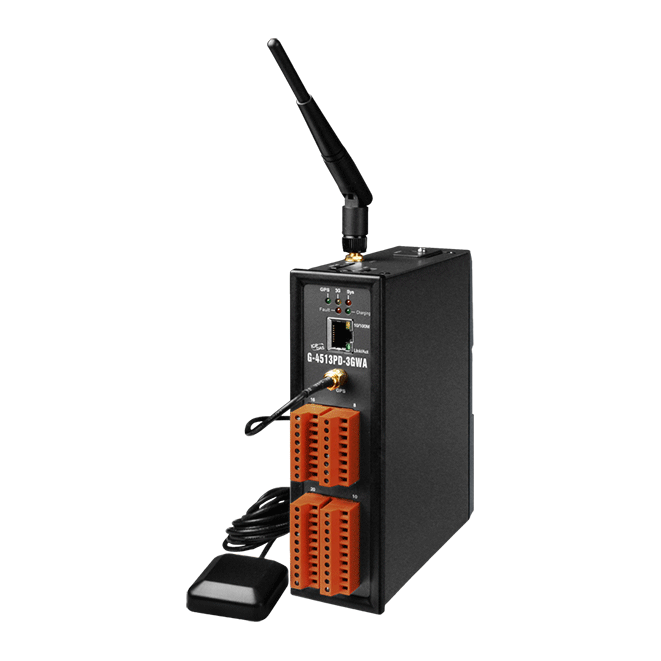

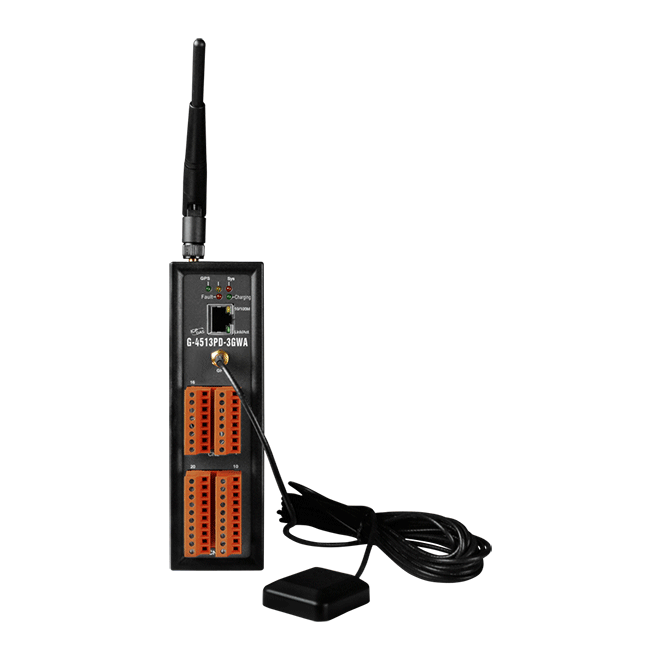

3G Power Saving PAC with Solar charger, LCD display and GPS
特色
- Embedded MiniOS7, anti-virus.
- Support GSM 850 / 900 / 1800 / 1900 MHz.
- Support WCDMA 850 / 900 / 1900 / 2100 MHz.
- Solar charger for Lead acid battery.
- 10/100 Base-TX compatible Ethernet controller.
- COM port: COM1 (5-wire RS232), COM2 (RS-485).
- I/O: 3 DI, 3 DO, 8 AI, 1 relay DO.
- Support SD card.
- Built-in RTC, NVRAM, EEPROM.
- 128*64 dots LCM display (option).
- GPS : 32 channels with All-In-View tracking (option).
- Support TCP ,UDP client connection over GPRS.
- High reliability in harsh environments.
- DIN-Rail mountable.
介紹
The G-4513 series are M2M (Machine to Machine) Power Saving PAC with a cellular transceiver and a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. With optional GPS model, the G-4513 can also be a GPS tracking system for vehicle management or maritime system. The features of G-4513-3GWA series: Solar charger, 3G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.
應用
Hydrologic / Wind Monitoring Application.
-
Car Monitor / Tracking System.
相似產品
| CPU 模組 | |
|---|---|
| CPU | 80 MHz internal microprocessor |
| EEPROM | 16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Flash | 512KB |
| NVRAM | 31 bytes, battery backup, data valid up to 10 years |
| SRAM | 512KB |
| 實時時鐘 | Provide seconds, minutes, hours, day of week/month, month and year |
| 看門狗計時器 | Yes |
| 顯示 | |
|---|---|
| 背光壽命 | Expected life is more than 100,000 hours under normal operation |
| 顯示範圍 (mm) | 80.61 mm x 14.37 mm (W x H) |
| 鎳氫電池充電器 | |
|---|---|
| 電池電壓 | 12V Lead-Acid Battery |
| 充電電壓 | Voltage of Power Input must be over +16V |
| 低電壓保護 | Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V |
| LED 燈 | |
|---|---|
| 狀態 | 1 x System 1 x 3G 1 x GPS 1 x Charging / Fault |
| 2G 系統 | |
|---|---|
| 資料傳輸率 | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| 頻段 | 850/900/1800/1900 MHz |
| 編碼方案 | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| 功率等級 | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS 格式 | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G 系統 | |
|---|---|
| 資料傳輸率 | HSPA Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps HSDPA Max. 7.2 Mb/s WCDMA Max. 384 kb/s Download/Upload link |
| 頻段 | WCDMA 850/900/1900/2100 MHz |
| 功率等級 | Class 3 (250mW @ WCDMA/HSPA) |
| SMS 模式 | MT, MO, CB, Text and PDU mode |
| GPS/GNSS | |
|---|---|
| 採集時時 | Hot start (Open Sky) = 2 s(typical) Cold start (Open Sky) = 36 s(typical) |
| 通訊協定 | NMEA 0183 version 3.01 |
| 靈敏度 | Tracking = up to -159 dBm (with external LNA) Cold start = up to -146 dBm (with external LNA) |
| 支援通道數 | 32 |
| 類比輸入 | |
|---|---|
| 通道數 | 8 |
| 類型 | Current |
| 範圍 | 0 ~ 20 mA |
| 解析度 | 12 - bit |
| 精度 | +/- 2 LSB (+/- 0.0097 mA) |
| 採樣率 | 1 KHz max. (Read one channel). |
| 隔離 | 2500Vrms 3000Dc to DC |
| 數位輸入 | |
|---|---|
| 通道數 | 3 |
| 類型 | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON 電壓準位 | +3.5 ~ +30 V |
| OFF 電壓準位 | +1 V max. |
| 隔離 | Non-isolated |
| 數位輸出 | |
|---|---|
| 通道數 | 3 |
| 類型 | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| 負載電壓 | +30 VDC max. |
| 負載電流 | 100 mA max. |
| 隔離 | Non-isolated |
| 繼電器輸出 | |
|---|---|
| 通道數 | 1 |
| 觸點規格 | Form C: 2A @ 30 VDC 0.25 A @ 250 VAC |
| 機械耐久性 | typ. 10^8 operations |
| 乙太網路 | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 |
| 電源 | |
|---|---|
| 功耗 | Sleep: < 10 mA @ 12VDC; Sleep(With LCD): < 11 mA @ 12VDC; Idle: 77 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| 機構 | |
|---|---|
| 外殼 | Metal |
| 尺寸 (mm) | 47 x 142 x 168 (W x L x H) |
| 面板切割 (mm) | 93 mm x 70 mm x 1.6 mm (W x H x T) |
| 安裝 | DIN-Rall and Wall mount |
| 環境 | |
|---|---|
| 工作溫度 | -15 ~ +55 °C |
| 儲存溫度 | -20 ~ +70 °C |
| 濕度 | 5~90% RH, non-condensing |
