A-822PGH/A-822PGL
125 kS/s 16-channel 12-bit Analog Input, 2-channel 12-bit Analog Output with
16 Digital Input/16 Digital Output |
|
| |
| |
 |
| Model: A-822PGH/A-822PGL |
|
|
 |
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 125 k/s sampling rate
- Two 12-bit analog output channels
- Analog Output Range : 0 ~ 5 V , 0 ~ 10 V
- Software programmable gain :
A-822PGL (Low Gain Version ) : 0.5 , 1 , 2 , 4 , 8
A-822PGH (High Gain Version) : 0.5 , 1 , 5 , 10 , 50 , 100 , 500 , 1000
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 digital input & 16 digital output
- 37 pin D-Sub connector
|
|
|
| |
 |
The A-822PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-822PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bit resolution. In addition, The A-822PGH/PGL has 16 digital input, 16 digital output , and one timer/counter channel. The A-822PGH Provides gain of 0.5, 1, 5, 10, 50 ,100 , 500 , 1000 while the A-822PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 k samples/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model). |
| |
 |
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
|
- FFT & frequency analysis
- Transient analysis
- Production test
- Process control
|
|
| |
 |
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for Linux and DasyLab
|
| |
 |
| Analog Input |
| Channels |
16 single-ended/8 differential |
| A/D Converter |
12-bit, 8 μs conversion time |
| Sampling Rate |
125 kS/s. max. |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pf |
| Trigger Modes |
Software, Pacer, External |
| Data Transfer |
Polling, Interrupt, DMA |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
15 ppm/°C of FSR |
| Analog Output |
| Channels |
2 independent |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
Unipolar: 0 ~ 5 V, 0 ~10 V
Bipolar: +/-10 V |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.6 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
3 independent |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 2 MHz |
| General |
| Bus Type |
ISA |
| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
163 mm x 124 mm x 22 mm |
| Power Consumption |
960 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Model |
A-822PGL (Low-Gain) |
| Gain |
0.5 |
1 |
2 |
4 |
8 |
| Unipolar (V) |
|
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
| Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Sampling Rate Max. |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
| Model |
A-822PGH (High-Gain) |
| Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
| Unipolar (V) |
|
0 ~ 10 |
|
0 ~ 1 |
|
0 ~ 0.1 |
|
0 ~ 0.01 |
| Bipolar (V) |
+/- 5 |
+/- 5 |
+/- 1 |
+/- 0.5 |
+/- 0.1 |
+/- 0.05 |
+/- 0.01 |
+/- 0.005 |
| Sampling Rate Max. |
125 kS/s |
125 kS/s |
80 kS/s |
80 kS/s |
10 kS/s |
10 kS/s |
1 kS/s |
1 kS/s |
|
| |
 |
| A-822PGL |
12-bit Low Gain Multi-function Board
Includes one CA-4002 D-Sub connector. |
| A-822PGL/S |
A-822PGL + Daughter Board DB-8225
Includes one CA-3710 D-Sub cable. |
| A-822PGH |
12-bit High Gain Multi-Function Board
Includes one CA-4002 D-Sub connector. |
| A-822PGH/S |
A-822PGH + Daughter Board DB-8225
Includes one CA-3710 D-Sub cable. |
|
| |
 |
| CA-2002 |
20-pin flat cable,20 CM x 2 |
| CA-2010 |
20-pin flat cable,1 M |
| CA-2020 |
20-pin flat cable 2 M. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°)) |
| CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS) |
| CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| DB-8225 |
Screw Terminal Board For Analog I/O |
| DB-889D |
16-channel Analog Input Multiplexer Board |
| DN-20/DN-20-381 |
I/O Connector Block with DIN-Rail Mounting and two 20-Pin Header |
| DB-16P |
16-channel Isolated Digital Input Daughter Board |
| DB-16R |
16-channel Relay Output Daughter Board |
| DB-24C |
24-channel Open Collector Output Daughter Board |

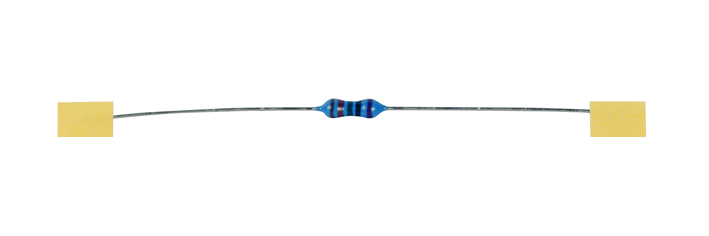

| 125Ω, 0.1% DIP Resistors |
125 Ω External Resistor for use with Current Input |
|
 |
| |
 |
|
| |
|
|
| |
|
|
