DB-889D

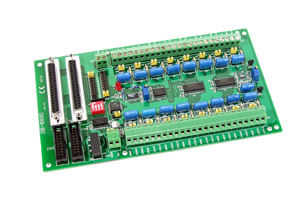

16-channel Analog Multiplexer Board |
|
| |
| |
|
 |
|
| Model: DB-889D |
|
|
|
 |
- Connects directly to A-82X, PCI-1800 series DAS board or 818 families with D-sub 37-pin connectors.
- Cold-junction compensation for thermocouples, thermocouple open detection Input filtering
- Software-programmable Instrumentation amplifier Gain of 0.5,1,5,10,50,100,500,1000
- Daisy chain to 10 pcs of DB-889D
|
|
|
| |
 |
The DB-889D is an expansion multiplexer/ amplifier board for use with A-82X, PCI-1800 series 818 families. Each 889D multiplexes 16 differential analog input channels into one analog input of the DAS board. The high grade instrumentation provides software programmable gains of 0.5 ,1,5 ,10,50, 100, 500,and 1000.
Thermocouple measurement are handled easily with 889D. The board includes cold-junction sensing and compensation circuitry that provides a scaling of 24.4 mV/?C. Biasing resistors are includes for open thermocouple detection. The 889D can be cascaded to a total of 128 channels of voltage measurements or 112 channel of thermocouple measurement. |
|
| |
 |
- Accepts thermocouple type: J, K, T, E, S, R, B
- Cold-junction compensation:+24.4 mV/°C( 1°C/bit), 0.0V at 0.0°C
- Over voltage protection: ± 30V Continuous.
- Common mode voltage: ±10V max
- Analog output voltage: ±10V
- Dimension : 204 mm x 114 mm
|
|
| |
Gain |
Common Mode Rejection |
Nonlinearity % of FSR |
Setting Time |
0.5 |
99dB |
±0.0004 |
23μs |
1 |
99dB |
±0.0004 |
23μs |
5 |
114dB |
±0.0004 |
28μs |
10 |
114dB |
±0.0004 |
28μs |
50 |
123dB |
±0.0004 |
140μs |
100 |
123dB |
±0.0004 |
140μs |
500 |
123dB |
±0.0008 |
1300μs |
1000 |
123dB |
±0.0008 |
1300μs |
|
|
| |
 |
- Signal conditioning.
- Energy management
- Analog multiplexer
|
|
| |
 |
| DB-889D |
16-channel Analog input mux Board
Include :CA-3710 : 37-pin D-sub Connector Cable 1m CA-2010 : 20-pin Flat Cable 1m |
