WP-8051, WP-8351, WP-8751
Standard WinPAC-8000 controller. |
|
|
|
| |
 |
 |
 |
| Model: WP-8051 |
Model: WP-8351 |

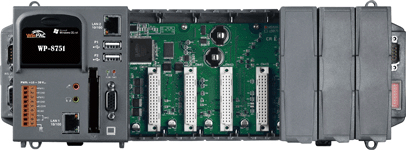

Model: WP-8751 |
|
|
| |
|
|
| |
WinPAC-8000 is the second generation PAC of ICP DAS. It equips PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).
Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC ¡Ketc. |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Windows CE.Net 5.0
- Remote Maintenance via FTP Server and VCEP Software
- Built-In OPC Server (NAPOPC_CE5)
- Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
- Upgrading applications from WinCon to WinPAC Just Copy and Play
(¡K details) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- Built-in VGA Port
- I/O Module Hot Swap Ability (Will be available)
(For High Profile I-87K Modules Only)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Ports
- Redundant Power Input
- Ventilated Housing Design Allows Operation Between -25¢J ~ +75¢J
(¡K details) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| Models |
WP-8051 |
WP-8351 |
WP-8751 |
| System Software |
| OS |
Windows CE 5.0 |
| .Net Compact Framework |
2.0 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Portuguese-BR, Simplified Chinese, Traditional Chinese, Korean |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM |
128 MB |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retention) |
| Flash |
Total size |
128 MB |
| OS image |
64 MB |
| Built-in Flash disk |
63 MB |
| Registry |
1 MB |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| Compact Flash |
4 GB CF card (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| Audio |
Microphone-In and Earphone-Out |
| VGA & Communication Ports |
| VGA |
Extra GPU |
Yes |
| Resolution |
1024 x 768, 800 x 600, 640 x 480 |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, LED indicators) |
| USB 1.1 (host) |
2 |
| USB 1.1 (client) |
1 |
| COM 0 |
- |
Internal communication with the high proT le I-87K series modules in slots |
| COM 1 |
RS-232 (to update firmware) (RxD, TxD and GND); non-isolated |
| COM 2 |
RS-485 (D2+, D2-); 3000 VDC isolated |
| COM 3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| COM 5 |
RS-232 (RxD, TxD, and GND); non-isolated |
- |
| I/O Expansion Slots |
| Slot Number |
0 |
3 |
7 |
| (For High Profile I-8K and I-87K Modules Only) |
| Hot Plug * Will be available |
For High ProT le I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
137 mm x 132 mm x 111 mm |
231 mm x 132 mm x 111 mm |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-30 ~ +80 ¢XC |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.2 A, 5 V supply to CPU and backplane,
15 W in total |
1.3 A, 5 V supply to CPU and backplane, 4.7 A, 5 V supply to I/O expansion slots, 30 W in total |
1.4 A, 5 V supply to CPU and backplane, 4.6 A, 5 V supply to I/O expansion slots, 30 W in total |
| Consumption |
8.4 W (0.35 A @ 24 VDC) |
9.6 W (0.4 A @ 24 VDC) |
10 W (0.42 A @ 24 VDC) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| WP-8051 |
Standard WinPAC-8000 without I/O Slot (Multilanguage Version of OS) |
| WP-8351 |
Standard WinPAC-8000 with 3 I/O Slots (Multilanguage Version of OS) |
| WP-8751 |
Standard WinPAC-8000 with 7 I/O Slots (Multilanguage Version of OS) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| DP-665 |
AC 85~270V input, DC 24V/1.7A and 5V/0.5A output power supply |
| DP-660 |
AC 85~270V input, DC 24V/2.5A and 5V/0.5A output power supply |
| DP-1200 |
AC 85~270V input, DC 24V/5.0A output power supply |
| MDR-60-24 |
85 ~ 264VAC input, 60W Single Output Industrial DIN Rail Power Supply |
|
|
| |
|
|
|
|
|
| |
