I-8092F-G
High-speed 2-axis Motion Control Module with FRnet Master


Model: I-8092F-G




  • Independent 2-axis motion control
  • Support for hand wheel and jog functions
  • 2-axis linear / 2-axis circular interpolation function
  • Continuous interpolation function
  • Programmable T/S-curve acceleration and deceleration
  • A maximum pulse output rate of 4 Mpps for each axis
  • Pulse Output Types: CW/CCW or PULSE/DIR
  • 32-bit encoder counter for each axis
  • Encoder Pulse Input Types: A/B Phase or Up/Down
  • Programmable automatic homing for each axis
  • Programmable software limits
  • Expandable Remote I/O: 128 DI and 128 DO via a two-wire FRnet interface

The I-8092F is a 2-axis stepping/pulse-type servo motor control module that can be used on any of the ICP DAS I-8000 and PAC series controllers, and is suitable for general-purpose motion control applications. The I-8092F is equipped with one FRnet master, which allows fast remote I/O to be easily expanded. The two-wire FRnet interface can be used automatically scan its 128 DI and 128 DO channels with a scan period of 2.88 ms.

In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/deceleration, and others. A major advantage is that the majority of the I-8092F motion control functions are performed by the high-performance motion ASIC with little load on the processor. While driving the motors, the motion status, and the status of the other I/O channels on the I-8000 or PAC modules, can still be monitored.

As a result of the low CPU loading requirements of the I-8092F, one or more motion modules may be used on a single I-8000 or PAC controller. ICP DAS provides a wide range of functions and examples that can be used to reduce the need for programming by users, making it a highly cost-effective solution for motion control application developers.


2-Axis Linear Interpolation

2-Axis Circular Interpolation

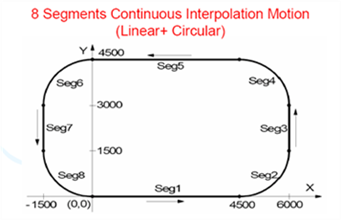

Continuous interpolation



4 Steps Automatic Home Searching


Number of Axes 2
Pulse Output Rate 4 MHz (Max.)
Command Type Pulse Command
Resolution 32-bit
Pulse Output Mode CW/CCW, PULSE/DIR
Operation Mode Semi-closed Loop
Linear Interpolation 2 axes
Circular Interpolation 2 axes
Speed Curve Profile T/S-curve
Motion Relative I/O Home, LMT+/-, NHOME, EMG, INP, ALM, SVON
Synchronous Action -
Ring Counter Mode 32-bit
Position Control Mode Incremental mode
Position Compare Trigger -
Encoder Interface A/B pulse, Up/Down
Encoder Counter 32-bit
Encoder Rate 4 MHz
Digital Input Channels Expandable: 128 DI
Digital Output Channels Expandable: 128 DO
I/O Isolation (with DN-8237) 2500 Vrms optical isolation
Connector 37-pin D-Sub
Power Consumption +5 V @ 500 mA
Environmental
Operating Temperature -20 ~ +75°C
Storage Temperature -30 ~ +85°C
Ambient Relative Humidity 5 ~ 90% RH, non-condensing

I-8092F-G High-speed 2-axis Motion Control Module with FRnet Master

DN-8237UB Photo-isolated Universal Snap-on Wiring Terminal Board
DN-8237GB Photo-isolated General Purpose Wiring Terminal Boar
DN-8237MB Photo-isolated Snap-on Wiring Terminal Board for Mitsubishi MELSERVO-J2 Servo Amplifier
DN-8237PB Photo-isolated Snap-on Wiring Terminal Board for Panasonic MINAS A4/A5 Servo Amplifier
DN-8237YB Photo-isolated Snap-on Wiring Terminal Board for Yaskawa Sigma II/III/V Servo Amplifier
DN-8237DB Photo-isolated Snap-on Wiring Terminal Board for Delta ASDA-A Servo Amplifier
CA-3715DM-H 37-pin D-Sub Male-Male Cable for Terminal Board (180º), Length 1.5 M
CA-3730DM-H 37-pin D-Sub Male-Male Cable for Terminal Board (180º), Length 3.0 M
CA-3750DM-H 37-pin D-Sub Male-Male Cable for Terminal Board (180º), Length 5.0 M
