    EIP-2060

    Isolated 6-ch DI and 6-ch Relay Output EtherNet/IP I/O module



    The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

    The EIP-2060 is a remote digital I/O module with 6 DIs and 6 Relay. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2060 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.



    Applications
    • Building Automation
    • Factory Automation
    • Machine Automation
    • Remote Maintenance
    • Remote diagnosis
    • Testing Equipment


    Features
    General Features:
    • Transfer protocol: EtherNet/IP
    • Powerful 32-bit MCU handles efficient network traffic
    • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
    • Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
    • Easy firmware update via Ethernet
    • Removable terminal block connector
    • LED indicators to display the I/O status
    • Built-in I/O
      • DI/Counter: 6 Channels
      • Relay: 6 Channels
    • Power-On Value
    • Safe Value
    • RoHS compliant


    Utility

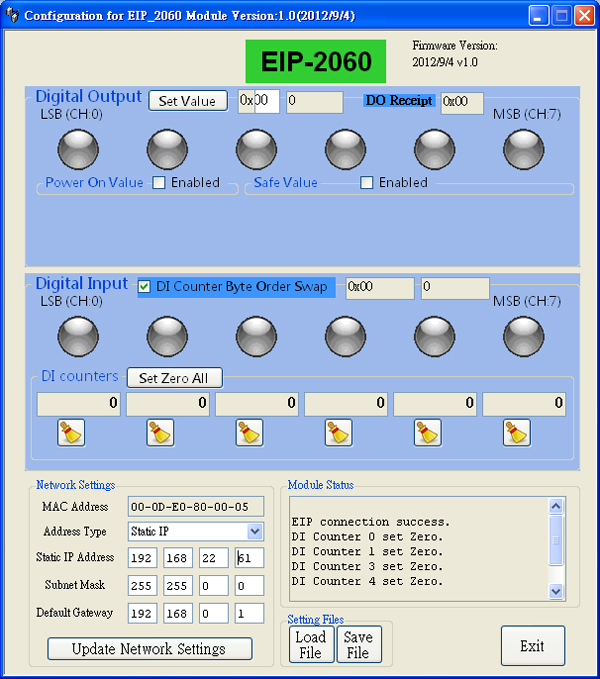

    ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.
    • Network parameters configuration
    • Settings for power-on value and safe value
    • DI counters inspection
    • Easy test to transmit/receive the I/O status by EtherNet/IP
    • Setting files management



    Hardware Specifications
    Digital Input
    Channels 6
    Input Type Dry Contact: Source, Wet Contact: Sink / Source
    Dry Contact Level Off Voltage Level: Open
    On Voltage Level: Close to GND
    Wet Contact Level Off Voltage Level: +4V max.
    On Voltage Level: +10 V ~ +50 V
    Counters Channels 6
    Max. Counts 32-bit (4294967295)
    Max. Input Frequency 5KHz
    Photo-Isolation 3750 VDC
    Digital Output
    Channels 6
    Output Type Form A(SPST-NO)
    Contact Rating(Resistive Load) 5A 250VAC (47~63Hz)
    5A 30 VDC
    Operate Time 10ms max.
    Release Time 5ms max.
    Insulation Resistance 1,000MΩs at 500 VDC
    Dielectric Strength Between Open Contact 1000VAC (1 min.)
    Between Coil and Contacts 3000VAC (1 min.)
    Endurance Mechanical 20,000,000 times min.
    Electrical 100,000 times min.
    Communication Interface
    Connector 10/100 Base-TX, 8-pin RJ-45 x 2
    Support daisy chain connection
    Standard Supported IEEE 802.3 Ethernet/IP
    Power
    Input Voltage Range 10V ~ 30V
    Power Consumption 1.6W
    Mechanism
    Installation DIN-Rail
    Dimensions 110mm x 90mm x 33mm (H x W x D)
    Environment
    Operating Temperature -25℃ ~ +75℃
    Storage Temperature -30℃ ~ +80℃
    Humidity 10 ~ 90% RH, non-condensing


    Ordering Information
    EIP-2060 CR
    		 Isolated 6-ch DI & 6 Relay Output EtherNet/IP I/O Module


    Optional Accessories
    MSM-6226 CR 24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media (RoHS)
    NS-205 CR Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
    NS-205PSE CR Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
    NS-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch; 24 VDC Input
    NSM-205PSE-24V CR Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing; 24 VDC Input
